Hi-Target HTS-820 Robotic Total Station
The Hi-Target HTS-820 is a robotic total station designed for efficient one-person surveying in construction sites, rough terrain and other demanding field environments. It combines hybrid prism tracking, intelligent imaging technology and automated stationing functions to reduce manual setup and improve field productivity.
The HTS-820 uses AI-assisted prism search and hybrid tracking to maintain target acquisition when the prism is temporarily blocked. Its imaging-based stationing system can automatically calculate instrument height with accuracy up to 1 mm, while the pole control system allows remote operation from up to 600 m. RTKSurvey.com supplies the Hi-Target HTS-820 for professional surveying and engineering projects.
Key Features
Robotic total station designed for one-person surveying
Hybrid tracking system for reliable prism acquisition
AI-assisted prism search for efficient target detection

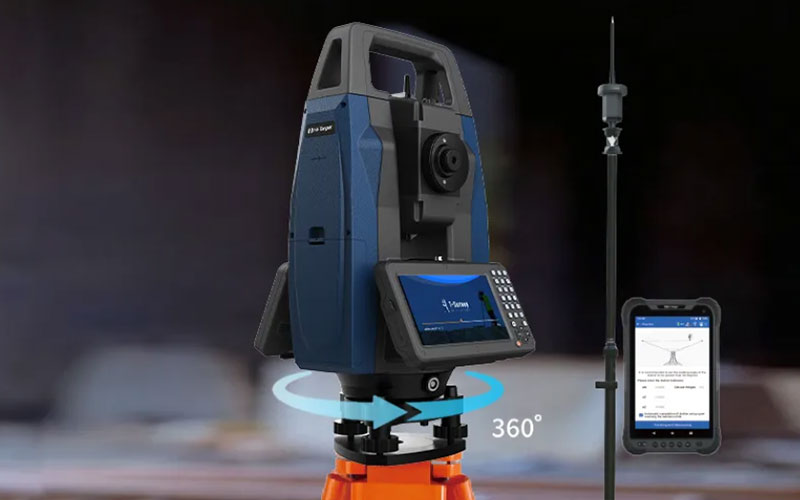

360° Super Search for prism search from 20–300 m
AI Search for close-range prism detection up to 20 m
Imaging-based stationing with instrument height calculation

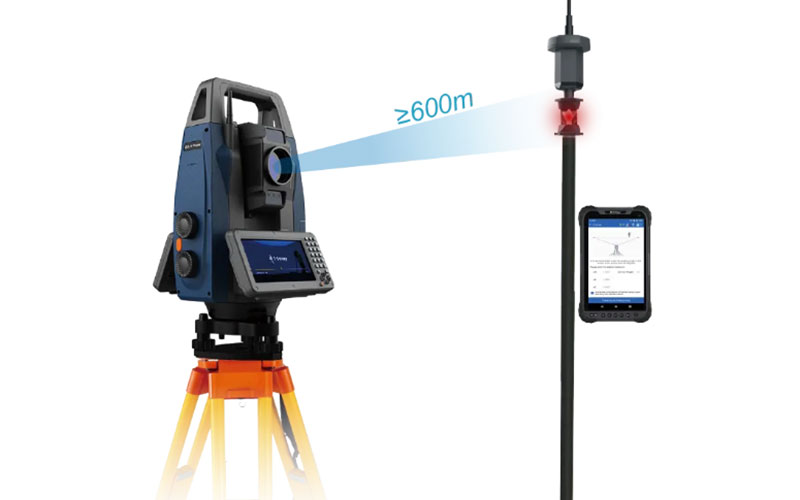

Pole control system for remote operation up to 600 m
Intelligent imaging technology for more efficient field setup
5.5-inch touch screen
Dual 2 MP cameras
Qualcomm processor with 3 GB RAM and 32 GB storage
Wireless communication
Up to 180°/s maximum rotation speed
Why Choose the Hi-Target HTS-820?
The HTS-820 is a strong choice for survey teams looking to reduce the manpower required for routine total station work. Its robotic tracking and remote pole control allow one surveyor to handle measurements and stakeout tasks while remaining close to the survey point.
The combination of hybrid tracking, AI prism search and image-based stationing also makes the HTS-820 particularly useful on construction sites and uneven terrain, where conventional setup and prism reacquisition can slow down field work.
For contractors and engineering teams that value productivity as much as measurement capability, the HTS-820 provides a modern robotic workflow without requiring a separate operator at the instrument.
Core Specifications
Model: HTS-820
Type: Robotic Total Station
Maximum Rotation Speed: 180°/s
Reversing Time: ≤3.5 s
Control Positioning Accuracy: ≤2″
Prism Search: 360° Super Search and AI Search
Super Search Range: 20–300 m
AI Search Range: Up to 20 m
Image-Based Stationing Accuracy: Up to 1 mm
Pole Control Range: Up to 600 m
Pole Control Unit Weight: Approx. 400 g
Pole Control Battery Life: Up to 10 hours
Display: 5.5-inch touch screen
Cameras: 2 × 2 MP
RAM: 3 GB
Storage: 32 GB
Protection: IP65
Wireless Connection: Supported

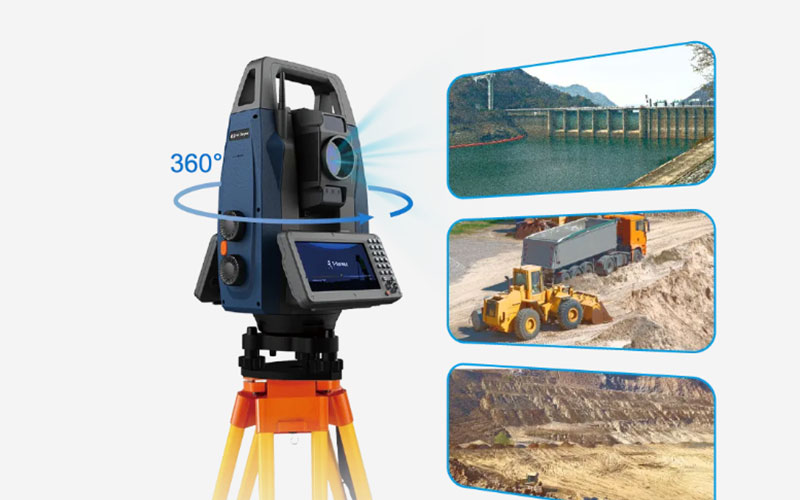

Applications
One-person surveying
Construction surveying
Building layout
Construction stakeout
Engineering surveying
Road and infrastructure projects
Rough-terrain surveying
Topographic surveying
Large construction sites
General robotic total station applications
