Hi-Target HTS-720 Android Total Station
The Hi-Target HTS-720 is an Android total station designed to bring a more intuitive digital workflow to surveying, construction layout and stakeout. It combines a 5.5-inch HD touchscreen, Android operating system, built-in 8 MP camera and dedicated T-Survey software for efficient field measurement.
With reflectorless measurement up to 1000 m and prism measurement up to 6000 m under stated conditions, the HTS-720 provides flexible distance measurement for a wide range of surveying tasks. Its CAD stakeout interface allows users to select points and lines directly from imported drawings, while visual guidance and image recording support more efficient field work. RTKSurvey.com supplies the Hi-Target HTS-720 for surveying and engineering applications.
Key Features
Android-based total station platform
5.5-inch HD color touchscreen

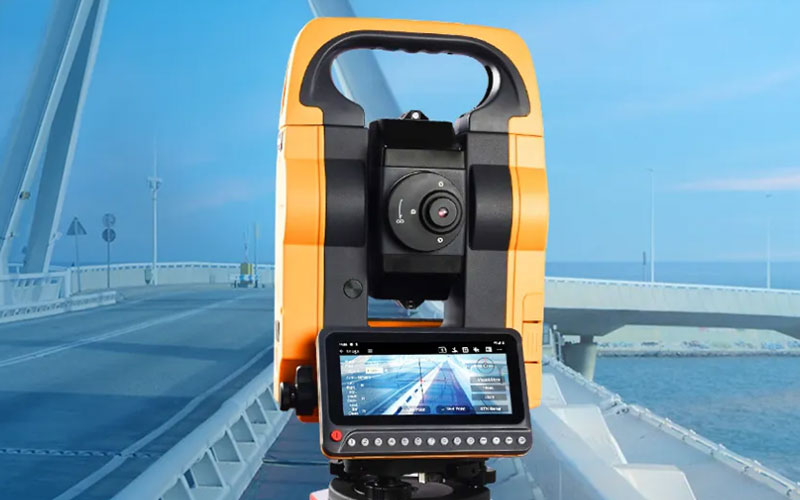

Built-in 8 MP camera for visual guidance and image recording

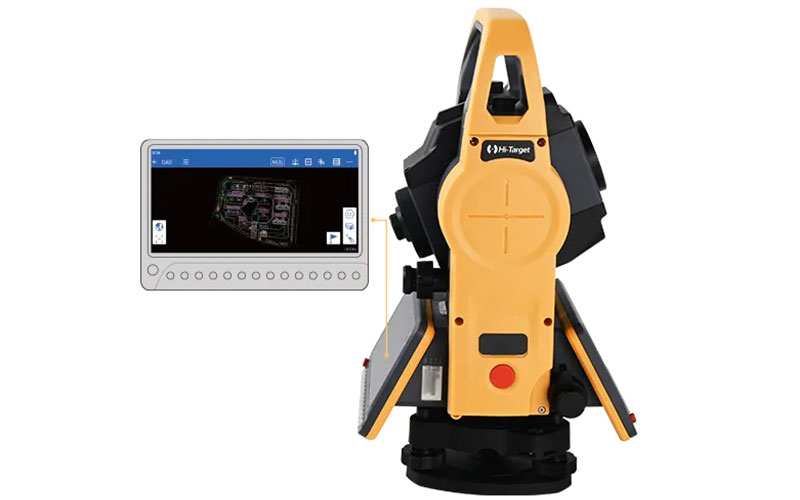

CAD point and line stakeout

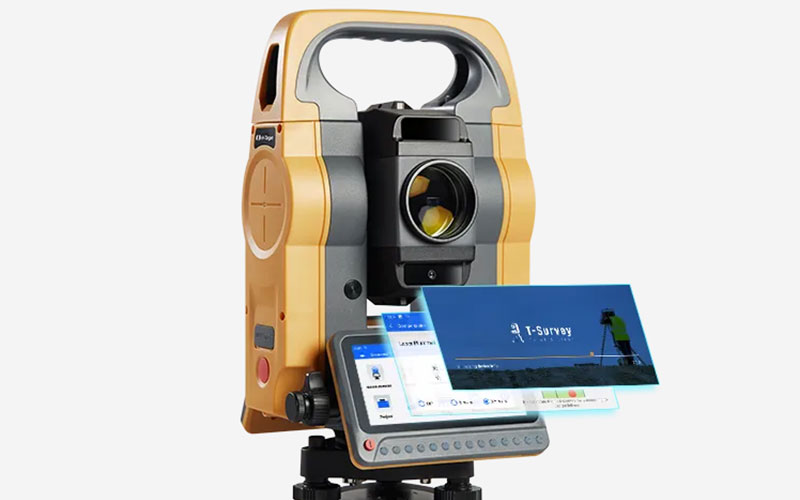

Android T-Survey measurement software
Reflectorless measurement up to 1000 m
Prism measurement up to 6000 m under stated conditions
1″ or 2″ angle accuracy options
Dual-axis integrated compensator
Automatic instrument height calculation
Graphical electronic bubble guidance
Type-C, TF card and RS232 interfaces
Dual-band 2.4 GHz WLAN
Why Choose the Hi-Target HTS-720?
The HTS-720 is designed for surveyors who want a more modern interface without moving to a fully robotic total station. Its large touchscreen and Android operating system make common measurement and stakeout tasks easier to access, while the built-in camera adds visual assistance to field workflows.
The combination of CAD stakeout, image recording and dedicated Android surveying software is particularly useful for construction and engineering projects where digital drawings and field measurement need to work together. The HTS-720 therefore offers a practical step up from conventional keypad-operated total stations.
Core Specifications
Model: HTS-720
Type: Android Total Station
Operating System: Android
Angle Accuracy: 1″ / 2″ optional
Minimum Angle Readout: 0.1″
Telescope Magnification: 30×
Compensator: Dual-axis
Compensator Working Range: ±6′
Compensator Accuracy: 1″
Prism Range: 5000 m general / 6000 m under good conditions
Prism Distance Accuracy: 2 mm + 2 ppm
Reflectorless Range: 1000 m
Reflectorless Distance Accuracy: 3 mm + 2 ppm
Display: 5.5-inch, 720 × 1440 touchscreen
Camera: 8 MP
Memory: 2 GB RAM / 16 GB ROM
Wireless: 2.4 GHz dual-band WLAN
Interfaces: Type-C, TF Card, RS232
Protection: IP65
Operating Temperature: -20°C to +50°C
Applications
Construction surveying
Building layout
CAD stakeout
Road surveying
Bridge surveying
Tunnel surveying
Topographic surveying
Engineering surveying
Point recording and documentation
General land surveying
