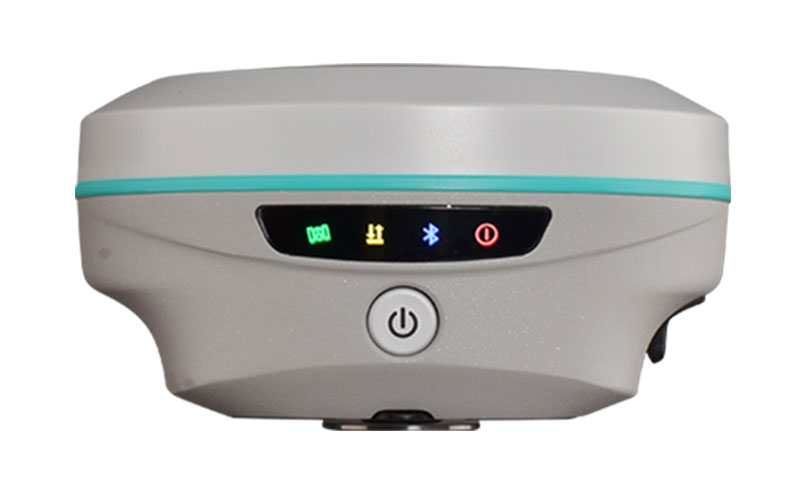

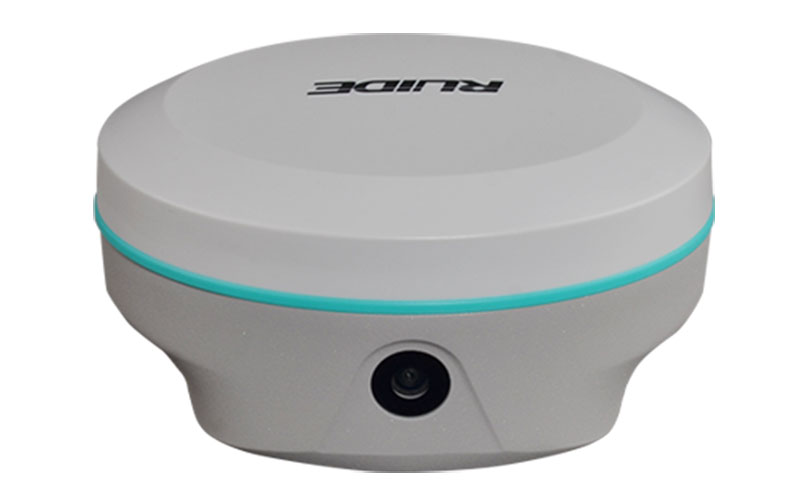

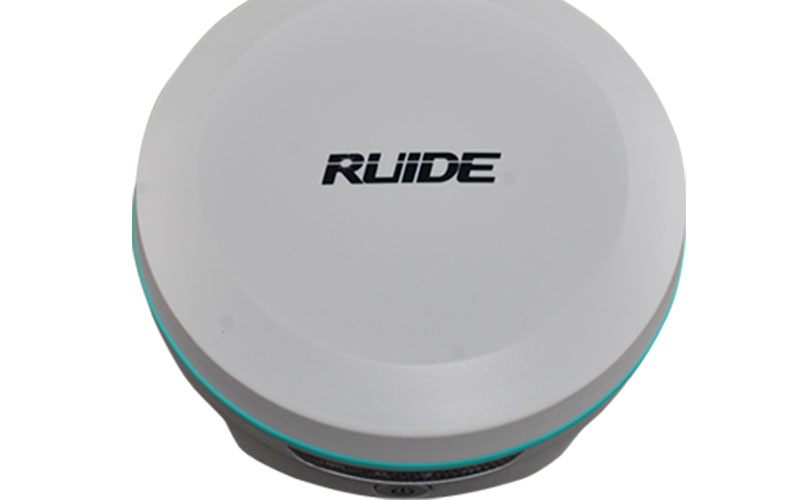

RUIDE RENO3 Visual GNSS RTK Receiver
The RUIDE RENO3 is a pocket-sized GNSS RTK receiver designed for surveyors who want a lightweight field instrument with integrated visual surveying functions. Its front and bottom cameras support AR stakeout of points, lines and curves, while the optional visual positioning function allows coordinates to be obtained from photos or video without directly occupying every target.
The receiver uses a fifth-generation calibration-free IMU designed to remain available while the surveyor rotates the pole, walks between points or changes the receiver attitude. Combined with RUIDE RTK GO software, RENO3 provides a compact workflow for everyday surveying, construction layout and visual measurement.
RTKSurvey.com supplies the RUIDE RENO3 for portable surveying, construction stakeout, GIS fieldwork and visual measurement applications.
Key Features:
Pocket-sized GNSS RTK receiver
Dual-camera AR stakeout
Supports point, line and curve stakeout
Optional visual positioning for non-contact measurement
Fifth-generation calibration-free IMU
Designed for continuous IMU availability during field movement
Supports photo and video-based measurement workflows
RTK GO software with CAD stakeout and visual positioning functions
Core Specifications:
GNSS channels: 1698
Cameras: front and bottom dual-camera system
IMU: fifth-generation calibration-free IMU
Positioning output rate: 1–20 Hz
AR stakeout: points, lines and curves
Visual positioning: optional
Weight: approximately 540 g
Size: approximately 105 × 58 mm
RTK operating time: up to 20 hours
L-band services: Galileo HAS and BDS PPP
Applications:
Land surveying
Topographic surveying
Construction stakeout
CAD stakeout
GIS field data collection
Visual point measurement
Non-contact surveying
Road and infrastructure surveying
Portable field surveying
