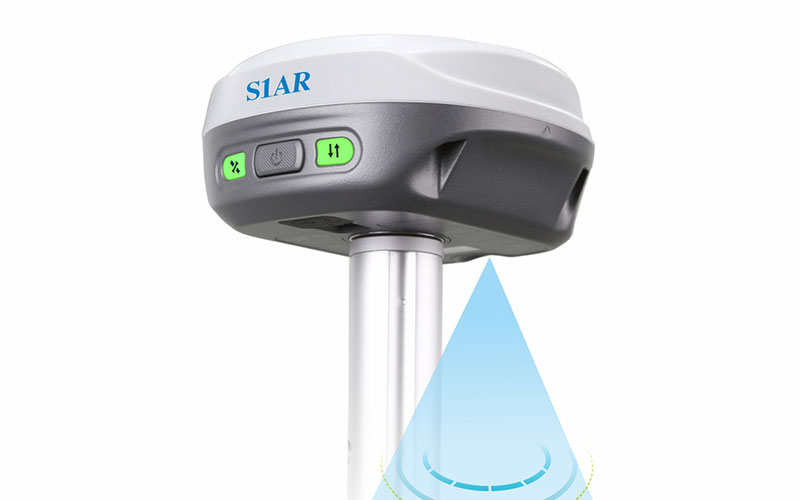

Stonex S1 AR GNSS Receiver

The Stonex S1 AR is a lightweight GNSS RTK receiver developed for surveyors who need both conventional positioning and visual assistance during field work. Its 1408-channel GNSS engine is combined with IMU tilt measurement and an integrated camera for AR-based stakeout.

At approximately 380 g, the receiver is particularly suited to field teams that value portability during repeated point measurement and construction layout.

RTKSurvey.com supplies the Stonex S1 AR for cadastral, construction, engineering and general GNSS surveying applications.

Key Features

• 1408-channel multi-constellation GNSS tracking
• Fourth-generation IMU tilt surveying up to 60°
• Integrated camera for AR stakeout
• Visual guidance for point layout
• Integrated UHF radio
• 4G cellular connectivity
• Bluetooth and Wi-Fi communication
• Lightweight 380 g receiver body
• IP67 protection

Core Specifications

GNSS Channels: 1408
RTK Accuracy: H ±8 mm + 1 ppm; V ±15 mm + 1 ppm
Static Accuracy: H ±2.5 mm + 0.5 ppm; V ±5 mm + 0.5 ppm
IMU Tilt: Up to 60°
Camera: 2 MP
UHF Frequency: 410–470 MHz
Cellular Communication: 4G
Connectivity: Bluetooth and Wi-Fi
Storage: 8 GB
Weight: Approximately 380 g
Protection Rating: IP67

Applications

• Construction stakeout
• Cadastral surveying
• Road layout
• Engineering surveying
• Visual RTK surveying
• Utility surveying
• Topographic data collection
