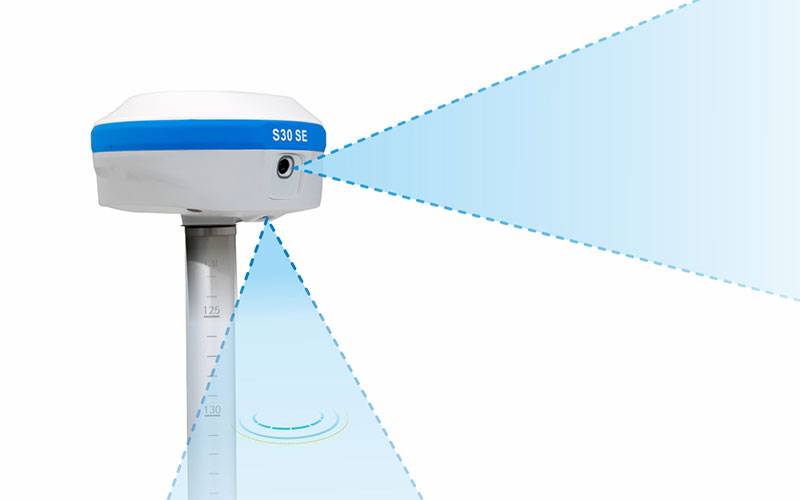

Stonex S30 SE GNSS RTK Receiver

The Stonex S30 SE is a compact GNSS RTK receiver designed for surveying and construction field work. It combines multi-constellation GNSS positioning with IMU tilt measurement, camera-assisted AR stakeout and wireless communication, giving surveyors more flexibility when measuring points that are difficult to occupy directly.

With its integrated UHF radio and 4G connectivity, the S30 SE can be used in both conventional RTK base-rover workflows and network RTK projects.

RTKSurvey.com supplies the Stonex S30 SE for professional surveying, construction layout and positioning applications.

Key Features

• 1408-channel multi-constellation GNSS tracking
• IMU tilt surveying up to 60°
• Laser-assisted AR stakeout
• Dual-camera visual surveying functions
• Integrated UHF radio
• 4G network connectivity
• Supports RTK and network RTK workflows
• Compact design for field surveying
• Compatible with professional surveying software

Core Specifications

GNSS Channels: 1408
RTK Accuracy: H ±8 mm + 1 ppm; V ±15 mm + 1 ppm
Static Accuracy: H ±2.5 mm + 0.5 ppm; V ±5 mm + 0.5 ppm
IMU Tilt: Up to 60°
UHF: Integrated radio
Cellular Communication: 4G

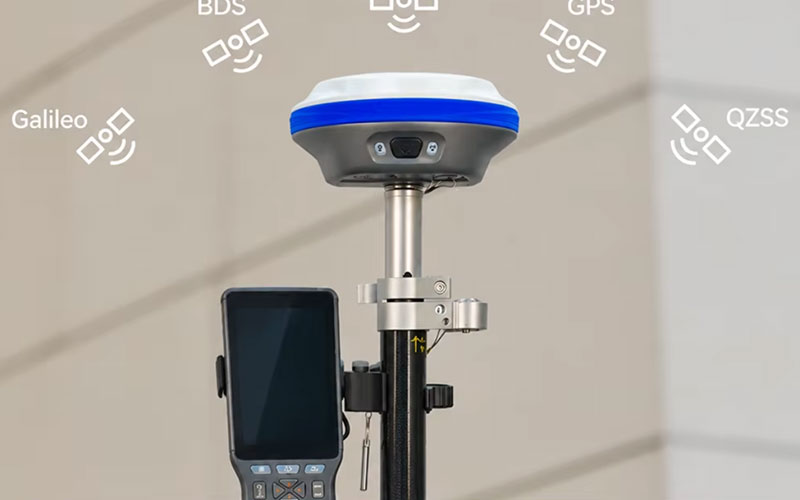

Satellite Systems: GPS, GLONASS, BeiDou, Galileo, QZSS and SBAS
Applications: RTK surveying, AR stakeout and field data collection

Applications

• Topographic surveying
• Construction surveying
• Engineering stakeout
• Cadastral surveying
• Building and infrastructure projects
• Road surveying
• Utility and field mapping
