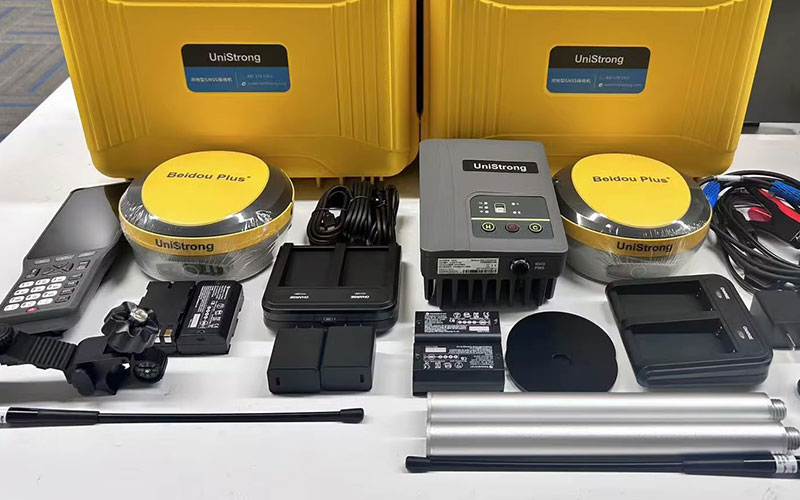

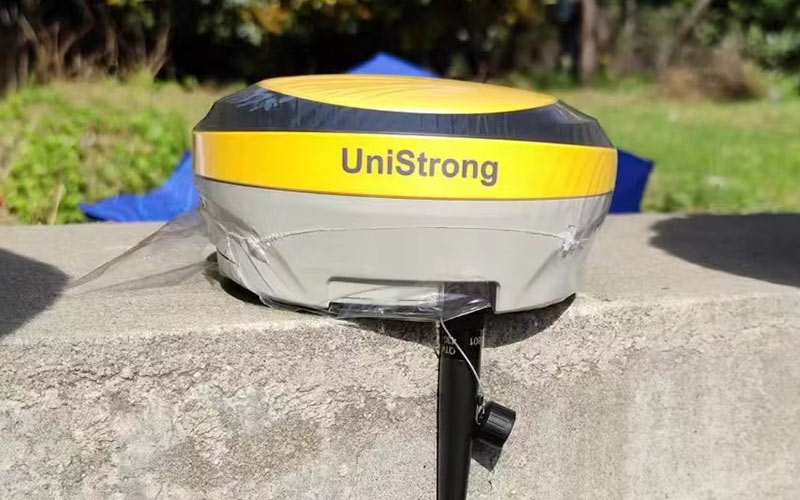

Unistrong G970II Pro GNSS RTK GPS Receiver

The Unistrong G970II Pro is a professional GNSS RTK receiver built around an 800-channel positioning platform with integrated IMU tilt surveying and internal UHF radio communication. Its 60° tilt capability is designed to simplify point measurement without requiring conventional pole leveling, while the dual-battery configuration supports extended field operation. RTKSurvey.com supplies the G970II Pro for surveying and engineering applications.

Key Features

• 800-channel multi-constellation GNSS tracking
• 60° IMU tilt surveying with approximately 2 cm accuracy at 60°
• 400 Hz IMU update rate
• Integrated adjustable 1 W / 2 W UHF radio
• Dual removable batteries with hot-swapping support
• Intelligent base displacement alerts
• 16 GB internal storage
• IP68 protection

Core Specifications

GNSS Channels: 800
RTK Accuracy: H 8 mm + 1 ppm, V 15 mm + 1 ppm
Static Accuracy: H 2.5 mm + 1 ppm, V 5 mm + 1 ppm
Tilt Surveying: Up to 60°
Tilt Accuracy: Approx. 2 cm at 60°
IMU Update Rate: 400 Hz
Update Rate: 10 Hz standard, 20 Hz / 50 Hz available by authorization
Internal Radio: 1 W / 2 W adjustable
Battery: Dual removable batteries
Rover Working Time: Approx. 9 hours with UHF
Internal Memory: 16 GB
Weight: Approx. 1.2 kg
Protection: IP68
Operating Temperature: -45°C to +75°C

Applications

• Land surveying
• Construction surveying
• Engineering measurement
• Topographic surveying
• RTK stakeout
• Road and infrastructure projects
• General base-and-rover field operations
