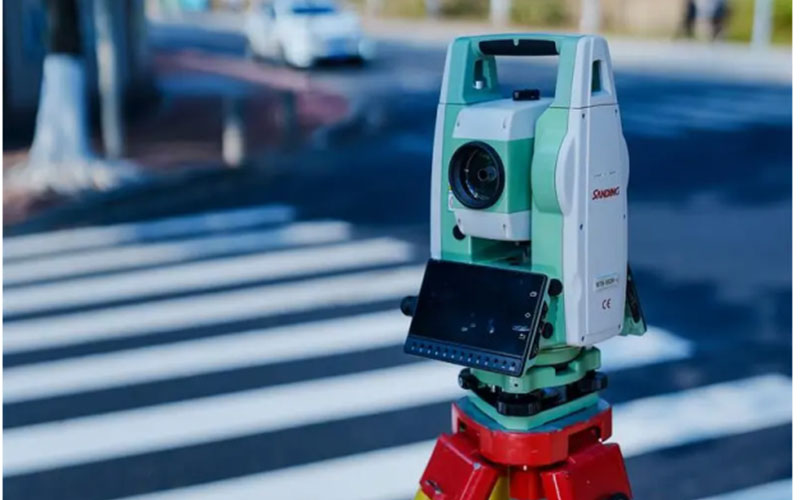

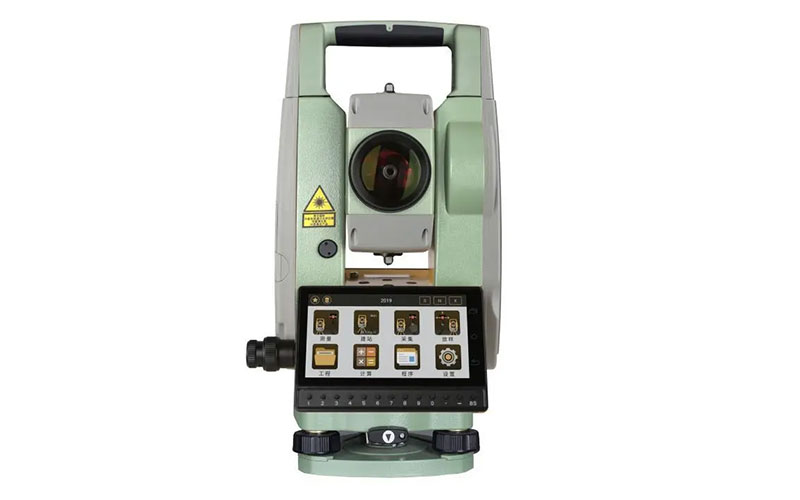

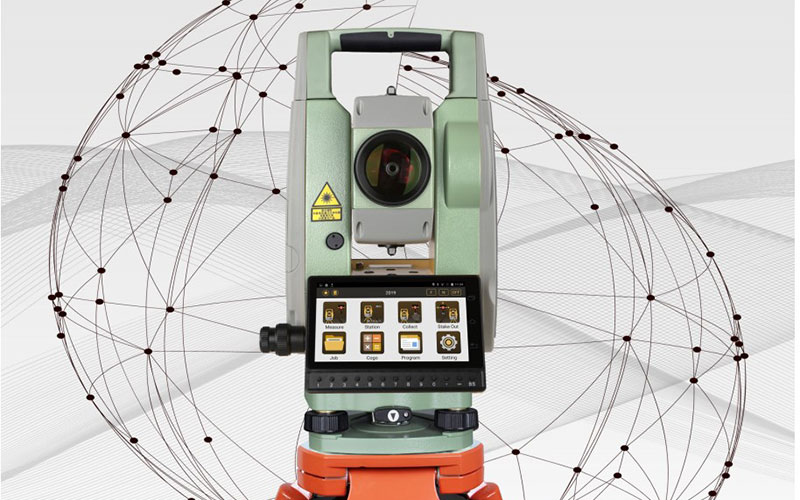

SANDING ARC10 Total Station

The SANDING ARC10 is an Android-powered total station designed for modern surveying, construction and engineering applications. It combines 2″ angular accuracy with a dual laser EDM system, providing fast and stable distance measurement for both prism and reflectorless surveying.

The ARC10 can measure up to 5000 m with a prism, while reflectorless measurement is available in configurations of up to 1000 m, 1500 m or 2000 m. Its 5-inch color touchscreen, Android operating system, 4G connectivity and wireless communication interfaces provide a more flexible field workflow than traditional conventional total stations.

Key Features

2″ angle accuracy
Dual laser EDM technology
Up to 5000 m prism measurement
Up to 2000 m reflectorless measurement, optional
30× telescope
Android operating system
5-inch color touchscreen
13-key numeric keypad
Dual-axis compensation
Coaxial laser pointer
USB Type-C and TF card support
Bluetooth and WLAN
4G connectivity
Up to 15 hours of operation
IP66 protection

Why Choose the SANDING ARC10?

The SANDING ARC10 is designed for surveyors who want the measurement capability of a conventional total station combined with the operating flexibility of an Android-based field controller. Its dual laser EDM is designed to provide strong target response and efficient reflectorless measurement.

The integrated 5-inch touchscreen and Android system make it easier to work with graphical surveying applications and third-party software. With 4G, WLAN, Bluetooth and USB connectivity, survey data can also be transferred through different field and office workflows.

For projects involving topographic surveying, construction layout, road work and engineering measurement, the ARC10 offers a combination of long-range EDM, modern software capability and rugged field operation.

Core Specifications

Angle Accuracy: 2″
Telescope Magnification: 30×
Prism Range: Up to 5000 m
Reflectorless Range: 1000 m / 1500 m / 2000 m optional
Prism Distance Accuracy: ±(2 mm + 2 ppm × D)
Reflectorless Distance Accuracy: ±(2 mm + 2 ppm × D), depending on configuration
Measurement Time: Fine 0.3 s, tracking 0.1 s
Compensation: Dual-axis liquid-electric compensation
Display: 5-inch TFT LCD touchscreen, 720 × 1280
Operating System: Android 6.0
Memory: 3 GB RAM + 32 GB ROM
Communication: 4G, WLAN, Bluetooth, USB Type-C, TF card
Laser Plummet: Built-in
Battery: Lithium-ion, 7.4 V
Operating Time: Up to 15 hours
Protection: IP66
Operating Temperature: -20°C to +50°C
