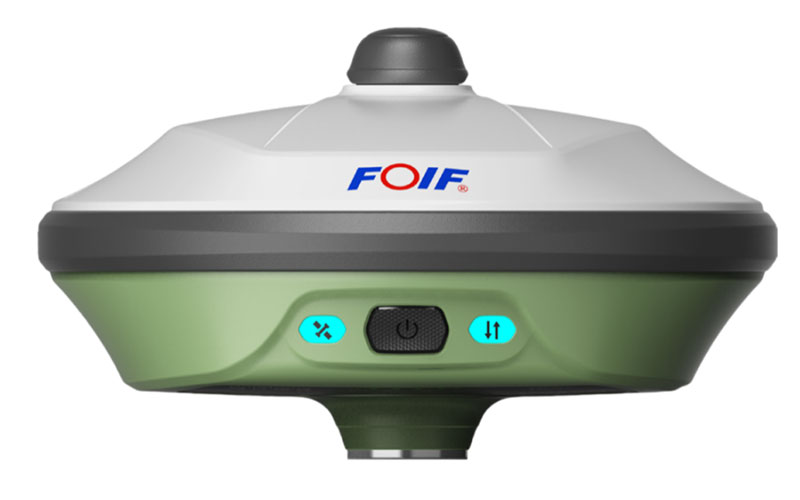

FOIF A70AR AR GNSS RTK Receiver

The FOIF A70AR is an AR-enabled GNSS RTK receiver designed for surveying and stakeout applications. It combines 1408-channel multi-constellation positioning with camera-based AR guidance, allowing surveyors to view field scenes and stakeout information together during construction and engineering work. The system also supports high-precision RTK positioning and IMU-based field measurement. RTKSurvey.com supplies the FOIF A70AR for professional surveying projects.

Key Features

• 1408-channel GNSS positioning
• Multi-constellation and multi-frequency signal reception
• Camera-based AR surveying and stakeout
• 2 MP visual camera
• 88° field of view
• 1–3 cm AR stakeout accuracy
• High-sensitivity imaging for low-light field conditions
• RTK and static positioning for high-precision surveying
• 4G communication
• Android-based P9IV field controller support

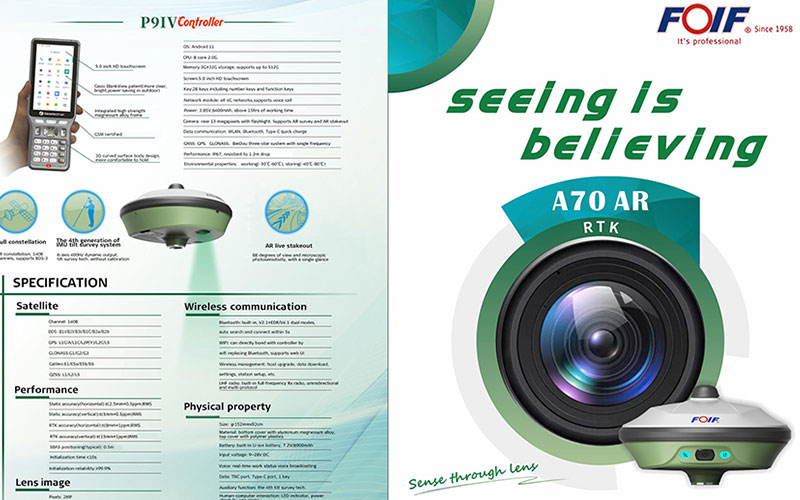

Core Specifications

GNSS Channels: 1408
RTK Accuracy: H ±8 mm + 1 ppm, V ±15 mm + 1 ppm
Static Accuracy: H ±2.5 mm + 0.5 ppm, V ±5 mm + 0.5 ppm
AR Camera: 2 MP
Camera FOV: 88°
AR Stakeout Accuracy: Approx. 1–3 cm
Initialization Time: Less than 10 seconds
Initialization Reliability: Above 99.9%
Communication: 4G
Controller: FOIF P9IV
Operating System of P9IV: Android 11
P9IV Display: 5.0 inches
P9IV Battery: 6400 mAh
P9IV Working Time: At least 15 hours

Applications

• Construction stakeout
• Engineering surveying
• Topographic surveying
• Building layout
• AR-assisted point stakeout
• Road and infrastructure projects
• General RTK surveying
