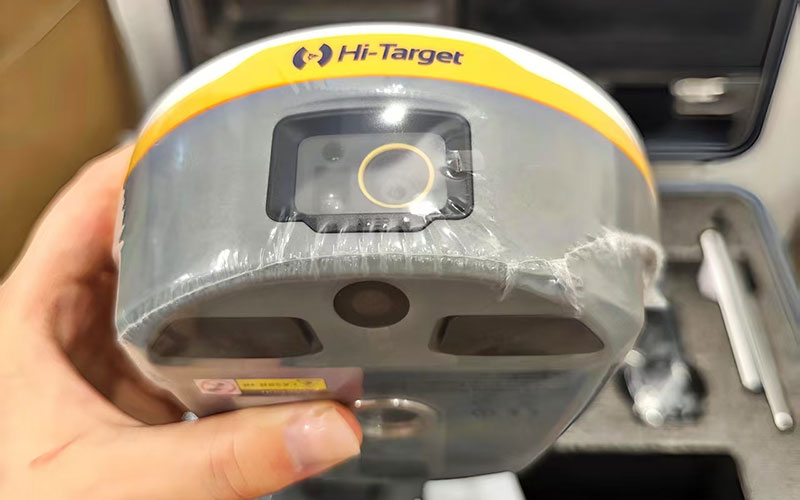

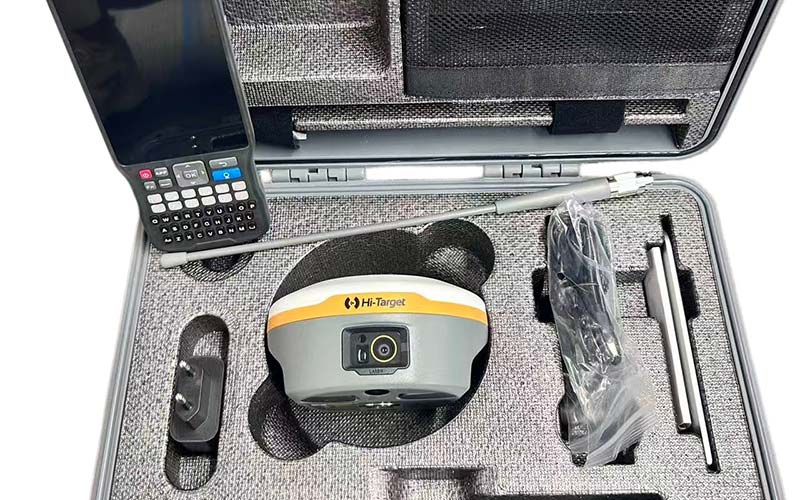

Hi-Target V600L Laser GNSS RTK Receiver

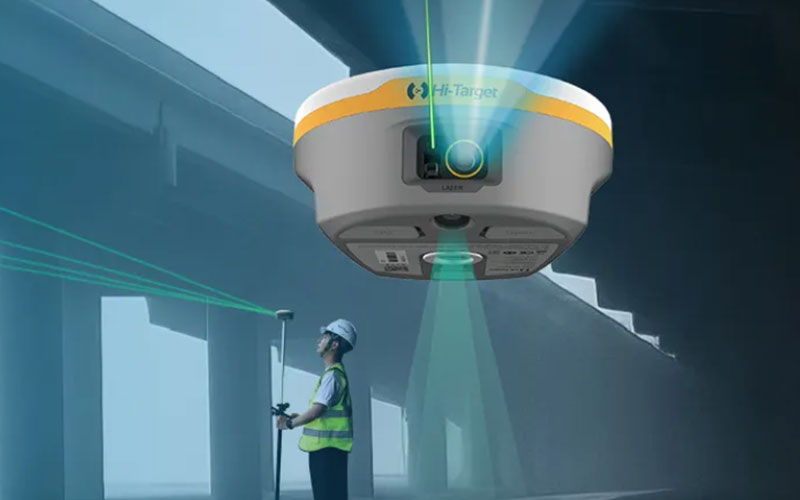

The Hi-Target V600L is a laser GNSS RTK receiver designed for non-contact surveying where conventional pole-based measurement is difficult or unsafe. It combines GNSS positioning with laser measurement, visual targeting and an automotive-grade IMU, allowing surveyors to collect points from a distance.
V600L is particularly suited to locations such as areas beneath bridges, fenced zones, ditches and other partially obstructed environments. Its integrated LoRa radio provides a working range of more than 15 km in typical conditions, while CAD real-scene 3D stakeout adds visual guidance to construction layout workflows.
RTKSurvey.com supplies the Hi-Target V600L for engineering, construction, infrastructure and complex-site surveying applications.
Key Features:
GNSS RTK combined with laser measurement
Non-contact measurement of difficult-to-access points
Visual laser targeting
Automotive-grade IMU with no initialization required
Laser and visual measurement in GNSS-denied environments
Built-in LoRa communication with over 15 km working range
CAD real-scene 3D stakeout
Designed for safer remote point measurement
Core Specifications:
GNSS channels: 1408
Satellite systems: BDS, GPS, GLONASS, Galileo, QZSS, NavIC, SBAS and PPP
Tilt survey accuracy: H 8 mm + 0.7 mm/°; V 15 mm + 0.7 mm/°
Laser measurement accuracy: RMS ≤3 cm at 5 m; RMS ≤5 cm at 10 m
Image stakeout accuracy: 2 cm
Laser range: 0.1–40 m at 10% reflectivity; 0.1–70 m at 80% reflectivity
Communication: built-in LoRa
LoRa working range: over 15 km in typical conditions
Storage: 64 GB
Applications:
Non-contact surveying
Construction surveying
Bridge and under-bridge measurement
Road and infrastructure surveying
Fence and ditch measurement
Engineering surveying
GNSS-denied point measurement
Remote construction layout
Complex terrain surveying
Related Products:
Why Choose the Hi-Target V600L？
The V600L extends conventional RTK surveying with laser-assisted and image-based measurement. Instead of relying only on direct pole access, surveyors can use visible laser targeting and non-contact measurement for selected difficult points. This makes the V600L a specialized option for projects involving obstacles, restricted access and complex field environments.
