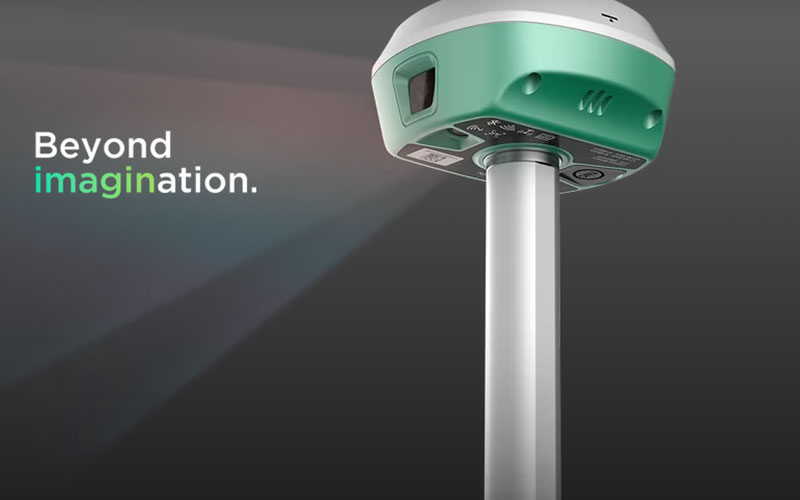

STEC SDc Visual GNSS RTK Receiver

The STEC SDc Visual GNSS RTK Receiver is an ultra-compact GNSS receiver designed for visual surveying and AR-assisted stakeout. Its dual-camera system works together with a 120° IMU to provide visual guidance for point and CAD-based stakeout in the field.

Despite its compact size, the SDc provides 1,808 GNSS channels and integrated wireless communication for professional surveying workflows. Its AR CAD Stakeout function can overlay design information onto the live site view, helping surveyors transfer digital designs to physical locations. RTKSurvey.com supplies the STEC SDc for surveying, construction and engineering applications.

Key Features

• 1,808-channel GNSS positioning
• Ultra-compact and lightweight design
• Dual high-definition cameras
• 120° high-precision IMU
• AR stakeout
• AR CAD stakeout
• Visual guidance for points, lines and layouts
• 1 W internal radio
• IP68 protection
• Designed for mobile field surveying

Core Specifications

GNSS Channels: 1,808
GNSS Positioning: Multi-constellation GNSS RTK
IMU: 120° high-precision IMU
Cameras: Dual cameras
Visual Functions: AR stakeout and AR CAD stakeout
Internal Radio Output: 1 W
Protection: IP68
Form Factor: Ultra-compact pocket-sized receiver

Applications

• Construction layout
• Engineering surveying
• AR point stakeout
• CAD-based stakeout
• Topographic surveying
• Building and site layout
• Infrastructure projects
• Field point collection
• Surveying where compact equipment is preferred
