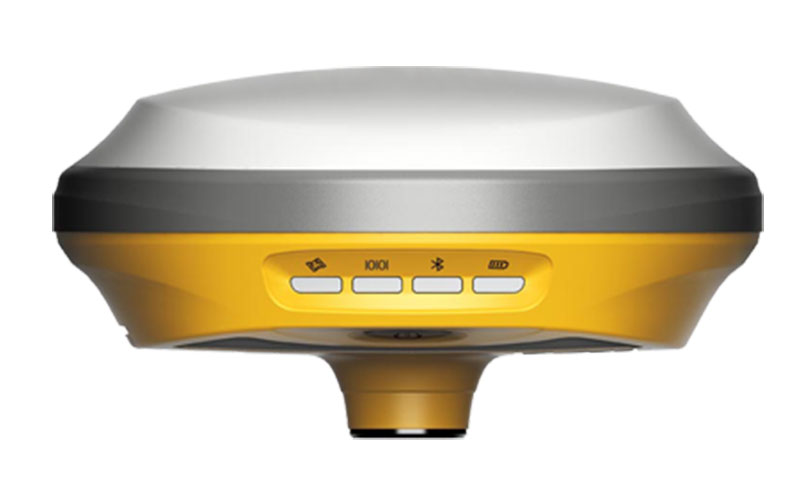

Unistrong E100 Network RTK Receiver

The Unistrong E100 is a compact network RTK receiver designed for CORS-based surveying and other field positioning applications. It supports multi-constellation GNSS, 60° dynamic tilt surveying and Atlas L-band positioning services. The receiver also includes RTK Aid, Web UI access and intelligent voice status notifications for practical field operation. RTKSurvey.com supplies the Unistrong E100 for professional surveying and positioning projects.

Key Features

• 800-channel GNSS tracking for multi-constellation and multi-frequency positioning
• 60° MEMS tilt surveying for measuring points without leveling the pole
• Atlas L-band support for positioning services where applicable
• RTK Aid helps maintain positioning continuity when RTK corrections are temporarily unavailable
• Web UI for receiver status, settings, data download and firmware updates
• Compact magnesium-alloy housing with IP67 protection
• Built-in 6800mAh battery

Core Specifications

GNSS Channels: 800
RTK Accuracy: H 8 mm + 1 ppm, V 15 mm + 1 ppm
Static Accuracy: H 2.5 mm + 0.1 ppm, V 3.5 mm + 0.4 ppm
Tilt Surveying: Up to 60°
L-Band: Atlas H10 / H30 / Basic
Update Rate: 10 Hz standard, up to 50 Hz
Internal Memory: 8 GB
Battery: 6800 mAh
RTK Working Time: Up to 10 hours
Static Working Time: Up to 14 hours
Weight: Approx. 900 g
Protection: IP67
Operating Temperature: -40°C to +65°C

Applications

• CORS-based land surveying
• Construction and engineering surveying
• Topographic data collection
• Stakeout and point measurement
• Machine and vehicle positioning
• Field mapping and general GNSS surveying
