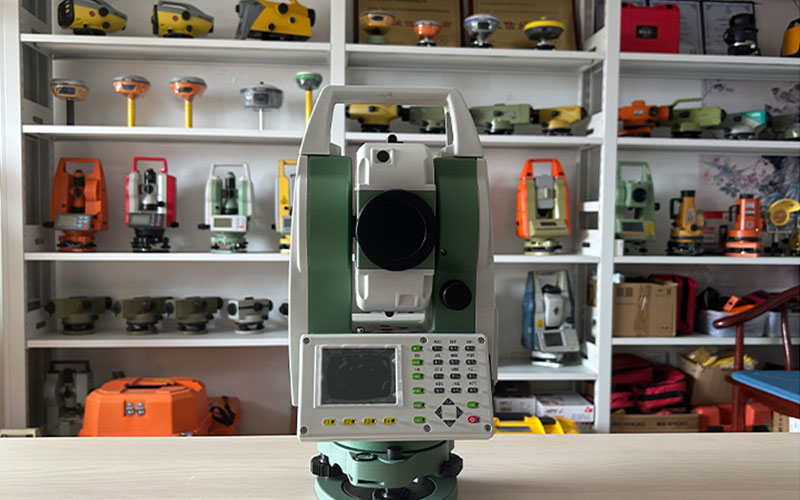

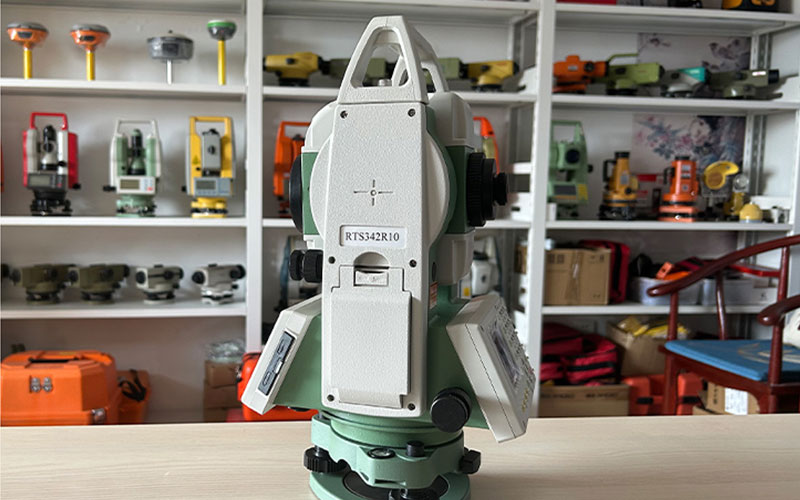

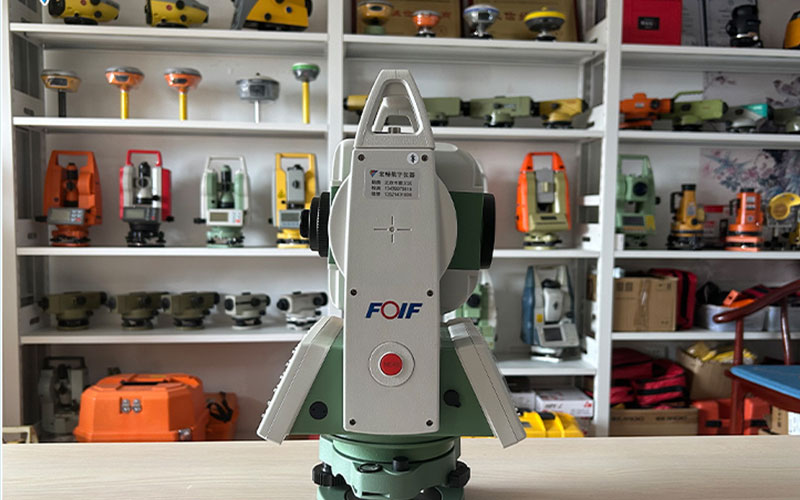

FOIF RTS342 Reflectorless Total Station
The FOIF RTS342 is a 2″ reflectorless total station designed for construction, topographic and engineering surveying. It combines long-range reflectorless measurement with practical onboard surveying functions and a color display for efficient field operation.
Depending on the EDM configuration, the RTS342 supports reflectorless measurement up to 600 m or 1000 m and prism measurement up to 5000 m.
The instrument includes applications for surveying, stakeout, free station, COGO, area and volume calculation, remote height measurement and road-related field work.
RTKSurvey.com supplies the FOIF RTS342 for professional surveying and construction projects.
Key Features
2″ angle accuracy
30× telescope
Reflectorless measurement up to 600 m or 1000 m
Prism measurement up to 5000 m
Highlighted color display
Dual-axis compensator
Surveying and stakeout functions
COGO and area calculation
Remote height measurement
USB, RS-232C and optional Bluetooth
IP55 protection
Why Choose the FOIF RTS342?
The RTS342 is a practical conventional total station for everyday reflectorless surveying. Its 2″ accuracy provides a good balance between precision and field efficiency, while the long reflectorless range allows users to measure points that are difficult to reach with a prism.
Its onboard applications also cover many common surveying tasks, reducing the need for separate calculation tools during field work.
Core Specifications
Angle accuracy: 2″
Telescope magnification: 30×
Reflectorless range: up to 600 m or 1000 m
Prism range: up to 3000 m / 5000 m
Prism accuracy: 2 mm + 2 ppm
Compensator: Dual-axis
Compensation range: ±3′
Display: Color TFT display
Memory: 4GB
Battery: 3400mAh
Working time: over 8 hours
Protection rating: IP55
Applications
Construction surveying
Reflectorless surveying
Topographic surveying
Engineering surveying
Building layout
Stakeout
Road surveying
Area and volume measurement
General field data collection
