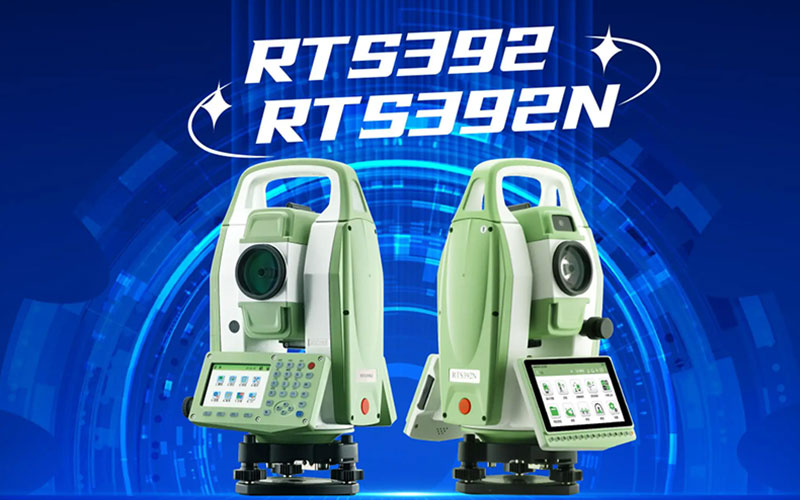

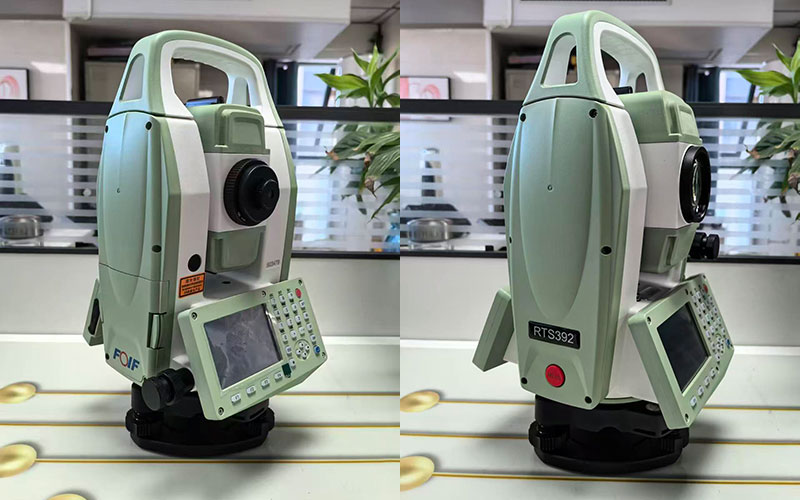

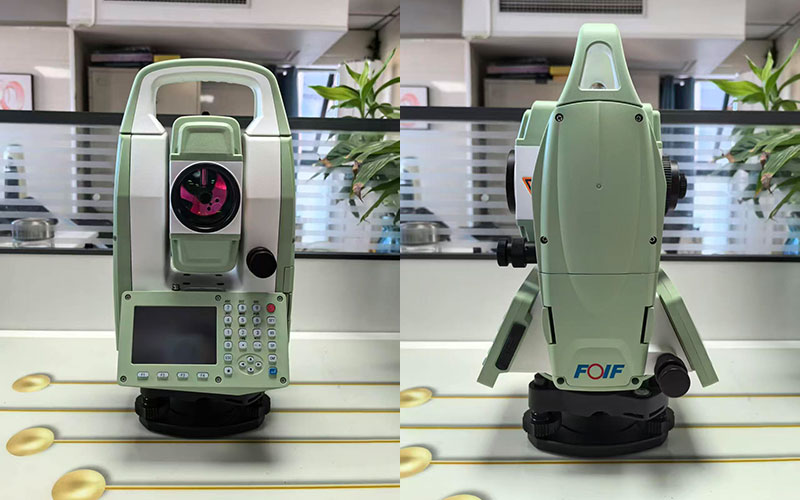

FOIF RTS392 Total Station
The FOIF RTS392 is a professional total station designed for land surveying, construction layout, topographic work and engineering measurement. It combines 2″ angle accuracy with long-range reflectorless and prism distance measurement in a practical field surveying platform.
The RTS392 supports reflectorless measurement up to 1000 m and prism measurement up to 5000 m. Its 30× telescope, color touchscreen and dual-axis compensator provide the essential functions required for accurate and efficient field surveying.
The instrument also provides multiple data interfaces, onboard data storage and automatic correction functions for temperature and air pressure.
RTKSurvey.com supplies the FOIF RTS392 for surveying contractors, construction companies and engineering projects.
Key Features
2″ angle accuracy
30× telescope
Reflectorless measurement up to 1000 m
Prism measurement up to 5000 m
3.5-inch color touchscreen
Dual-axis compensator
Up to 30,000 points of onboard storage
USB and Type-C data interfaces
Bluetooth communication
Automatic temperature and air pressure correction
IP55 protection
Why Choose the FOIF RTS392?
The RTS392 is designed for surveyors who need a practical 2″ total station with long-range reflectorless measurement. Its 1000 m reflectorless capability allows users to measure difficult or inaccessible points without setting up a prism, while prism measurement provides longer-range conventional surveying.
The color touchscreen and backlit controls support field operation, while the dual-axis compensation system helps maintain measurement reliability during everyday surveying.
For users looking for a 2″ FOIF total station with 1000 m reflectorless measurement, the RTS392 provides a strong balance of measurement capability and practical field operation.
Core Specifications
Angle accuracy: 2″
Telescope magnification: 30×
Reflectorless range: up to 1000 m
Prism range: up to 5000 m
Reflective sheet range: up to 1200 m
Distance accuracy: 2 mm + 2 ppm
Compensator: Integrated dual-axis
Compensation range: ±6′
Display: 3.5-inch color touchscreen
Data storage: up to 30,000 points
Communication: USB, Type-C, RS-232C, Bluetooth
Battery: Li-ion rechargeable
Protection rating: IP55
Applications
Land surveying
Topographic surveying
Construction surveying
Building layout
Road surveying
Cadastral surveying
Engineering measurement
Mining surveying
Infrastructure projects
