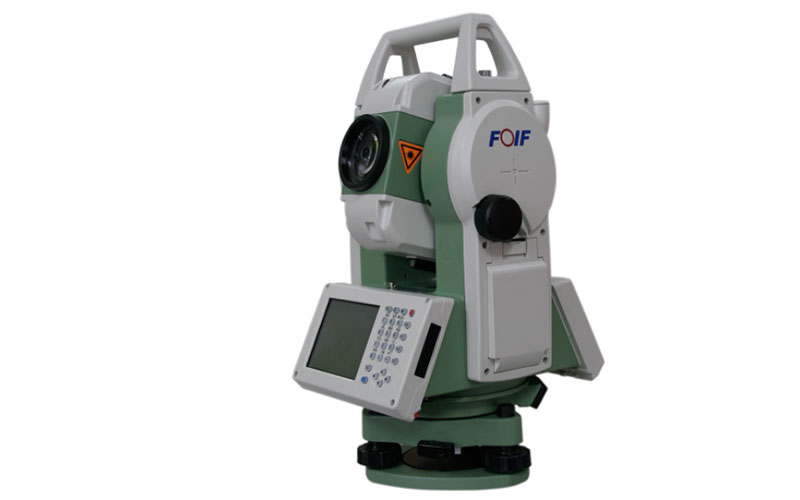

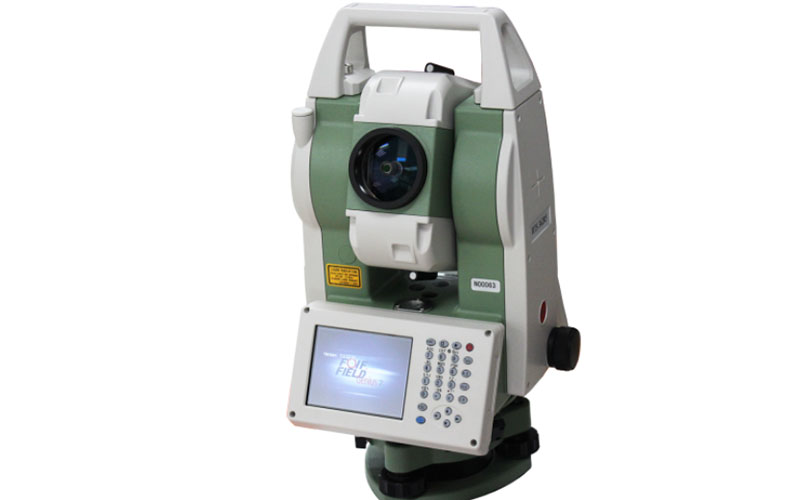

FOIF RTS362N Android Total Station
The FOIF RTS362N is a 2″ Android total station designed for construction surveying, topographic measurement and engineering field work. It combines Android 11 with a 5.5-inch touchscreen, long-range EDM and graphical surveying functions.
The RTS362N supports reflectorless measurement up to 1000 m and prism measurement up to 5000 m. Its Android platform supports SurPad and other surveying applications, while CAD graphical stakeout helps users work efficiently with digital project drawings.
RTKSurvey.com supplies the FOIF RTS362N for professional surveying and construction projects.
Key Features
2″ angle accuracy
Android 11 operating system
5.5-inch touchscreen
Reflectorless measurement up to 1000 m
Prism measurement up to 5000 m
CAD graphical stakeout
SurPad surveying software
4GB RAM + 32GB ROM
Wi-Fi, Bluetooth, USB and Type-C
Optional 4G communication
Dual-axis compensation
IP55 protection
Why Choose the FOIF RTS362N?
The RTS362N is suited to surveyors who want Android-based field operation with practical 2″ accuracy. Its large touchscreen and graphical stakeout functions make it convenient for construction and engineering projects that use digital CAD drawings.
Compared with the RTS010N, the RTS362N uses 2″ angular accuracy rather than 1″, making it a practical option for general surveying applications where extreme angular precision is not the primary requirement.
Core Specifications
Angle accuracy: 2″
Telescope magnification: 30×
Reflectorless range: 2–1000 m
Prism range: 2–5000 m
Reflective sheet range: 2–800 m
Compensator: Dual-axis
Compensation range: ±3′
Display: 5.5-inch touchscreen
Operating system: Android 11
CPU: Quad-core ARM Cortex-A55, 2GHz
Memory: 4GB RAM + 32GB ROM
Battery: 5200mAh
Working time: ≥8 hours
Protection rating: IP55
Applications
Construction surveying
CAD stakeout
Building layout
Topographic surveying
Engineering surveying
Road projects
Land surveying
Field data collection
