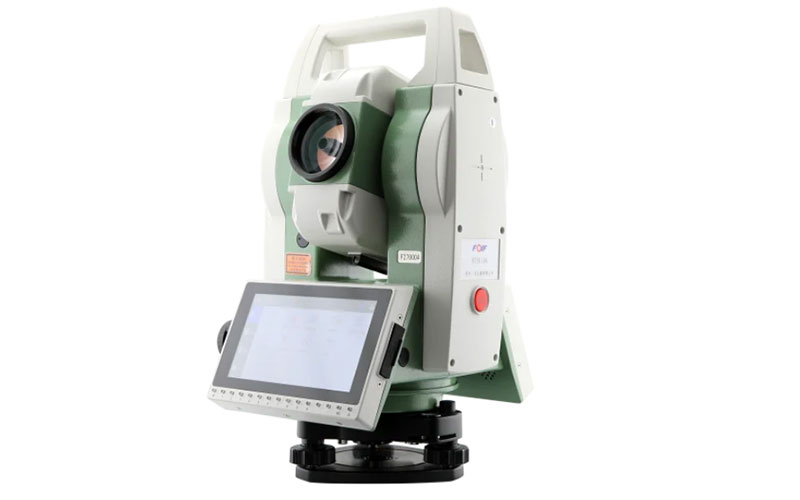

FOIF RTS010N Android Total Station
The FOIF RTS010N is a 1″ Android total station designed for modern surveying, construction layout and engineering applications. It combines high angular accuracy with Android 11, a large touchscreen and graphical surveying software.
The RTS010N provides reflectorless measurement up to 1000 m and prism measurement up to 5000 m. Its Android platform supports surveying applications and CAD graphical stakeout, helping surveyors work efficiently with digital project drawings in the field.
RTKSurvey.com supplies the FOIF RTS010N for professional surveying, construction and engineering projects.
Key Features
1″ angle accuracy
Android 11 operating system
5.5-inch 720P touchscreen
Reflectorless measurement up to 1000 m
Prism measurement up to 5000 m
CAD graphical stakeout
SurPad surveying software
Dual-axis compensator
4GB RAM + 32GB ROM
Bluetooth, Wi-Fi, USB and optional 4G
IP55 protection
Why Choose the FOIF RTS010N?
The RTS010N combines the precision of a 1″ total station with the flexibility of an Android surveying platform. Its large touchscreen and graphical interface make field operation more intuitive, while CAD stakeout supports construction and engineering layout work.
Its long-range EDM also provides flexibility when measuring points with or without a prism. Multiple communication interfaces allow the instrument to fit different field data workflows.
For surveyors searching for a 1″ Android total station, the RTS010N offers a strong combination of precision, connectivity and modern field software.
Core Specifications
Angle accuracy: 1″
Telescope magnification: 30×
Reflectorless range: 2–1000 m
Prism range: 2–5000 m
Reflective sheet range: 2–800 m
Compensator: Dual-axis
Compensation range: ±3′
Display: 5.5-inch touchscreen, 720 × 1280
Operating system: Android 11
CPU: Quad-core ARM Cortex-A55, 2GHz
Memory: 4GB RAM + 32GB ROM
Battery: 5200mAh
Working time: ≥8 hours
Protection rating: IP55
Applications
Construction surveying
CAD stakeout
Topographic surveying
Engineering surveying
Building layout
Road and infrastructure projects
Land surveying
Field data collection
