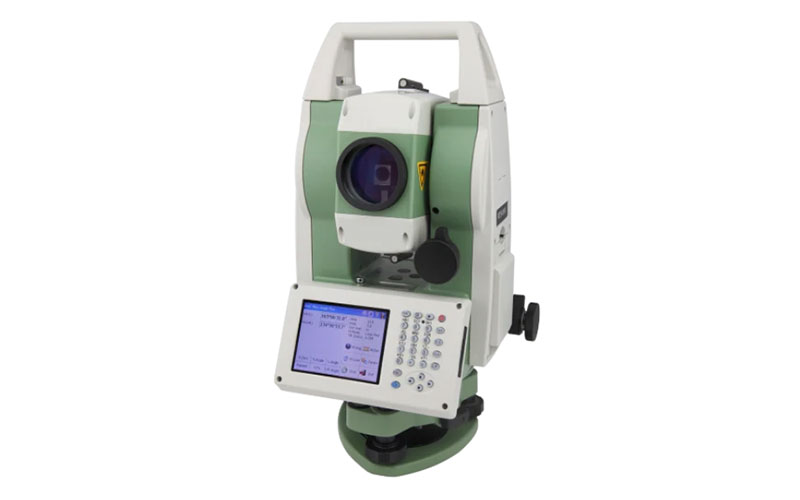

FOIF RTS010 High Precision Total Station

The FOIF RTS010 is a high precision total station designed for demanding surveying and engineering applications. It combines 1″ angular accuracy with a narrow EDM beam, long-range reflectorless measurement and professional onboard surveying software.

The RTS010 supports reflectorless measurement up to 1000 m and reflective sheet measurement up to 1200 m. Its narrow EDM beam is designed to measure difficult targets such as walls, corners, roadside features, fences and other points where prism placement may be inconvenient.

The instrument runs Windows CE 7.0 with FOIF Survey and FOIF FieldGenius software and supports data collection, stakeout, resection, remote elevation and traverse surveying.

RTKSurvey.com supplies the FOIF RTS010 for high precision surveying, railway, structural monitoring and engineering applications.

Key Features

• 1″ angle accuracy

• 30× telescope

• Reflectorless measurement up to 1000 m

• Reflective sheet measurement up to 1200 m

• 1 mm + 1 ppm prism accuracy

• Narrow EDM beam

• Windows CE 7.0

• FOIF Survey and FieldGenius software

• Dual-axis compensator

• 3.5-inch color touchscreen

• IP54 protection

Why Choose the FOIF RTS010?

The RTS010 is designed for projects where angular accuracy and reliable reflectorless measurement are important. Its 1″ angle accuracy provides a high level of precision, while the narrow EDM beam helps measure targets that are difficult to reach with a conventional prism.

The combination of long-range reflectorless measurement and professional surveying software makes the RTS010 suitable for high-precision construction, railway and structural surveying.

For surveyors looking for a conventional high precision FOIF total station rather than a robotic instrument, the RTS010 provides a focused and proven solution.

Core Specifications

• Angle accuracy: 1″

• Telescope magnification: 30×

• Prism range: up to 600 m in long mode

• Reflective sheet range: up to 1200 m

• Reflectorless range: up to 1000 m

• Prism accuracy: 1 mm + 1 ppm

• Reflectorless accuracy: 2 mm + 2 ppm up to 500 m

• Compensator: Dual-axis

• Compensation range: ±3′

• Display: 3.5-inch color TFT touchscreen

• Operating system: Windows CE 7.0

• Memory: 4GB

• Battery: 3400mAh

• Working time: approximately 5 hours

• Protection rating: IP54

Applications

• High precision surveying

• Railway surveying

• Structural monitoring

• Construction surveying

• Large-scale 3D measurement

• Engineering surveying

• Topographic surveying

• Stakeout

• Traverse surveying
