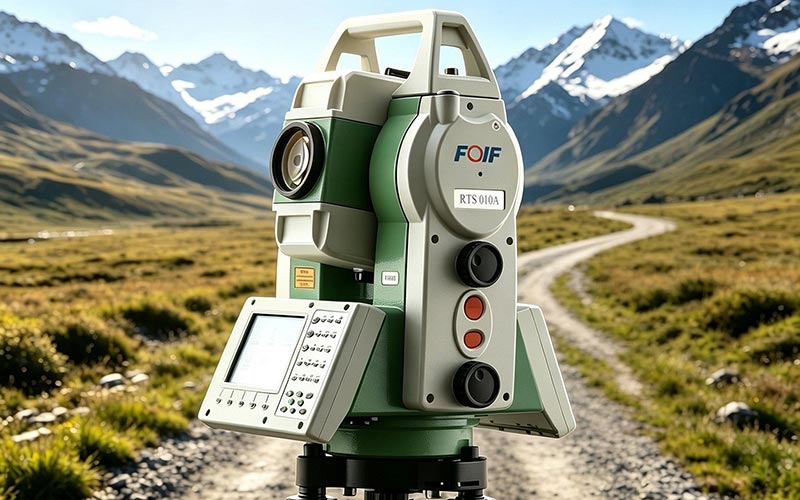

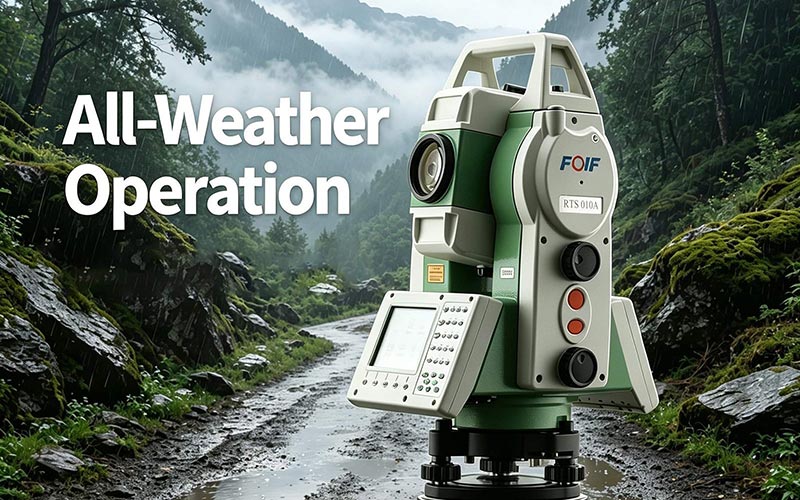

FOIF RTS010A Robotic Total Station
The FOIF RTS010A is a robotic total station designed for automatic target recognition, aiming and tracking. It combines precise angle and distance measurement with motorized operation to improve efficiency in one-person and robotic surveying workflows.
The RTS010A offers 0.5″ or 1″ angle accuracy options, reflectorless measurement up to 1000 m and long-range prism measurement. Its automatic target recognition and positioning system can identify and track a prism during field operations.
The instrument supports one-man surveying with FOIF Inspire software and can be used for construction layout, stakeout, engineering surveying and other professional applications.
RTKSurvey.com supplies the FOIF RTS010A for robotic surveying and engineering projects.
Key Features
0.5″ or 1″ angle accuracy options
Robotic motorized operation
Automatic target recognition and positioning
ATR target tracking up to 1000 m
Reflectorless measurement up to 1000 m
Long-range prism measurement
FOIF Inspire one-man surveying support
Dual-axis compensation
Bluetooth communication
IP55 protection
Why Choose the FOIF RTS010A?
The RTS010A is a practical choice for surveyors who need robotic functionality and automatic target handling. Its ATR system helps locate and lock onto a prism, reducing repeated manual aiming during field operations.
The instrument also supports one-man surveying with FOIF Inspire, making it suitable for construction layout and stakeout work where a surveyor needs to operate the instrument and data collection system efficiently.
Compared with the RS10, which focuses more heavily on direct-drive automation and monitoring applications, the RTS010A provides a straightforward robotic total station solution centered on ATR and one-person surveying.
Core Specifications
Angle accuracy: 0.5″ / 1″
Telescope magnification: 30×
ATR working range: up to 1000 m
Reflectorless measurement: up to 1000 m
Prism measurement: long-range
Compensator: Dual-axis
Display: Color display
One-man surveying: FOIF Inspire
Communication: Bluetooth and external interfaces
Protection rating: IP55
Applications
Robotic surveying
One-person surveying
Construction layout
Stakeout
Topographic surveying
Engineering surveying
Rail and infrastructure surveying
Dam monitoring
Automated target tracking
