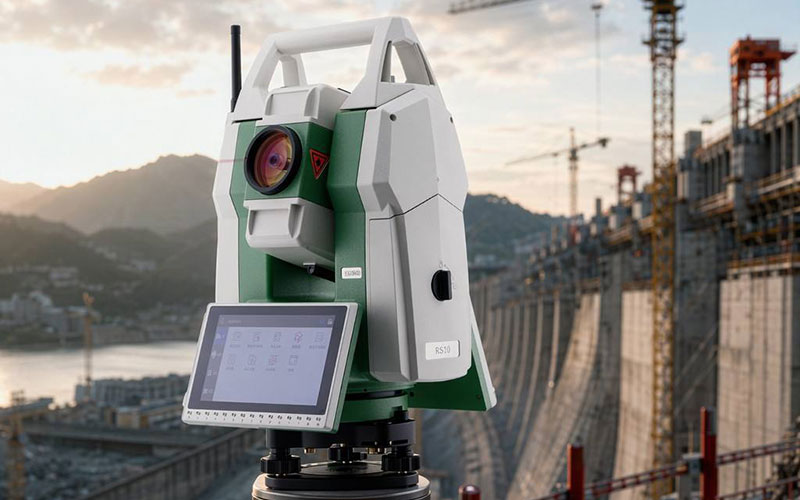

FOIF RS10 Robotic Total Station
The FOIF RS10 is a robotic total station designed for automated surveying, automatic target recognition and efficient field measurement. It integrates automatic aiming, target tracking, distance measurement and data recording into a single robotic surveying system.
The RS10 uses direct-drive motor technology for fast positioning and fine angular control. With 0.5″ or 1″ angle accuracy options, ATR target recognition and tracking up to 1000 m, it is suitable for projects that require accurate and efficient automated measurement.
The instrument also supports Android 11, a large touchscreen interface and a range of surveying functions including stakeout, resection, road measurement, cross-section measurement and automated monitoring.
RTKSurvey.com supplies the FOIF RS10 for professional surveying, construction and engineering projects.
Key Features
0.5″ or 1″ angle accuracy options
Direct-drive motor technology

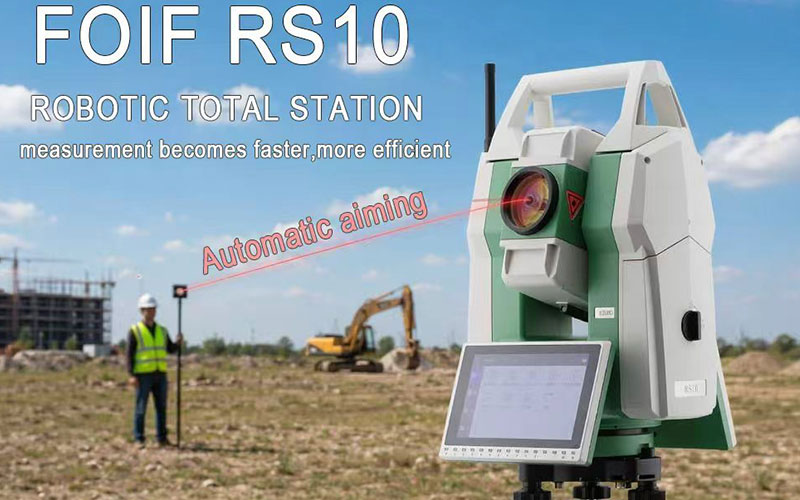

Automatic target recognition and aiming
ATR target tracking up to 1000 m
Maximum motor rotation speed up to 180°/s
Android 11 operating system
6-inch touchscreen
Automatic tracking and measurement functions
Integrated dual-axis compensator
4G communication option
IP55 protection
Why Choose the FOIF RS10?
The RS10 is designed for surveying teams that want to move beyond conventional manual total station operation. Its direct-drive motor system enables rapid positioning, while automatic target recognition and tracking reduce the amount of manual instrument control required in the field.
The combination of robotic measurement, Android-based operation and professional engineering functions also makes the RS10 suitable for deformation monitoring, bridge monitoring, cross-section measurement and automated surveying applications.
For projects where automation and field productivity are important, the RS10 provides a more advanced robotic surveying solution than a conventional manual total station.
Core Specifications
Angle accuracy: 0.5″ / 1″
Telescope magnification: 30×
ATR working range: 5–1000 m
Prism measurement range: up to 5000 m
Reflectorless measurement range: up to 1000 m
Reflective sheet range: up to 800 m
Maximum motor speed: 180°/s
Compensator: Integrated dual-axis
Compensation range: ≥±6′
Display: 6-inch touchscreen
Operating system: Android 11
Memory: 8GB RAM + 128GB storage
Battery: 5800mAh
Working time: approximately 5–8 hours
Protection rating: IP55
Applications
Robotic surveying
Automated surveying
Deformation monitoring
Bridge monitoring
Construction surveying
Cross-section measurement
Road surveying
Automated stakeout
Engineering surveying
