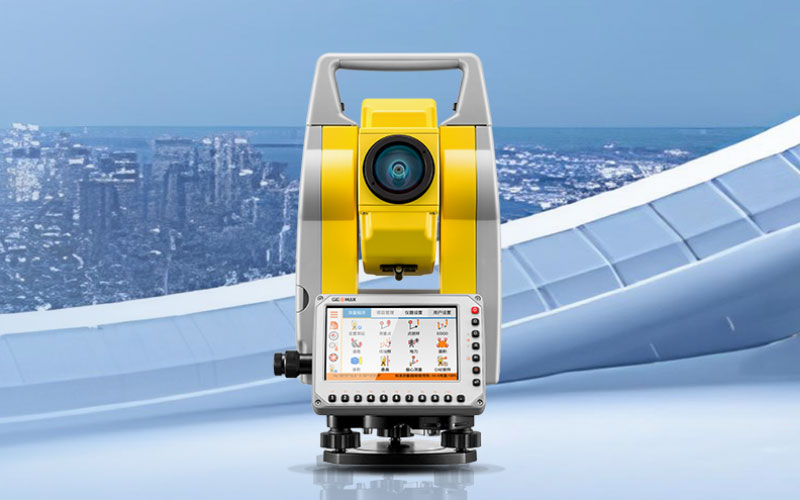

GeoMax ZOOM49 Total Station

The GeoMax ZOOM49 is a 1″ manual total station that combines precision measurement with an Android-based field interface. It is designed for surveyors who want accurate angular measurement and a modern touchscreen operating experience without moving to a fully robotic total station.

The instrument supports prism and reflectorless distance measurement, with a prism range of up to 3500 m and reflectorless measurement up to 800 m. Its Android 11 operating system, 5″ color touchscreen and wireless communication options provide a more familiar digital workflow for modern field teams.

The ZOOM49 is well suited to engineering and construction projects where precise measurement, straightforward field operation and flexible data handling are all important.

Key Features

• 1″ angular accuracy

• Android 11 operating system

• 5″ WVGA color touchscreen

• Up to 3500 m prism measurement

• Up to 800 m reflectorless measurement

• 30× telescope

• Phase-based EDM

• Bluetooth and Wi-Fi connectivity

• USB storage support

• 32 GB internal storage

• IP55 protection

Why Choose the GeoMax ZOOM49?

The ZOOM49 stands out by combining the familiar measurement workflow of a manual total station with an Android operating environment. This makes it an interesting option for surveyors who prefer touchscreen operation and modern connectivity but do not require robotic prism tracking.

Its 1″ angular accuracy gives it a strong position for precision engineering work, while the 3500 m prism range and 800 m reflectorless capability allow it to cover a broad range of field measurement situations.

For construction and engineering teams, the ZOOM49 offers a practical balance between measurement capability and ease of operation. The Android platform also makes the instrument a natural fit for users who are already accustomed to mobile-device interfaces.

Core Specifications

• Instrument type: Manual total station

• Angular accuracy: 1″

• Prism distance accuracy: 2mm + 2ppm

• Reflectorless distance accuracy: 3mm + 2ppm

• Prism range: Up to 3500 m

• Reflectorless range: Up to 800 m

• Distance measurement method: Phase-based

• Telescope magnification: 30×

• Telescope aperture: 40 mm

• Display: 5″ WVGA color touchscreen

• Operating system: Android 11

• Internal storage: 32 GB

• Connectivity: Bluetooth, Wi-Fi and USB

• Protection: IP55

• Battery operating time: Up to 8 hours

• Weight: Approx. 6.76 kg

Applications

• Engineering surveying

• Construction surveying

• Building layout

• Topographic measurement

• Road and infrastructure projects

• High-precision site measurement

• General total station surveying

• Construction stakeout
