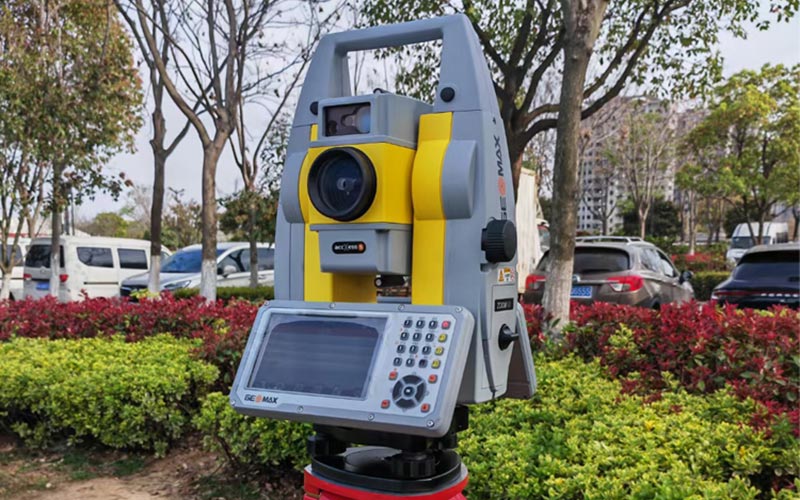

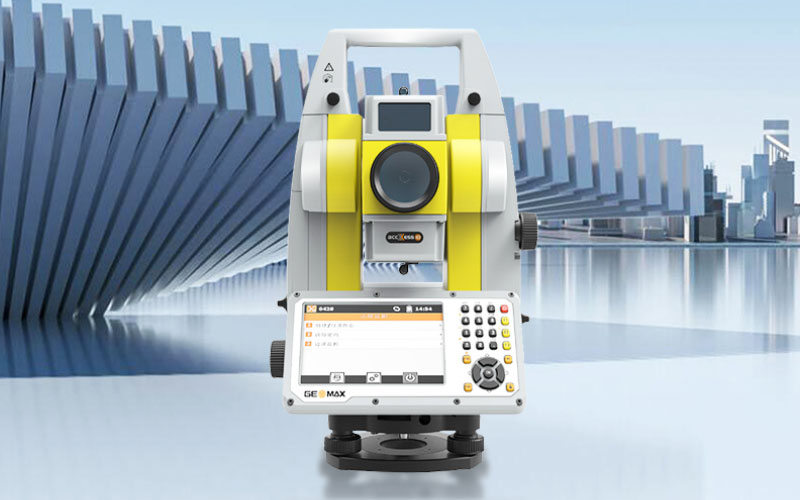

GeoMax Zoom75 Pro Total Station

The GeoMax Zoom75 Pro is a high-precision robotic total station designed for surveying projects that require accurate measurement and efficient field operation. With 1″ angular accuracy, 1mm+1.5ppm distance accuracy and up to 1000 m reflectorless measurement, it can handle a wide range of construction, engineering and monitoring tasks.

The instrument is designed around a more flexible field workflow than a conventional manual total station. With robotic operation, prism search and digital field software, surveyors can reduce repetitive instrument setup and operation while keeping the measurement process under control.

For projects where field productivity is just as important as measurement precision, the Zoom75 Pro provides a practical combination of robotic functionality, long-range measurement and digital surveying workflows.

Key Features

• 1″ angular accuracy

• 1mm + 1.5ppm distance measurement accuracy

• Up to 1000 m reflectorless measurement

• Up to 3500 m measurement with a standard prism

• Robotic operation for one-person surveying

• GeoTRAil prism search based on GNSS position

• Support for X-PAD field software

• 5″ WVGA color touchscreen

• Quadruple-axis compensation

• Bluetooth, USB and WLAN connectivity

• IP55 protection

Why Choose the GeoMax Zoom75 Pro?

The Zoom75 Pro is a strong choice when a surveying team wants to move beyond conventional two-person total station workflows. Its robotic functions can reduce the need to return to the instrument repeatedly, which is particularly useful when measuring or staking out points across a larger site.

The 1″ angular accuracy and 1mm+1.5ppm distance accuracy also make it suitable for projects where precision cannot be sacrificed for productivity. The long reflectorless range adds flexibility when measuring points where placing a prism is inconvenient.

Another advantage is the integration with digital field workflows. CAD data and survey information can be handled through the instrument and compatible field controllers, making the Zoom75 Pro suitable for modern construction and engineering projects.

Core Specifications

• Instrument type: Robotic total station

• Angular accuracy: 1″

• Distance accuracy: 1mm + 1.5ppm

• Reflectorless range: Up to 1000 m

• Standard prism range: Up to 3500 m

• Telescope magnification: 30×

• Display: 5″ WVGA color touchscreen

• Compensation: Quadruple-axis

• Operating system: Windows CE

• Connectivity: Bluetooth, USB, WLAN

• Protection: IP55

• Operating temperature: -20°C to +50°C

• Battery operation: Up to 8 hours

Applications

• Construction surveying

• Construction layout and stakeout

• Topographic surveying

• Engineering surveying

• Road and infrastructure projects

• Structural measurement

• Deformation and monitoring work

• One-person surveying

• Digital construction site measurement
