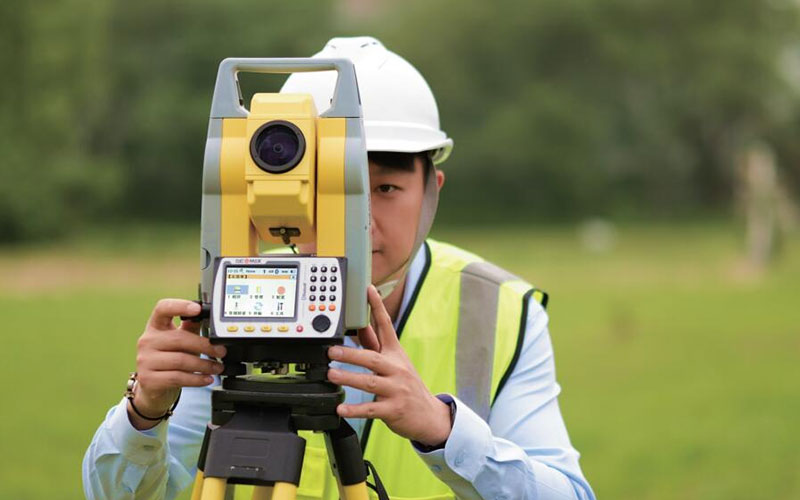

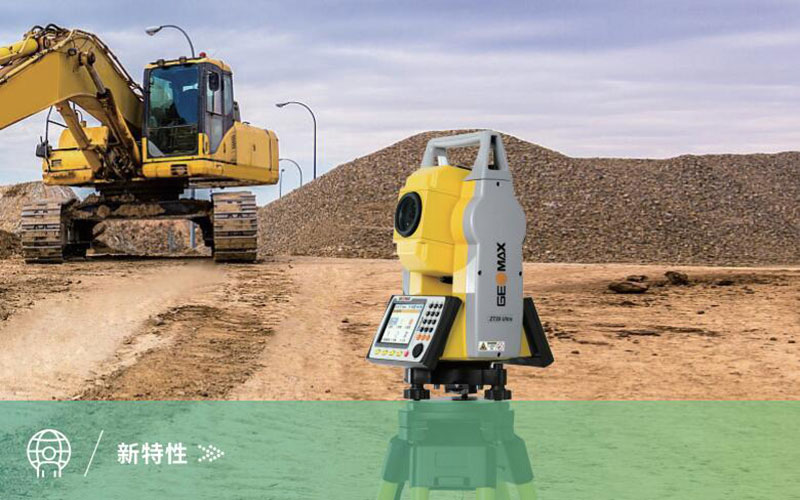

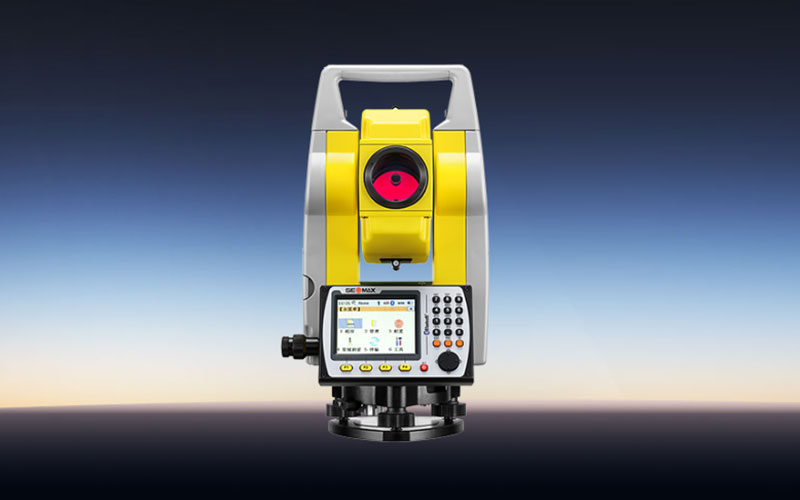

GeoMax ZT30R Ultra Total Station

The GeoMax ZT30R Ultra is a professional total station designed for surveying teams that need dependable distance measurement and efficient field operation. With 2″ angular accuracy, an 800 m reflectorless range and up to 3500 m prism measurement, it provides flexibility for both general surveying and engineering projects.

The upgraded distance measurement system is designed for fast point collection, while the improved laser module provides a clearer aiming indication in different site conditions. Its combination of conventional controls, onboard applications and wireless communication makes the ZT30R Ultra suitable for everyday field measurement.

Key Features

• 2″ angular accuracy

• Up to 800 m reflectorless measurement

• Up to 3500 m prism measurement

• Fast distance measurement

• 30× telescope

• 44 mm telescope aperture

• Dual-axis liquid compensator

• 3.5″ color touchscreen

• Dual-sided numeric keyboard

• Bluetooth and Wi-Fi connectivity

• Up to 100,000 data blocks

• Up to approximately 18 hours of operation

• IP55 protection

Why Choose the GeoMax ZT30R Ultra?

The ZT30R Ultra is a practical choice for surveyors who need a conventional total station with longer reflectorless capability. An 800 m non-prism range can reduce the need to move the instrument when measuring targets that are difficult or unsafe to reach with a prism.

Speed is another useful advantage for routine field work. The updated EDM system supports rapid measurements, while the improved laser module helps provide a clearer aiming point when working in bright, dark or dusty environments.

The instrument also has a large internal data capacity and a long operating time, which can be valuable on projects involving repeated measurements throughout the day.

Core Specifications

• Instrument type: Conventional total station

• Angular accuracy: 2″

• Prism distance accuracy: 2mm + 2ppm

• Reflectorless distance accuracy: 3mm + 2ppm

• Prism range: Up to 3500 m

• Reflectorless range: Up to 800 m

• Distance measurement method: Phase-based

• Telescope magnification: 30×

• Telescope aperture: 44 mm

• Compensation: Dual-axis liquid compensation

• Compensation range: ±3′

• Display: 3.5″ color touchscreen

• Operating system: WinCE 6.0

• Storage capacity: Up to 100,000 data blocks

• Connectivity: USB, Bluetooth and Wi-Fi

• Protection: IP55

• Operating temperature: -20°C to +50°C

• Battery capacity: 4400mAh

• Operating time: Approximately 18 hours

Applications

• Engineering surveying

• Construction surveying

• Topographic surveying

• Building layout

• Road and infrastructure projects

• Construction stakeout

• Area and volume measurement

• Elevation and height measurement

• General field data collection

Related Products

For other GeoMax total stations, consider the GeoMax ZT80A4, GeoMax ZOOM49 and GeoMax ZT18AI Pro.
