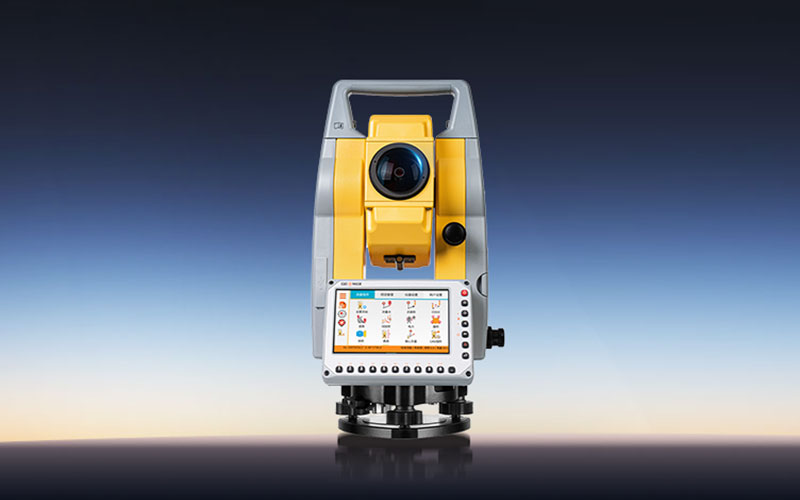

GeoMax ZOOM45 Total Station

The GeoMax ZOOM45 is a manual total station designed for construction surveying, layout and general site measurement. It combines conventional total station measurement with an Android operating system and a large touchscreen, giving field crews a more visual way to work with survey and stakeout data.

Available with 2″ or 5″ angular accuracy, the ZOOM45 provides reflectorless measurement up to 500 m and prism measurement for longer-range work. Its integration with GeoMax X-PAD software also makes it suitable for projects where digital drawings and field data need to move efficiently between the site and office.

Key Features

• Available in 2″ and 5″ angular accuracy versions

• Up to 500 m reflectorless measurement

• Up to 5000 m prism measurement

• Android 11 operating system

• 5″ color touchscreen

• X-PAD Ultimate field software support

• Bluetooth and WLAN connectivity

• 32 GB internal memory

• 18-key keyboard with dedicated function keys

• Laser plummet

• Up to 8 hours of operation

• IP55 protection

Why Choose the GeoMax ZOOM45?

The ZOOM45 is particularly well suited to construction sites where fast point measurement and straightforward layout are important. Its large touchscreen makes graphical field information easier to work with, while the Android platform provides a familiar interface for digital surveying applications.

The instrument also fits into a broader digital workflow. Survey data and design information can be handled through X-PAD field software and transferred between field and office environments, reducing the need to rely on disconnected data processes.

For construction crews that prefer a manual total station but still want modern software and touchscreen operation, the ZOOM45 offers a useful middle ground between traditional surveying equipment and a fully digital field workflow.

Core Specifications

• Instrument type: Manual total station

• Angular accuracy: 2″ or 5″

• Prism distance accuracy: 2mm + 2ppm

• Reflectorless distance accuracy: 3mm + 2ppm

• Reflectorless range: Up to 500 m

• Prism range: Up to 5000 m

• Telescope magnification: 28×

• Display: 5″ WVGA color touchscreen

• Operating system: Android 11

• Internal memory: 32 GB

• Connectivity: USB, Bluetooth and WLAN

• Keyboard: 18 keys

• Laser plummet: Yes

• Protection: IP55

• Operating temperature: -20°C to +50°C

• Battery operating time: Up to 8 hours

• Weight: Approx. 5.1 kg without battery and tribrach

Applications

• Construction surveying

• Construction layout

• Stakeout

• Building measurement

• Road and infrastructure projects

• Topographic surveying

• General engineering surveying

• Digital field-to-office workflows
