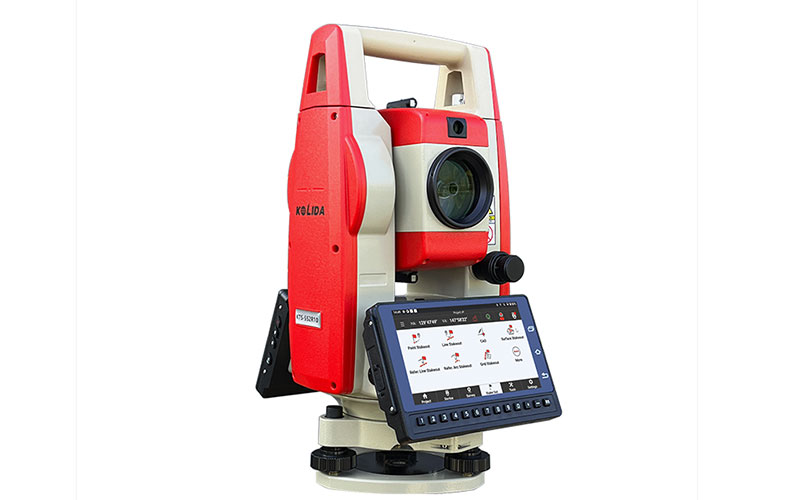

KOLIDA KTS-552R10 Total Station

The KOLIDA KTS-552R10 is a high-performance total station combining Android operation, long-range EDM and digital field surveying functions. It provides 2″ angular accuracy, up to 5000 m prism measurement and 1000 m reflectorless measurement.

The KTS-552R10 uses Android 11 with KSurvey field software and 4GB RAM with 64GB storage. Its current enhanced version adds KSurvey 2026, Guide Light and a higher-capacity battery for longer field operation.

The instrument also supports 4G, Wi-Fi, Bluetooth and USB Type-C connectivity. CAD stakeout, coordinate measurement, COGO and other onboard functions support common construction and engineering workflows.

Key Features

• 2″ angular accuracy

• Up to 5000 m single-prism range

• Up to 8000–10000 m with three prisms

• 1000 m reflectorless measurement

• 2 mm + 2 ppm prism accuracy

• 3 mm + 2 ppm reflectorless accuracy

• Android 11 operating system

• KSurvey field software

• KSurvey 2026 support

• 4GB RAM + 64GB storage

• 4G, Wi-Fi and Bluetooth

• USB Type-C

• Dual-axis compensation

• Laser plummet and laser pointing

• Guide Light

• Ultra-fast distance measurement

Why Choose the KOLIDA KTS-552R10?

The KTS-552R10 is aimed at surveyors who want a modern total station without moving to a fully robotic instrument. Android 11 and KSurvey provide a familiar digital environment, while the large internal storage supports projects involving CAD drawings and extensive field data.

Its 1000 m reflectorless capability and 5000 m prism range provide flexibility for both normal and long-distance measurements. The latest KSurvey software also supports CAD stakeout and other graphical field operations.

With 4G, Wi-Fi, Bluetooth and USB Type-C, the KTS-552R10 is well suited to connected field workflows and professional construction surveying.

Core Specifications

• Model: KOLIDA KTS-552R10

• Type: Android Total Station

• Angular Accuracy: 2″

• Prism Range: Up to 5000 m

• Three-Prism Range: Up to 8000–10000 m

• Reflectorless Range: Up to 1000 m

• Prism Distance Accuracy: 2 mm + 2 ppm

• Reflectorless Distance Accuracy: 3 mm + 2 ppm

• Measurement Method: Absolute encoding

• Operating System: Android 11

• Onboard Software: KSurvey

• Memory: 4GB RAM + 64GB ROM

• Telescope Magnification: 30×

• Compensator: Dual-axis liquid-electric

• Communication: 4G, Wi-Fi, Bluetooth, USB Type-C

• Laser Plummet: Integrated

• Guide Light: Integrated on enhanced version

Applications

• Construction surveying

• Engineering surveying

• Topographic surveying

• Road and infrastructure projects

• CAD stakeout

• Coordinate measurement

• COGO and field calculations

• Cadastral surveying

• General land surveying
