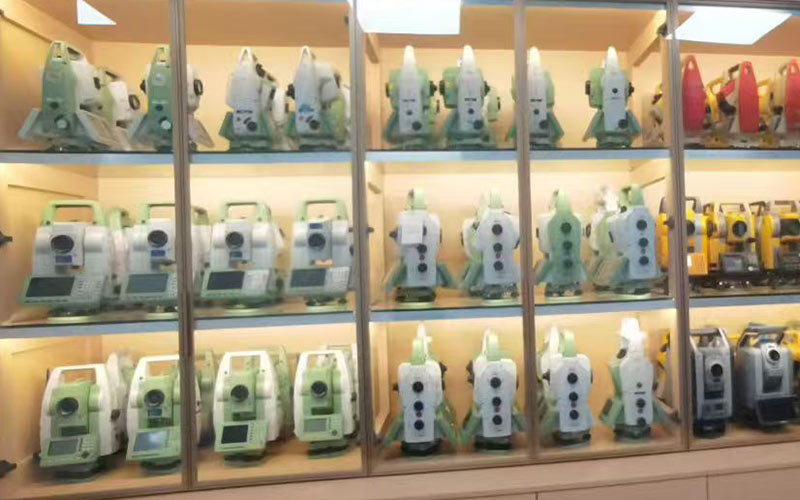

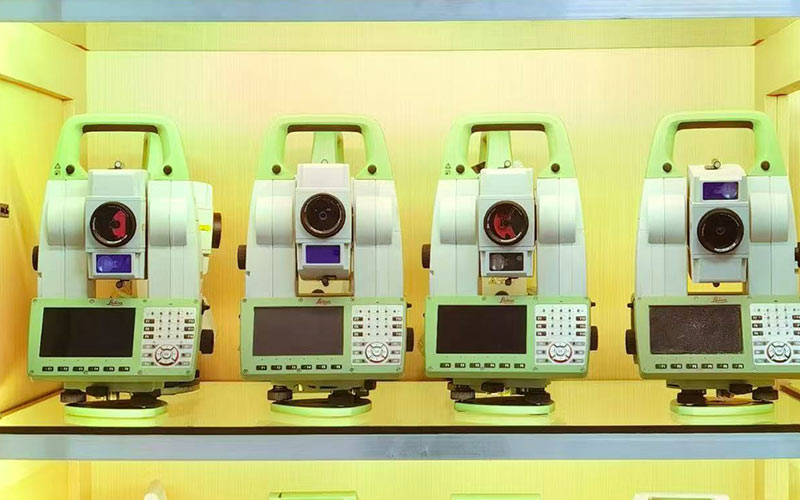

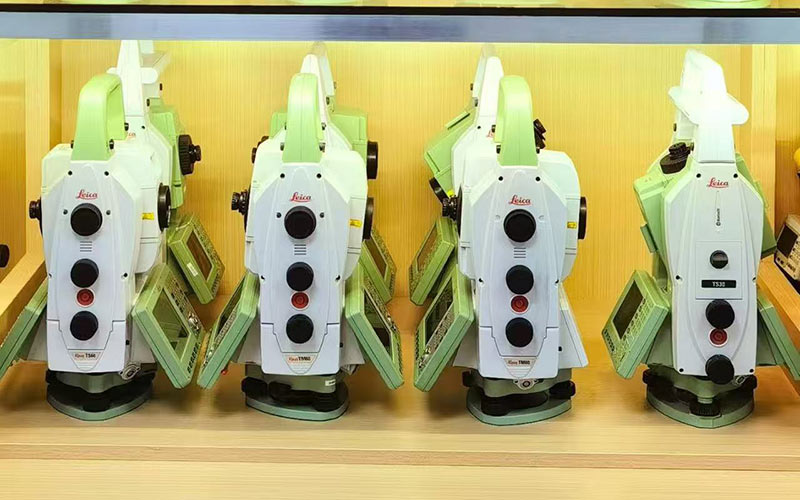

Used Leica TS13 Robotic Total Station

The Leica TS13 is a scalable robotic total station designed for surveying, construction layout and field measurement. It combines Automatic Target Recognition, Leica Captivate and AutoHeight, with optional target lock and SpeedSearch for robotic workflows. Actual condition, configuration and included accessories may vary by unit. Contact RTKSurvey.com for current availability.

Key Features

• 1″, 2″, 3″ and 5″ accuracy options

• Automatic Target Recognition (ATR)

• Optional target lock and SpeedSearch

• Up to 3,500 m prism measurement range

• R500 or R1000 reflectorless EDM options

• Leica Captivate field software

• AutoHeight for automatic instrument height measurement

• Electronic Guide Light (EGL)

• Bluetooth and WLAN connectivity

• Up to 8 hours operating time

• IP55 protection

Used Leica TS13 for Robotic Surveying

The used Leica TS13 is suitable for topographic surveying, construction layout, stakeout, as-built measurement and projects requiring a scalable robotic workflow. Its upgradeable design allows users to start with conventional total station operation and add robotic functions such as target lock and SpeedSearch when required.

For used equipment, buyers should confirm the actual angular accuracy, robotic functions, controller compatibility, EDM configuration, software, battery condition and included accessories before purchase.

Core Specifications

• Model: Leica TS13

• Angular accuracy: 1″ / 2″ / 3″ / 5″ depending on configuration

• Prism range: up to 3,500 m

• Reflectorless range: R500 >500 m / R1000 >1,000 m

• Prism distance accuracy: 1 mm + 1.5 ppm

• Reflectorless accuracy: 2 mm + 2 ppm

• ATR aiming range: up to 1,000 m

• 360° prism aiming range: up to 800 m

• EGL working range: 5–150 m

• AutoHeight range: 0.7–2.7 m

• Field software: Leica Captivate

• Interfaces: RS232, USB, Bluetooth, WLAN

• Operating time: up to 8 hours

• Weight: approximately 5.0 kg including battery

• Protection: IP55

Applications

• Topographic surveying

• Robotic surveying

• Construction layout

• Stakeout

• As-built measurement

• Road and infrastructure surveying

• Engineering surveys

• One-person surveying
