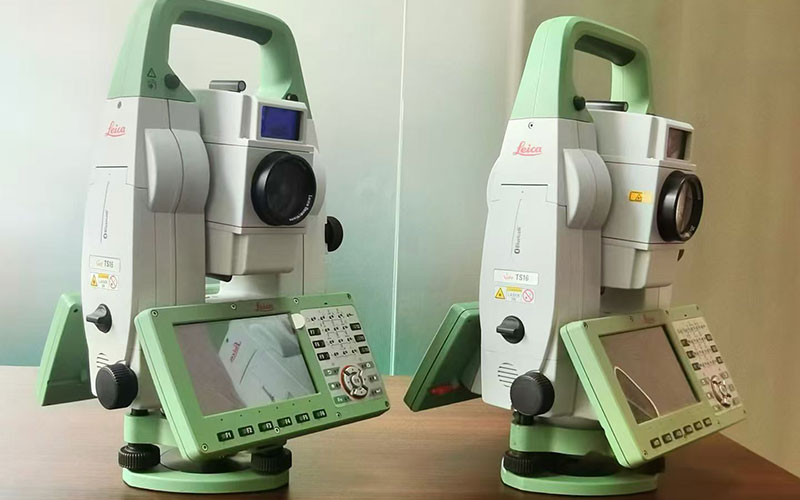

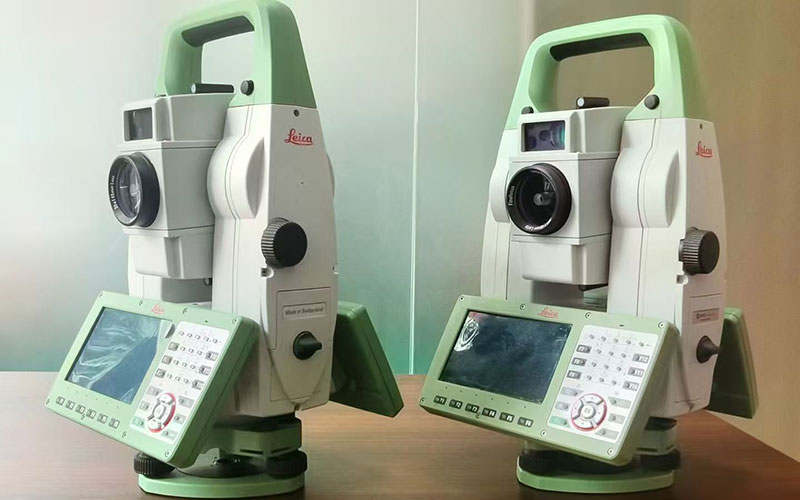

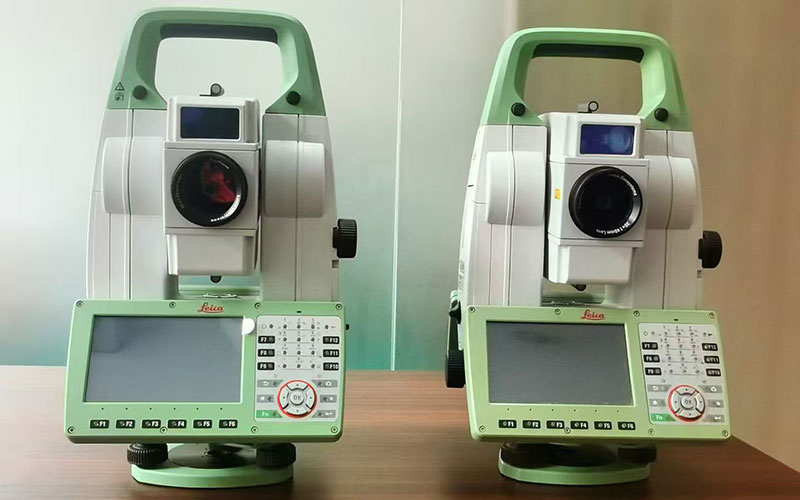

Used Leica TS16 1″ Robotic Total Station
The Leica TS16 is a robotic total station designed for precise surveying, stakeout and construction work. This used 1″ version features ATRplus automatic target recognition, PowerSearch, Leica Captivate and reflectorless EDM for efficient field operation. Actual condition, configuration and included accessories may vary by unit. Contact RTKSurvey.com for current availability.
Key Features
1″ angular accuracy version
ATRplus automatic target recognition
PowerSearch automatic prism searching
Up to 3,500 m prism measurement range
R500 or R1000 reflectorless EDM options
Leica Captivate field software
5 MP overview camera
5″ color touchscreen
Bluetooth and WLAN connectivity
Up to 8 hours operating time
IP55 protection
Used Leica TS16 for Professional Surveying
The used Leica TS16 is suitable for topographic surveying, construction layout, stakeout, as-built measurement, road and infrastructure projects, and one-person robotic surveying. ATRplus and PowerSearch help automate target acquisition, while Leica Captivate supports field measurement and data collection workflows.
For used equipment, buyers should confirm the actual angular accuracy, EDM configuration, software, battery condition and included accessories before purchase.
Core Specifications
Model: Leica TS16
Angular accuracy: 1″ version
Prism range: up to 3,500 m
Reflectorless range: R500 >500 m / R1000 >1,000 m
Prism distance accuracy: 1 mm + 1.5 ppm
Reflectorless accuracy: 2 mm + 2 ppm
ATRplus aiming range: up to 1,500 m
ATRplus locking range: up to 1,000 m
PowerSearch range: up to 300 m
Overview camera: 5 MP
Display: 5″ color touchscreen
Field software: Leica Captivate
Interfaces: RS232, USB, Bluetooth, WLAN
Operating time: up to 8 hours
Protection: IP55
Applications
Topographic surveying
Construction surveying
Building and road layout
Stakeout
As-built surveying
Engineering surveys
One-person robotic surveying
Infrastructure projects
