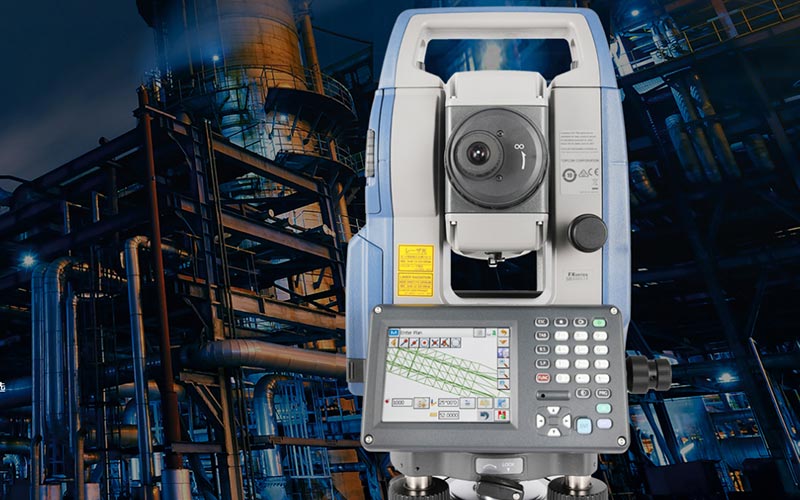

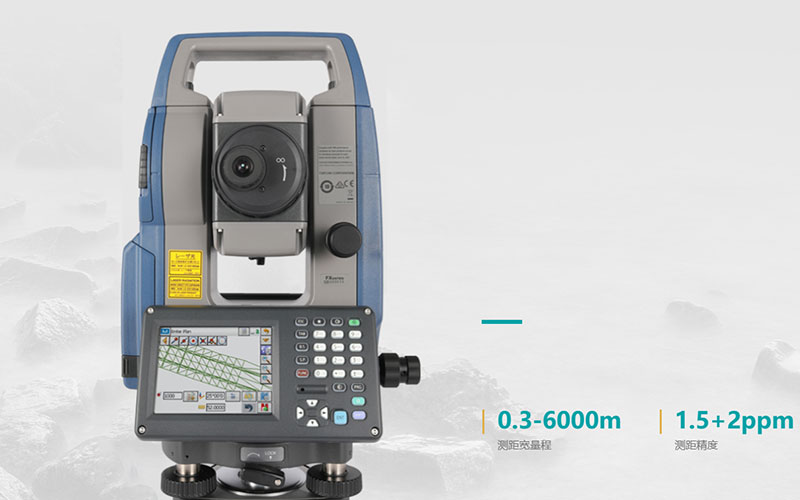

SOKKIA FX201 Total Station
The SOKKIA FX201 is a professional total station designed for surveying, road and railway projects, construction and engineering applications. It combines SOKKIA RED-tech EDM technology with a Windows CE operating system and GEOPRO Field software. Support for CAD field drawing and optional professional applications provides flexibility for specialized surveying workflows.
Key Features
1″ angular accuracy
Prism measurement up to 5000 m, or 6000 m under favorable conditions
Reflectorless measurement up to 1000 m
1.5 mm + 2 ppm distance accuracy
Dual-axis compensation with ±6′ range
Windows CE operating system
GEOPRO Field surveying software
CAD field drawing support
USB and Bluetooth data connectivity
IP65 protection
Why Choose the SOKKIA FX201?
The FX201 is a versatile professional total station for surveyors who need both conventional measurement functions and graphical field workflows. Its wide EDM range supports prism, reflectorless and reflector-sheet measurements, while GEOPRO Field provides tools for road design, cross-section work and other surveying tasks.
Optional software packages also allow the FX201 to be adapted to specialized applications such as industrial, tunnel and other engineering surveys.
Core Specifications
Model: FX201
Angular Accuracy: 1″
Prism Measurement Range: Up to 5000 m
Reflectorless Measurement Range: Up to 1000 m
Distance Accuracy: 1.5 mm + 2 ppm
Compensator: Dual-axis, ±6′
Operating System: Windows CE
Onboard Software: GEOPRO Field
Connectivity: USB / Bluetooth
Protection Rating: IP65
Applications
Road surveying
Railway surveying
Tunnel surveying
Bridge projects
Dam and infrastructure surveying
Industrial measurement
Construction surveying
Topographic surveying
