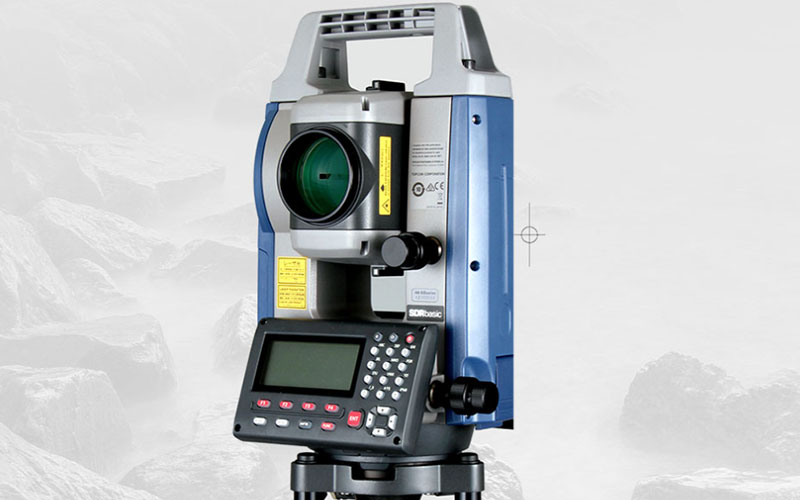

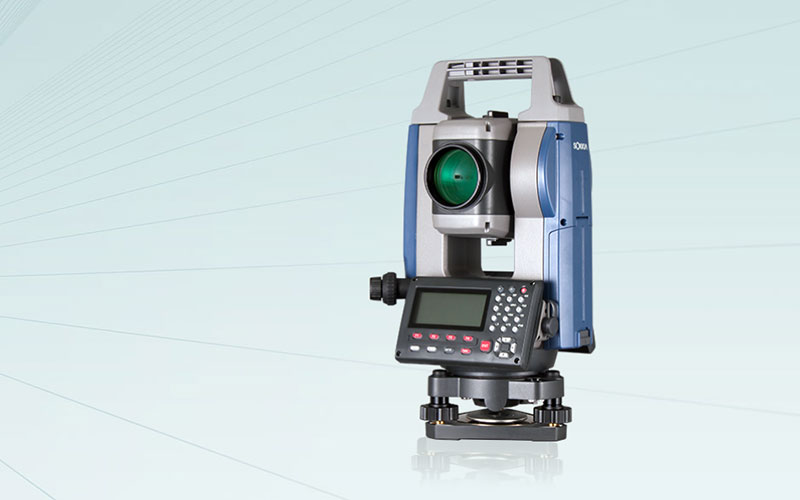

SOKKIA iM-52 Total Station
The SOKKIA iM-52 is an engineering total station designed for routine surveying, construction measurement and infrastructure projects. It combines 2″ angular accuracy with reflectorless and prism distance measurement, dual-axis compensation and a rugged IP66 housing. Its onboard surveying programs support common engineering measurement and layout tasks.
Key Features
2″ angular accuracy
Reflectorless measurement up to 500 m
Single-prism measurement up to 4000 m
1.5 mm + 2 ppm prism distance accuracy
Dual-axis compensation with ±6′ range
Linux operating system
Built-in surveying and calculation programs
IP66 dust and water protection
Operating temperature from -20°C to 60°C
Why Choose the SOKKIA iM-52?
The iM-52 is a practical option for surveyors who need a dependable engineering total station for everyday field work. Its 2″ angular accuracy, 500 m reflectorless range and 4000 m prism range cover a broad range of construction and engineering measurement requirements.
Built-in functions for road setting out, resection, missing line measurement, reference line, remote height and area calculation also make the iM-52 suitable for projects where common surveying operations need to be performed directly in the field.
Core Specifications
Model: iM-52
Angular Accuracy: 2″
Reflectorless Measurement Range: Up to 500 m
Single-Prism Measurement Range: Up to 4000 m
Prism Distance Accuracy: 1.5 mm + 2 ppm
Compensator: Dual-axis, ±6′
Operating System: Linux
Protection Rating: IP66
Operating Temperature: -20°C to 60°C
Applications
Engineering surveying
Land surveying
Construction surveying
Tunnel surveying
Cadastral surveying
Building and infrastructure projects
Road layout and measurement
As-built surveying
