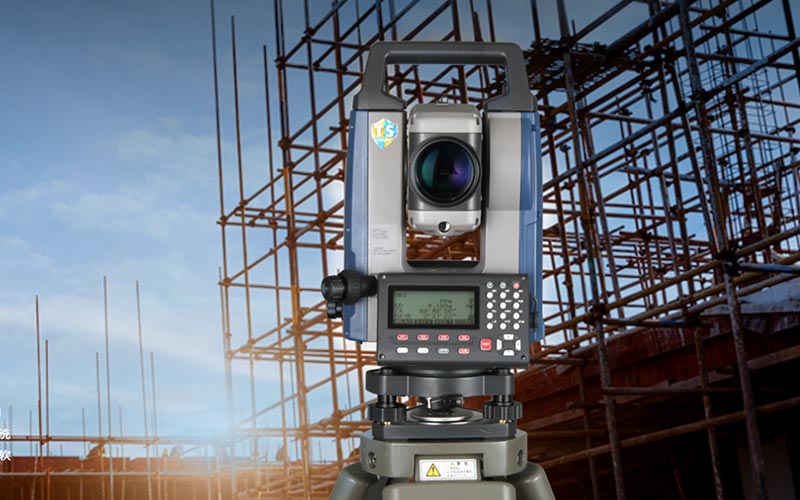

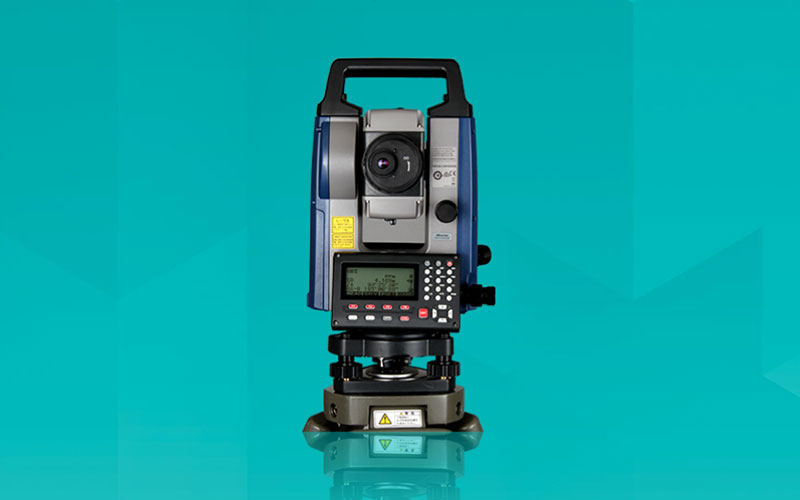

SOKKIA IM-100 Total Station
The SOKKIA IM-100 is a precision engineering total station designed for professional surveying, construction and engineering measurement. It combines 1″ angular accuracy with advanced EDM technology, a large dual-axis compensation range and onboard surveying software. Its rugged IP66 construction and long operating time make it suitable for demanding field conditions.
Key Features
1″ angular accuracy
Reflectorless measurement up to 1000 m
Prism measurement up to 6000 m
1.5 mm + 2 ppm distance accuracy
Dual-axis compensation with ±6′ range
IACS angle calibration system
SDR Basic onboard surveying software
IP66 dust and water protection
Up to 32 hours of battery operation in Eco mode
Why Choose the SOKKIA IM-100?
The IM-100 is designed for surveyors who require a higher level of precision from a conventional total station. Its 1″ angular accuracy, advanced EDM and IACS angle calibration system provide a strong combination for professional engineering measurement.
The built-in SDR Basic software also provides commonly used surveying functions without requiring a separate field controller, while the IP66 housing and long battery life support extended outdoor operation.
Core Specifications
Model: IM-100
Angular Accuracy: 1″
Prism Measurement Range: Up to 6000 m
Reflectorless Measurement Range: Up to 1000 m
Distance Accuracy: 1.5 mm + 2 ppm
Compensator: Dual-axis, ±6′
Operating System: Linux
Onboard Software: SDR Basic
Protection Rating: IP66
Battery Life: Up to 32 hours in Eco mode
Applications
Precision engineering surveying
Land surveying
Construction surveying
Topographic surveying
Tunnel surveying
Cadastral surveying
Building and infrastructure projects
