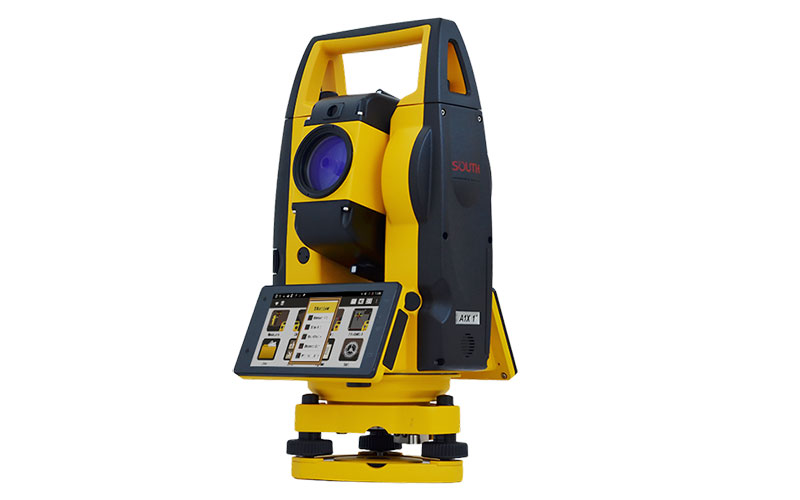

SOUTH A1 Series Android Total Station

The SOUTH A1 Series is an Android total station designed to bring touchscreen operation and flexible software integration to conventional surveying workflows. The series includes A1 1″, A1 2″, A1X 1″ and A1X 2″ models.

The A1 Series combines 1″ or 2″ angular accuracy with reflectorless distance measurement of up to 1000 m. Its 5-inch capacitive touchscreen provides a graphical interface for field operations, while Bluetooth enables cable-free data communication.

An open software interface allows the A1 Series to work with third-party surveying applications and supports customized software solutions. This makes the series suitable for survey companies that require a flexible Android platform rather than a closed onboard system.

Key Features

• 1″ and 2″ angular accuracy options

• A1 and A1X model configurations

• Reflectorless EDM up to 1000 m

• Android operating system

• Open interface for third-party surveying software

• 5-inch capacitive multi-touch screen

• Graphical field guidance

• Bluetooth wireless communication

• Optional Auto Height function on A1X models

• Optional Guide Light

• Support for customized software applications

Why Choose the SOUTH A1 Series?

The A1 Series is a practical choice for survey teams that want an Android-based total station with greater software flexibility. Its open interface allows third-party applications to be integrated, which can be useful for companies already using specific field surveying or CAD software.

The touchscreen interface also provides a more modern operating experience than traditional keypad-only total stations. With 1″ and 2″ accuracy options, buyers can select a configuration according to the precision requirements of their projects.

For distributors and professional users, the A1 Series offers a balance of total station measurement capability, Android operation and software adaptability.

Core Specifications

• Model: SOUTH A1 Series

• Type: Android Total Station

• Models: A1 1″, A1 2″, A1X 1″, A1X 2″

• Angular Accuracy: 1″ / 2″

• Reflectorless Measurement: Up to 1000 m

• Operating System: Android

• Display: 5-inch capacitive touchscreen

• Interface: Open software interface

• Wireless Communication: Bluetooth

• Auto Height: Available on A1X models

• Guide Light: Optional

• Software: Supports third-party and customized applications

Applications

• Topographic surveying

• Construction surveying

• Engineering projects

• Road surveying

• Cadastral surveying

• Stakeout and layout

• Field data collection

• CAD and third-party software workflows

• General land surveying
