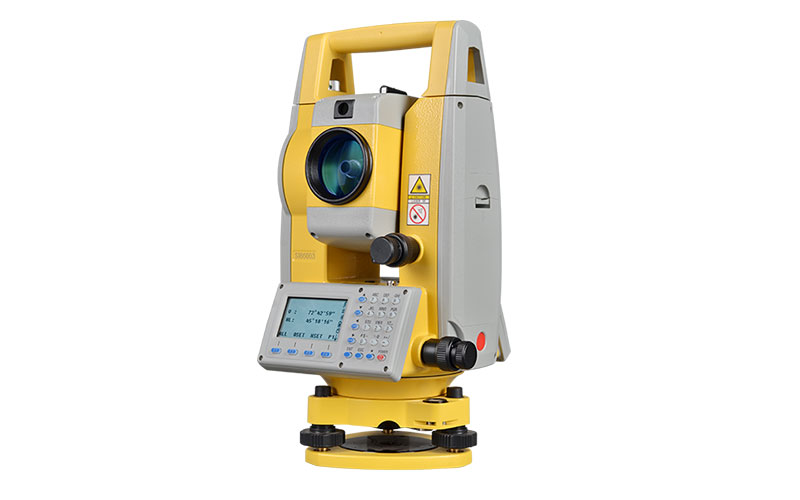

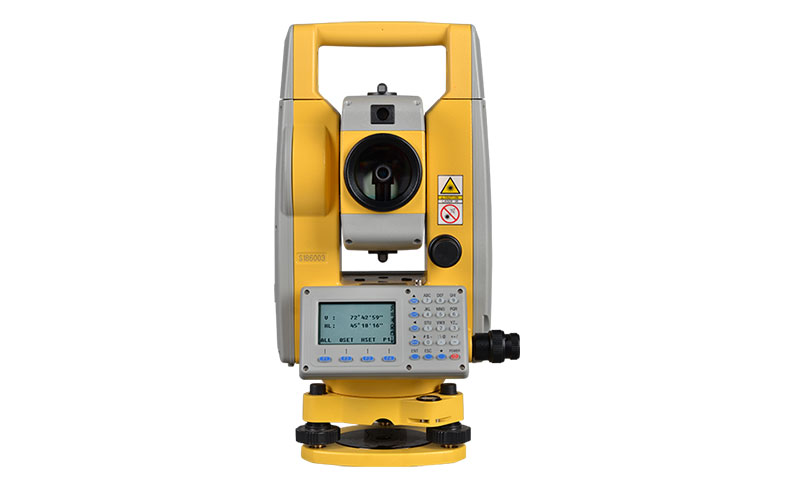

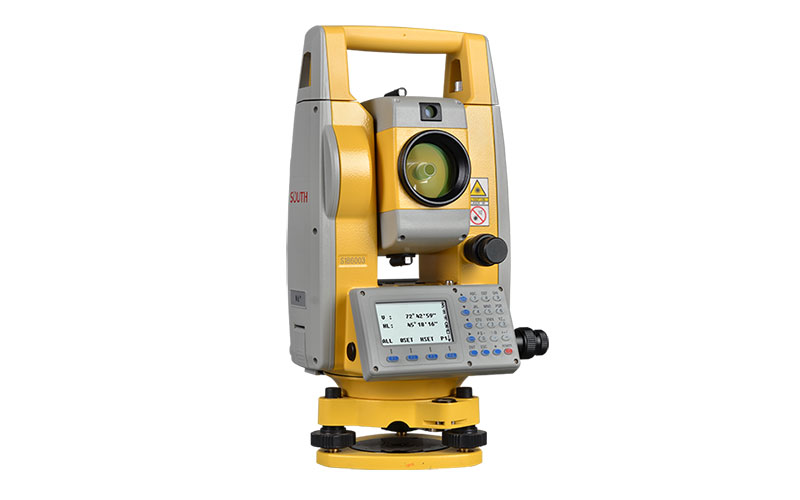

SOUTH N6+ Total Station

The SOUTH N6+ is a professional total station designed for reliable surveying, construction and engineering applications. Available with 2″ and 5″ angular accuracy, it combines long-range distance measurement with practical onboard surveying functions.

The N6+ can measure up to 5000 m with a prism and provides 1000 m or 1500 m reflectorless measurement depending on configuration. A dual-axis compensator, laser plummet and illuminated guide light support accurate instrument setup and field measurement.

Its alphanumeric keypad, dual-side LCD displays and dedicated trigger and hot keys are designed for efficient operation in the field. USB and Bluetooth provide convenient options for transferring survey data.

Key Features

• 2″ and 5″ angular accuracy options

• Prism measurement range up to 5000 m

• Reflectorless measurement up to 1000 m or 1500 m

• Dual-axis compensation

• Guide Light for stakeout

• Laser plummet

• Dual-side LCD displays

• 24-key alphanumeric keyboard

• Dedicated trigger key and hot keys

• Internal memory for up to 96,000 data blocks

• USB and Bluetooth data transfer

• Up to 16 hours of operating time

• IP55 protection

Why Choose the SOUTH N6+?

The N6+ is a good choice for surveyors who prefer a conventional total station with straightforward controls and long measurement range. Its 5000 m prism range is suitable for large construction and engineering sites, while reflectorless measurement provides flexibility when direct prism placement is difficult.

The dedicated hot keys and trigger key allow frequently used operations to be accessed quickly. Functions such as resection, remote elevation measurement, missing-line measurement, area calculation and stakeout support common field workflows without requiring an external controller.

For survey companies looking for a mature and practical SOUTH total station rather than an Android-based instrument, the N6+ provides a balanced combination of measurement range, field functions and operating reliability.

Core Specifications

• Model: SOUTH N6+

• Type: Conventional Total Station

• Angular Accuracy: 2″ / 5″

• Prism Range: Up to 5000 m

• Reflectorless Range: Up to 1000 m / 1500 m depending on configuration

• Dual-Axis Compensator: ±4′ working range

• Compensator Accuracy: 1″

• Telescope Magnification: 30×

• Display: Dual-side LCD

• Keyboard: 24-key alphanumeric keypad

• Internal Memory: Up to 96,000 data blocks

• Data Interface: USB and Bluetooth

• Guide Light: Integrated

• Laser Plummet: Integrated

• Operating Time: Up to 16 hours

• Protection Rating: IP55

• Operating Temperature: -20°C to +50°C

Applications

• Topographic surveying

• Construction surveying

• Engineering surveying

• Road and infrastructure projects

• Cadastral surveying

• Stakeout and layout

• Area and volume calculation

• Remote elevation measurement

• General land surveying
