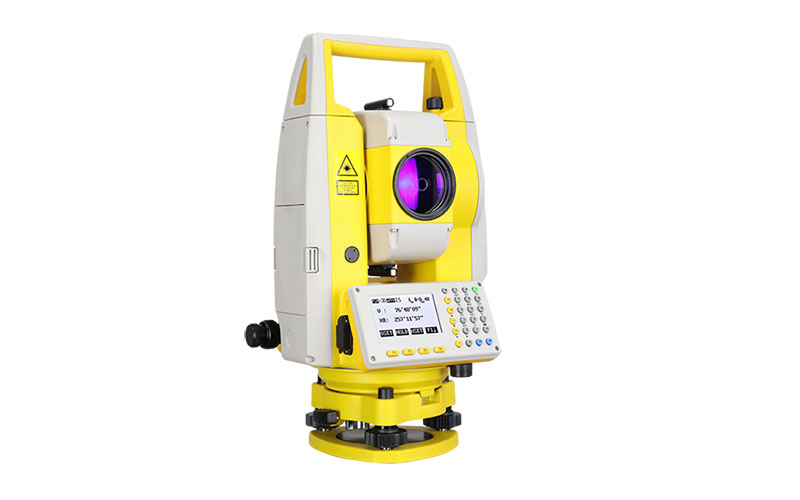

SOUTH NTS-332R10 Total Station

The SOUTH NTS-332R10 is an entry-level total station designed for practical surveying and construction applications. It combines 2″ angular accuracy with a 1000 m reflectorless range and up to 5000 m prism measurement.

The instrument uses an easy-to-read 2.7-inch LCD and an ergonomic alphanumeric keypad for straightforward field operation. Its onboard software includes functions for data input, measurement, stakeout and road surveying, making it suitable for common field tasks without requiring a separate data collector for basic work.

The NTS-332R10 also supports USB data transfer and Bluetooth communication, providing simple options for moving survey data between the instrument and external devices.

Key Features

• 2″ angular accuracy

• 1000 m reflectorless measurement

• 5000 m single-prism measurement

• 3 mm + 2 ppm reflectorless distance accuracy

• 2 mm + 2 ppm prism distance accuracy

• Fast distance measurement

• 2.7-inch LCD display

• 28-key alphanumeric keyboard

• Simple onboard surveying software

• Data input, measurement and stakeout functions

• Road surveying functions

• USB flash drive interface

• Bluetooth data transfer

• Laser plummet

• Dual-axis liquid compensator

• Up to 8 hours of operating time

• IP54 protection

Why Choose the SOUTH NTS-332R10?

The NTS-332R10 is aimed at users who need a practical total station for routine surveying without the additional complexity of robotic or Android-based instruments. Its 2″ angular accuracy and long reflectorless range cover many everyday construction and land surveying requirements.

The onboard software includes commonly used measurement, stakeout and road functions, allowing surveyors to perform basic field work directly on the instrument. The simple LCD and physical keypad are also familiar to users who prefer conventional total station operation.

For distributors and survey teams looking for an economical SOUTH total station, the NTS-332R10 offers a straightforward combination of measurement range, essential field functions and simple data connectivity.

Core Specifications

• Model: SOUTH NTS-332R10

• Type: Entry-Level Total Station

• Angular Accuracy: 2″

• Prism Range: Up to 5000 m

• Reflectorless Range: Up to 1000 m

• Prism Distance Accuracy: 2 mm + 2 ppm

• Reflectorless Distance Accuracy: 3 mm + 2 ppm

• Telescope Magnification: 30×

• Display: 2.7-inch LCD

• Keyboard: 28-key alphanumeric keypad

• Distance Measurement Time: About 1.2 seconds in fine mode

• Internal Memory: Up to 16,000 points

• Data Interface: USB flash drive and Bluetooth

• Compensator: Dual-axis liquid

• Laser Plummet: Integrated

• Operating Time: Up to 8 hours

• Protection Rating: IP54

• Operating Temperature: -20°C to +50°C

Applications

• Construction surveying

• Topographic surveying

• Land surveying

• Road surveying

• Cadastral surveying

• Stakeout

• Road measurement

• General field data collection
