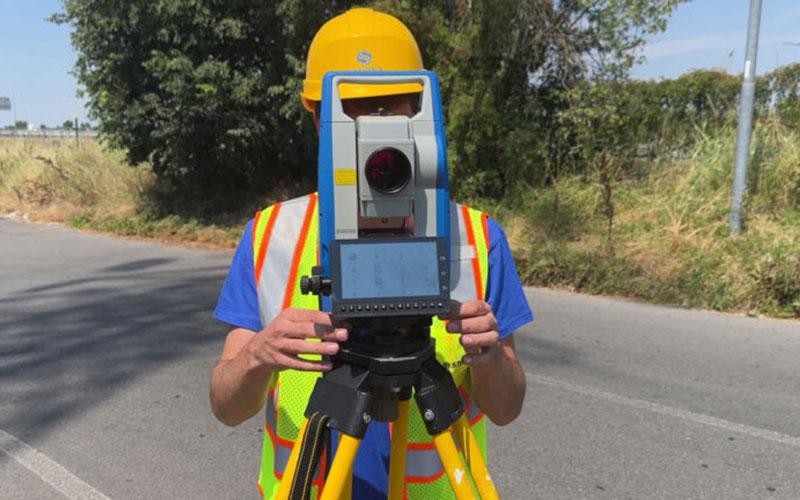

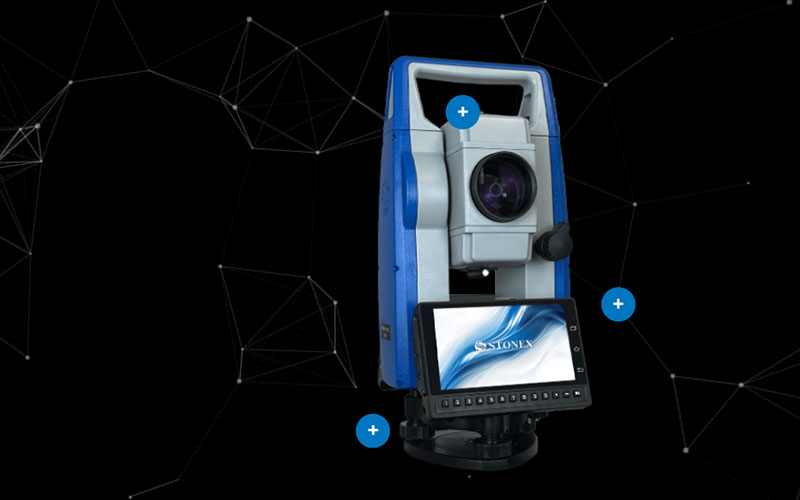

STONEX R40 Mechanical Android Total Station

The STONEX R40 is a mechanical total station that combines conventional instrument operation with Android-based field software. It is available in 1″ and 2″ angular accuracy versions and provides long-range prism and reflectorless measurement for a wide range of surveying tasks.

The R40 measures up to 5000 m with a prism and up to 1000 m without a prism. Its Android 11 operating system and Cube-a onboard software provide a modern digital workflow, while dual 5.5-inch displays and a physical keypad support efficient field operation.

With Bluetooth, Wi-Fi and built-in GSM connectivity, the R40 can also integrate GNSS survey data and support connected field workflows.

Key Features

• 1″ and 2″ angular accuracy options

• Prism measurement range up to 5000 m

• Reflectorless measurement up to 1000 m

• Prism distance accuracy of 2 mm + 2 ppm

• Reflectorless distance accuracy of 3 mm + 2 ppm

• Android 11 operating system

• Cube-a onboard surveying software

• Dual 5.5-inch color displays

• Physical keypad and trigger key

• 4GB RAM and 64GB internal storage

• Bluetooth and Wi-Fi connectivity

• Built-in GSM communication

• IP55 protection

Why Choose the STONEX R40?

The R40 is a good choice for surveyors who prefer a mechanical total station but want the convenience of a modern Android interface. Its long measurement range covers common surveying and construction requirements, while Cube-a provides digital tools for field data collection and project management.

The dual displays and physical keypad allow operators to work efficiently in the field, while the integrated GSM, Bluetooth and Wi-Fi functions provide additional connectivity options. Cube-a can also manage GNSS and total station information, making the R40 suitable for mixed surveying workflows.

Core Specifications

• Model: STONEX R40

• Type: Mechanical Android Total Station

• Angular Accuracy: 1″ / 2″

• Prism Range: Up to 5000 m

• Reflectorless Range: Up to 1000 m

• Prism Distance Accuracy: 2 mm + 2 ppm

• Reflectorless Distance Accuracy: 3 mm + 2 ppm

• Operating System: Android 11

• Onboard Software: Cube-a

• Display: Dual 5.5-inch color TFT LCD displays

• Memory: 4GB RAM + 64GB ROM

• Connectivity: GSM, Bluetooth, Wi-Fi

• Protection Rating: IP55

Applications

• Topographic surveying

• Construction surveying

• Engineering projects

• Road surveying

• Cadastral surveying

• Stakeout and layout

• GNSS and total station integrated workflows

• General field measurement
