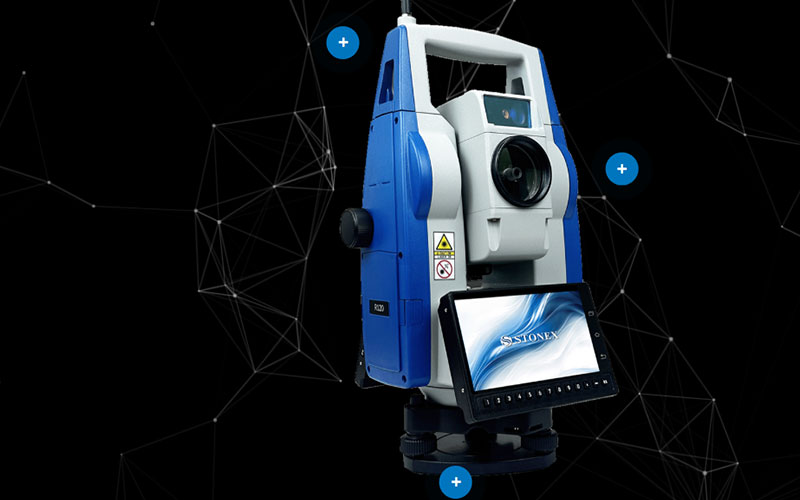

STONEX R120 Robotic Total Station

The STONEX R120 is an Android robotic total station designed to combine automated surveying with straightforward digital field operation. It is available with 1″, 2″ and 5″ angular accuracy options and provides long-range prism and reflectorless measurement.

With a motorized rotation speed of up to 60°/s and Automatic Prism Centering, the R120 can quickly position and track targets during robotic surveying. Its 5.5-inch color touchscreen and Android operating system provide an intuitive interface for field data management.

The R120 also supports Cube-a onboard software, Bluetooth, Wi-Fi and GSM 4G connectivity, making it suitable for connected surveying workflows and one-person field operation.

Key Features

• 1″, 2″ and 5″ angular accuracy options

• Motorized rotation speed up to 60°/s

• Prism measurement range up to 3500 m

• Reflectorless measurement up to 1000 m

• Prism distance accuracy of 1 mm + 1 ppm

• Automatic Prism Centering

• Android operating system

• Cube-a onboard surveying software

• 5.5-inch color touchscreen

• 4GB RAM and 64GB internal storage

• Bluetooth, Wi-Fi and GSM 4G connectivity

• Support for robotic and OnePole surveying workflows

Why Choose the STONEX R120?

The R120 offers a practical entry point into robotic total station surveying while retaining the digital workflow advantages of Android. Its 60°/s motor speed provides efficient instrument movement, while Automatic Prism Centering reduces manual target alignment during field work.

The combination of a touchscreen interface, Cube-a software and integrated wireless communication makes the R120 suitable for surveyors who want a more connected and streamlined workflow. Its compatibility with STONEX OnePole solutions also allows total station and GNSS measurements to be combined when project conditions require both technologies.

Core Specifications

• Model: STONEX R120

• Type: Robotic Total Station

• Angular Accuracy: 1″ / 2″ / 5″

• Prism Range: Up to 3500 m

• Reflectorless Range: Up to 1000 m

• Reflectorless Range for 2″ Version: Up to 800 m

• Prism Distance Accuracy: 1 mm + 1 ppm

• Reflectorless Distance Accuracy: 2 mm + 2 ppm

• Motor Speed: Up to 60°/s

• Operating System: Android

• Onboard Software: Cube-a

• Display: 5.5-inch color touchscreen

• Memory: 4GB RAM + 64GB internal storage

• Connectivity: Bluetooth, Wi-Fi, GSM 4G

• Protection Rating: IP55

Applications

• Topographic surveying

• Construction layout

• Engineering surveying

• Cadastral surveying

• Road and infrastructure surveying

• Robotic one-person surveying

• GNSS and total station integrated surveying

• Field data collection and stakeout
