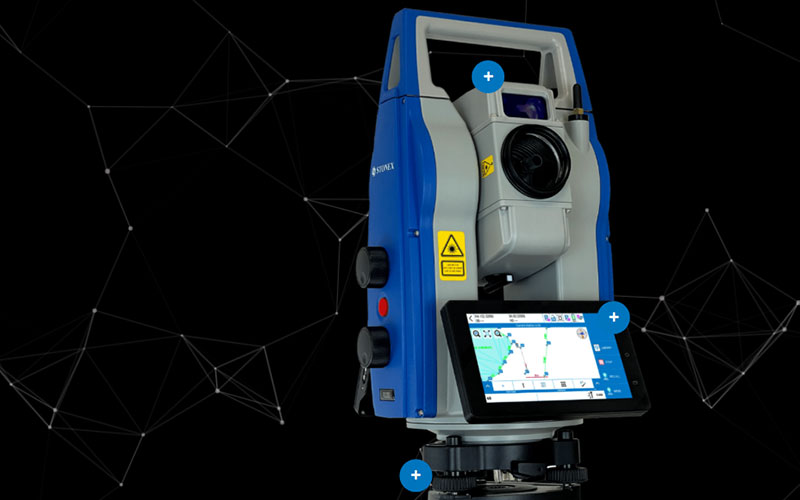

STONEX R180 Robotic Total Station

The STONEX R180 is a high-precision robotic total station designed for fast and efficient surveying. It combines high-speed motorized positioning, long-range distance measurement and Android-based field operation in a single instrument.

Available in 0.5″, 1″ and 2″ angular accuracy versions, the R180 can measure up to 6000 m with a prism and up to 1000 m without a prism, depending on the selected version. Its 180°/s rotation speed supports rapid target positioning and prism tracking in demanding field conditions.

The R180 runs Android with Cube-a onboard software, allowing total station and GNSS survey data to be managed within the same workflow. A built-in camera, dual color displays and automatic prism functions further improve field efficiency.

Key Features

• 0.5″, 1″ and 2″ angular accuracy options

• Motorized rotation speed up to 180°/s

• Prism measurement range up to 6000 m

• Reflectorless measurement up to 1000 m

• Prism distance accuracy of 1 mm + 1 ppm

• Android operating system with Cube-a onboard software

• Built-in camera for visual field operation and collimation assistance

• Dual 6-inch color displays

• 360° prism search and Automatic Prism Centering

• Bluetooth, Wi-Fi and GSM 4G connectivity

• IP65 protection

Why Choose the STONEX R180?

The R180 is well suited to survey teams that need robotic operation without sacrificing measurement range or field flexibility. Its 180°/s motor speed allows fast instrument movement and target tracking, while the long prism range supports larger survey areas.

The Android and Cube-a platform provides a familiar interface and allows GNSS and total station data to be combined within one project. The built-in camera and dual displays also give operators additional visual tools when locating and measuring targets.

For professional surveying, construction and engineering projects, the R180 provides a strong combination of robotic control, high measurement performance and integrated field software.

Core Specifications

• Model: STONEX R180

• Type: Robotic Total Station

• Angular Accuracy: 0.5″ / 1″ / 2″

• Prism Range: Up to 6000 m

• Reflectorless Range: Up to 1000 m, depending on version

• Prism Distance Accuracy: 1 mm + 1 ppm

• Reflectorless Distance Accuracy: 2 mm + 2 ppm

• Motor Speed: Up to 180°/s

• Operating System: Android

• Onboard Software: Cube-a

• Display: Dual 6-inch color touch displays

• Connectivity: Bluetooth, Wi-Fi, GSM 4G

• Protection Rating: IP65

Applications

• Topographic surveying

• Construction surveying

• Engineering surveying

• Road and infrastructure projects

• Cadastral surveying

• Robotic one-person surveying

• GNSS and total station integrated workflows

• High-efficiency field measurement
