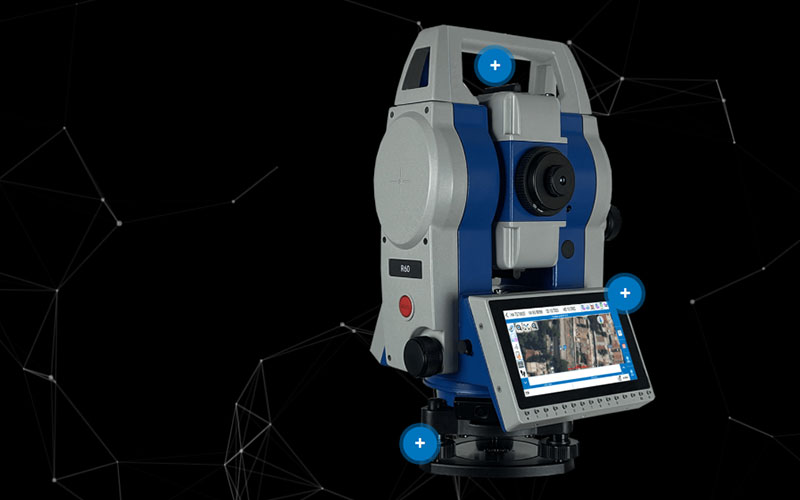

STONEX R60 Android Total Station

The STONEX R60 is an Android total station designed for modern surveying workflows that combine total station and GNSS measurements. It is available in 1″ and 2″ versions and provides up to 5000 m prism measurement and 1000 m reflectorless measurement.

The R60 runs Android 11 with Cube-a surveying software onboard. Its 5.5-inch touchscreen provides a familiar interface for managing field jobs, while Bluetooth and Wi-Fi support wireless data exchange.

A dedicated GNSS connector is integrated into the instrument handle, allowing a GNSS receiver to be positioned correctly relative to the total station axis. This makes the R60 particularly suitable for mixed GNSS and total station surveying workflows.

Key Features

• 1″ and 2″ angular accuracy versions

• Up to 5000 m prism measurement

• Up to 1000 m reflectorless measurement

• 2 mm + 2 ppm prism measurement accuracy

• 3 mm + 2 ppm reflectorless measurement accuracy

• Android 11 operating system

• Cube-a surveying software onboard

• 5.5-inch touchscreen display

• GNSS connector integrated into the handle

• Bluetooth and Wi-Fi connectivity

• 2″ version with endless drives

• 1″ version with locking drives

• USB Type-C charging port on the battery

• IP55 protection

Why Choose the STONEX R60?

The main advantage of the R60 is its ability to bring total station and GNSS surveying into a connected workflow. The dedicated GNSS connector helps position a GNSS receiver correctly on the total station, while Cube-a allows data from the two technologies to be exchanged through Bluetooth.

Android 11 provides a familiar touchscreen operating environment and supports background maps and flexible job management. This makes the R60 easier to adapt to field workflows where conventional total station measurements and GNSS positioning are used together.

With long-range prism and reflectorless measurement, the R60 is suitable for construction, engineering and general surveying projects that require both measurement flexibility and digital field connectivity.

Core Specifications

• Model: STONEX R60

• Type: Android Total Station

• Angular Accuracy: 1″ / 2″

• Prism Range: Up to 5000 m

• Reflectorless Range: Up to 1000 m

• Prism Distance Accuracy: 2 mm + 2 ppm

• Reflectorless Distance Accuracy: 3 mm + 2 ppm

• Operating System: Android 11

• Onboard Software: Cube-a

• Display: 5.5-inch touchscreen

• Connectivity: Bluetooth, Wi-Fi

• GNSS Integration: Dedicated GNSS connector on handle

• 2″ Version: Endless drives

• 1″ Version: Locking drives

• Charging: USB Type-C

• Protection Rating: IP55

Applications

• Topographic surveying

• Construction surveying

• Engineering projects

• Road and infrastructure surveying

• Cadastral surveying

• GNSS and total station integrated surveying

• Field mapping

• Stakeout and layout

• General land surveying
