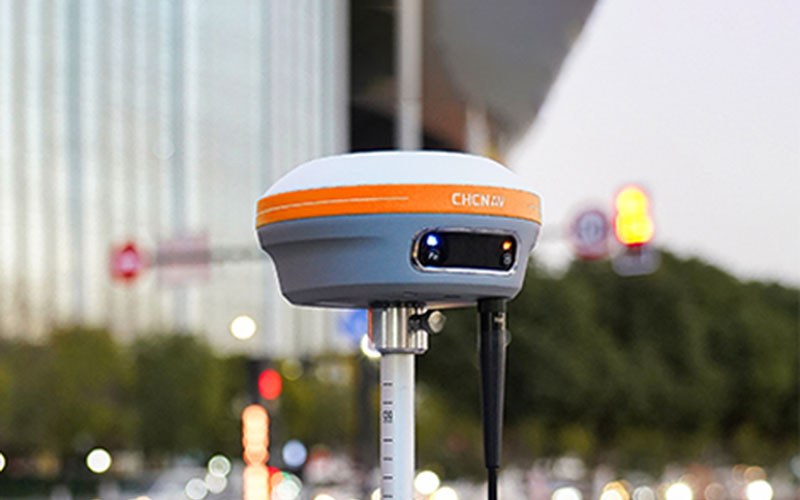

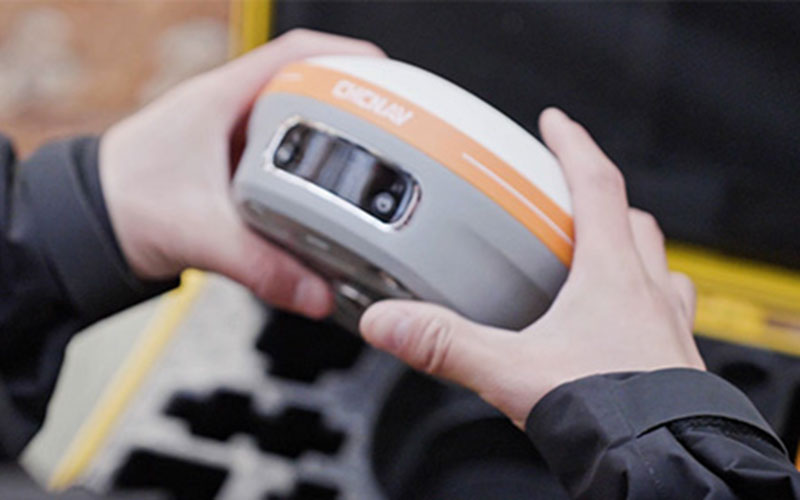

CHCNAV i83 IMU-RTK GNSS Receiver
The CHCNAV i83 is a professional IMU-RTK GNSS receiver designed for survey teams that need dependable positioning, flexible communication and long operating time.
Its 1408-channel GNSS engine tracks major satellite constellations, while the built-in 200 Hz IMU supports pole tilt compensation. The receiver also integrates Wi-Fi, Bluetooth, NFC, 4G and UHF communication, allowing it to work with different field controllers and RTK correction methods.
One of the i83's practical advantages is its extended battery endurance. With a 9600 mAh battery, the receiver can operate as an RTK rover for up to 34 hours, making it suitable for long field projects with fewer battery changes.
RTKSurvey.com supplies the CHCNAV i83 for surveying, construction and mapping applications.
Key Features
1408-Channel GNSS
The i83 supports full GNSS positioning with GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS, providing a broad satellite-tracking capability for professional RTK surveying.
Calibration-Free IMU
The built-in IMU supports automatic pole tilt compensation up to 60°, allowing surveyors to collect points without maintaining perfect vertical alignment.
Extensive Connectivity
Wi-Fi, Bluetooth, NFC, 4G and UHF are integrated into the receiver, giving survey teams several options for data transfer, correction services and controller connections.
Long Battery Runtime
The 9600 mAh battery provides up to 34 hours of RTK rover operation and up to 16 hours of RTK base operation under the manufacturer's specified conditions.
Rugged Construction
The i83 uses a magnesium alloy body and is rated IP67 for outdoor use. It also has a specified 2 m drop resistance.
Built-In Status Display
A 1.1-inch color OLED display provides field information about receiver status without requiring a separate device for basic monitoring.

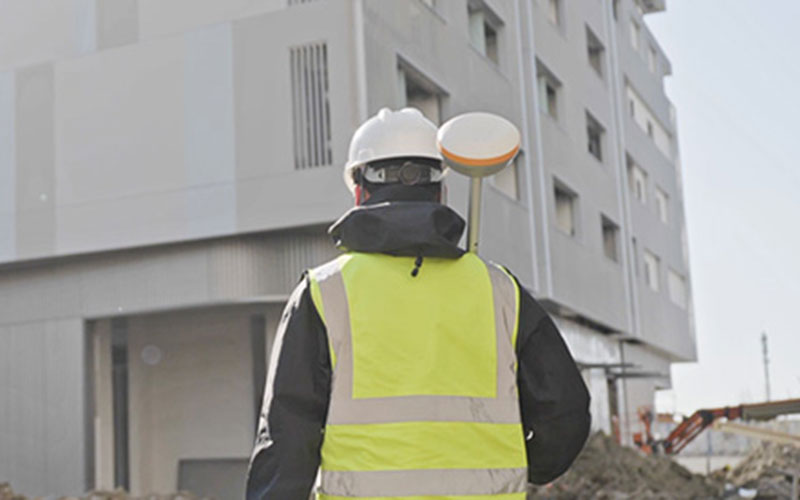

Applications
The CHCNAV i83 is suitable for:
Topographic surveying
Construction site layout
Excavation control
As-built surveying
Engineering surveying
Mapping
Road surveying
Cadastral surveying
Long-duration field projects
Technical Specifications
GNSS and IMU
GNSS: Full GNSS
Channels: 1408
IMU: 200 Hz
Maximum positioning precision: 0.8 cm H / 1.5 cm V
Tilt compensation: up to 60°
Communication
Cellular: 4G LTE
UHF modem: 410–470 MHz, Rx/Tx
Wireless: Bluetooth, Wi-Fi and NFC
Physical Specifications
Weight: 1.15 kg
Dimensions: 152 × 78 mm
Battery: 9600 mAh
RTK rover operating time: up to 34 hours
RTK base operating time: up to 16 hours
Protection rating: IP67
Drop resistance: 2 m
Operating temperature: -40°C to +65°C
Why Choose the CHCNAV i83?
The i83 is a practical choice for survey teams that prioritize operating time and communication flexibility. Rather than focusing on specialized visual or laser functions, it provides a balanced RTK platform with multiple connectivity options and extended battery endurance.
For long-duration construction, topographic and engineering surveys, the i83 can reduce the need for frequent battery replacement while maintaining a familiar GNSS RTK workflow.
RTKSurvey.com supplies the CHCNAV i83 for professional surveying and mapping projects.
