Welcome to RTKSurvey.com

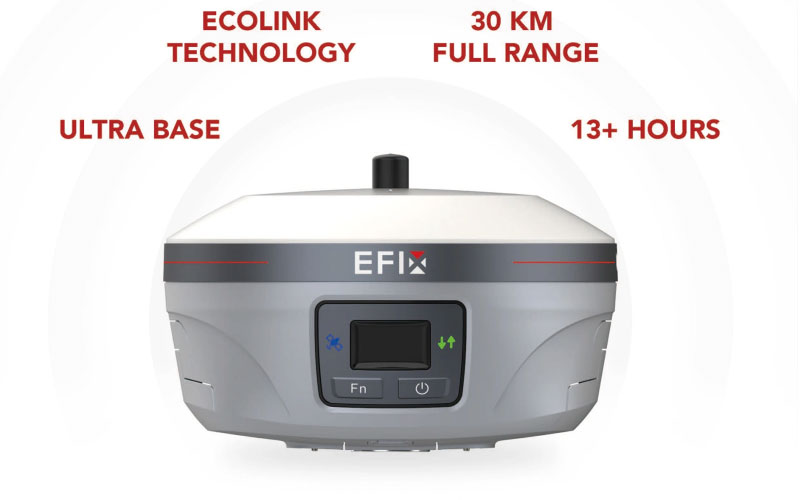

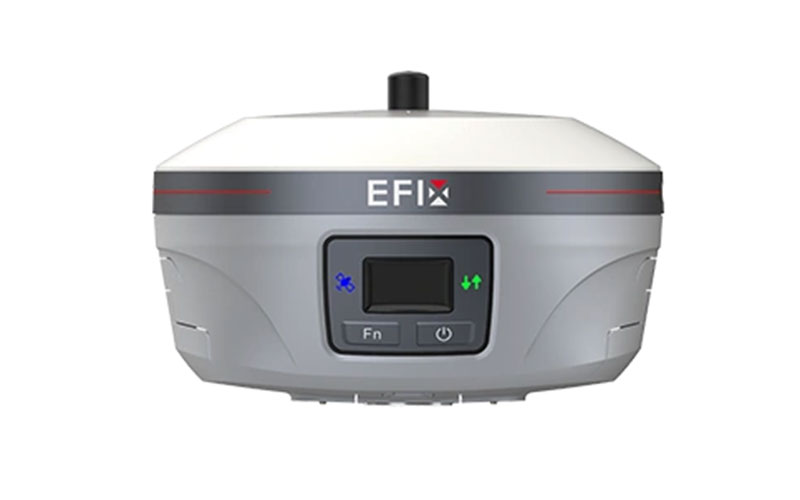

EFIX eBase GNSS RTK Base Receiver
The EFIX eBase is an integrated professional GNSS RTK base receiver designed for UHF base-rover surveying workflows. It combines multi-constellation GNSS positioning, a 5 W internal UHF radio, 4G connectivity and a high-capacity battery in a single field unit. This reduces the need for separate external radios, batteries and cables. RTKSurvey.com supplies the EFIX eBase for surveying, construction and engineering projects that require reliable RTK correction transmission.
Key Features:
1608-channel multi-constellation GNSS
Integrated 5 W UHF radio
Typical UHF working range of approximately 15 km
Up to 25 km in suitable open conditions
Integrated 4G modem
Supports RTCM correction output and NTRIP workflows
Dual 7000 mAh batteries
Up to 12 hours of UHF operation
Up to 15 hours of static operation
Rugged IP67 field housing
2 m pole-drop resistance
Core Specifications:
GNSS channels: 1608
RTK accuracy: H 8 mm + 1 ppm RMS; V 15 mm + 1 ppm RMS
PPK accuracy: H 3 mm + 1 ppm RMS; V 5 mm + 1 ppm RMS
UHF frequency: 410–470 MHz
UHF transmit power: up to 5 W
Typical UHF range: approximately 15 km
Maximum range: up to 25 km under optimal conditions
Cellular communication: integrated 4G
Battery: 2 × 7000 mAh
UHF operating time: approximately 8–12 hours
Static operating time: up to 15 hours
Data storage: 8 GB
Positioning rate: up to 10 Hz
Weight: approximately 1.73 kg
Protection: IP67
Operating temperature: -40°C to +65°C
Applications:
RTK base-rover surveying
Land surveying
Topographic surveying
Construction surveying
Engineering projects
Road and infrastructure surveying
GNSS correction transmission
Static GNSS surveying
