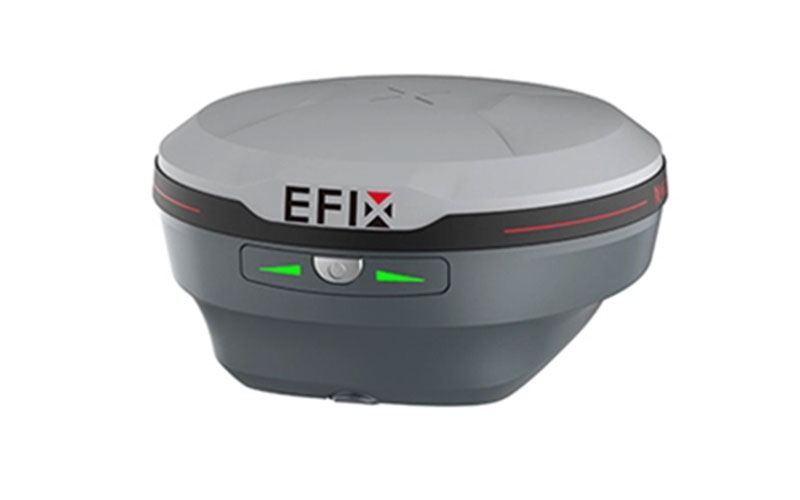

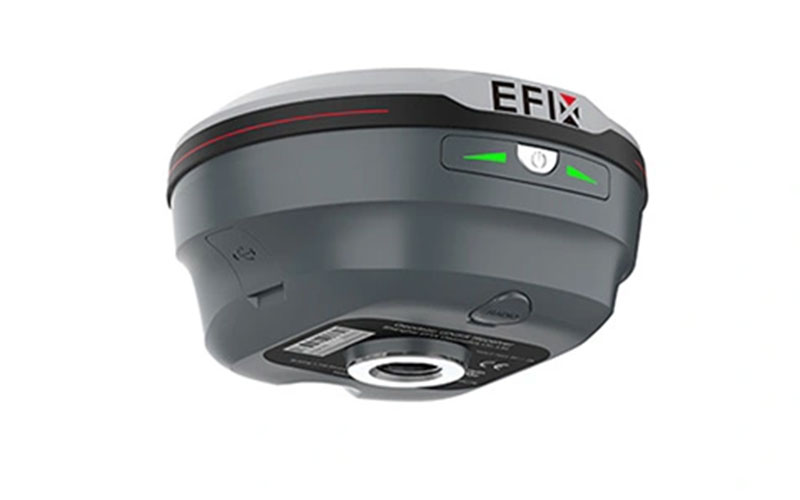

EFIX F6 Vision Visual IMU GNSS RTK Receiver
The EFIX F6 Vision is a compact and lightweight Vision IMU-RTK GNSS receiver designed for efficient field surveying. It combines 1608-channel GNSS, Full-Star positioning technology, 4D Auto-IMU and AR vision stakeout in a portable receiver. RTKSurvey.com supplies the EFIX F6 Vision for surveying, construction layout, engineering and GNSS data collection.

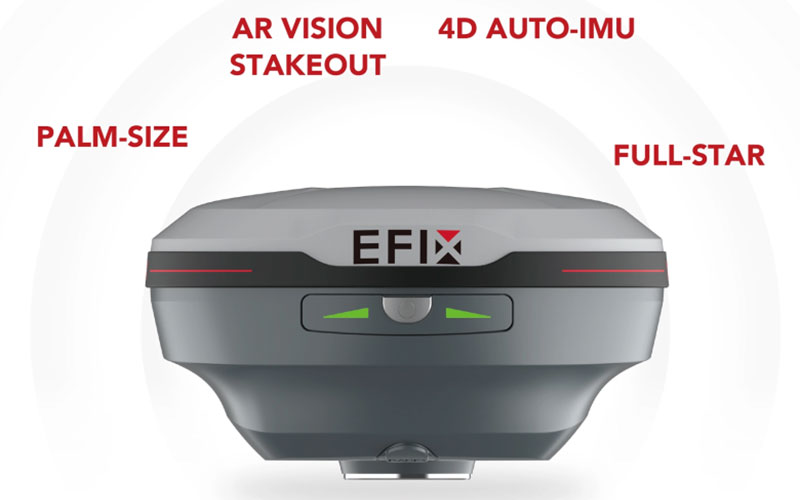

Key Features:
1608-channel multi-constellation GNSS
Full-Star technology for multi-frequency positioning
4D Auto-IMU with up to 60° tilt compensation
200 Hz IMU update rate
2 MP camera for AR vision stakeout
Compact palm-size design
IP68 protection and IK08 impact protection
Supports up to 17 hours of RTK rover operation
USB Type-C charging and external power support
Core Specifications:
GNSS channels: 1608
RTK accuracy: H 8 mm + 1 ppm RMS; V 15 mm + 1 ppm RMS
PPK accuracy: H 3 mm + 1 ppm RMS; V 5 mm + 1 ppm RMS
IMU: 4D Auto-IMU
Tilt compensation: up to 60°
IMU update rate: 200 Hz
Camera: 2 MP
Video frame rate: 30 fps
UHF: 410–470 MHz
Battery operation: up to 17 hours in UHF/4G RTK mode; up to 10 hours with vision stakeout
Weight: approximately 450 g
Protection: IP68, IK08
Pole-drop resistance: 2 m
Applications:
Land surveying
Topographic surveying
Construction layout
CAD stakeout
Engineering surveying
Road and infrastructure work
GNSS field data collection
AR-assisted surveying
