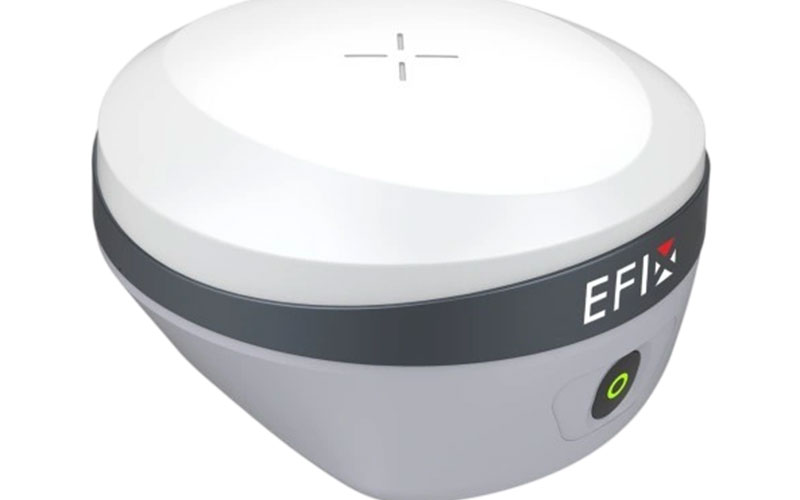

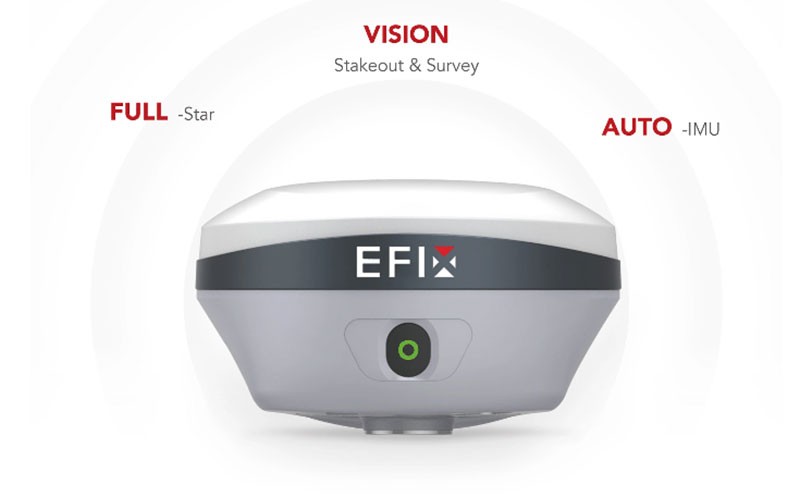

EFIX F8 Vision Visual IMU GNSS RTK Receiver

The EFIX F8 Vision is a pocket-size Vision IMU-RTK GNSS receiver designed to improve efficiency in surveying and construction fieldwork. It combines 1608-channel multi-constellation GNSS, 4D Auto-IMU and camera-based vision functions for visual surveying and AR-assisted stakeout. RTKSurvey.com supplies the EFIX F8 Vision for professional land surveying, construction layout and engineering applications.

Key Features:

• 1608-channel multi-constellation GNSS

• 4D Auto-IMU with up to 60° tilt compensation

• 200 Hz IMU update rate

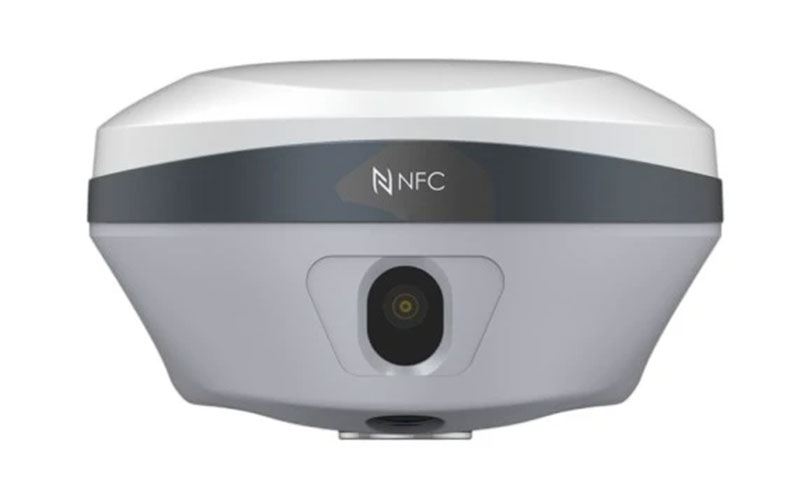

• 2 MP camera for vision surveying and stakeout

• Visual survey range of approximately 2–10 m

• Integrated UHF communication

• Compact and portable receiver design

• Supports AR vision workflows through EFIX eField

Core Specifications:

• GNSS channels: 1608

• RTK accuracy: H 8 mm + 1 ppm RMS; V 15 mm + 1 ppm RMS

• PPK accuracy: H 3 mm + 1 ppm RMS; V 5 mm + 1 ppm RMS

• IMU: 4D Auto-IMU

• Tilt compensation: 0–60°

• IMU update rate: 200 Hz

• Camera: 2 MP

• Camera field of view: approximately 75°

• Visual survey accuracy: approximately 2–4 cm

• Visual survey range: approximately 2–10 m

• UHF: 410–470 MHz

• Weight: approximately 750 g

• Operating temperature: -40°C to +65°C

Applications:

• Land surveying

• Topographic surveying

• Construction stakeout

• Engineering surveying

• Road surveying

• GIS field data collection

• Visual point measurement

• AR-assisted construction layout
