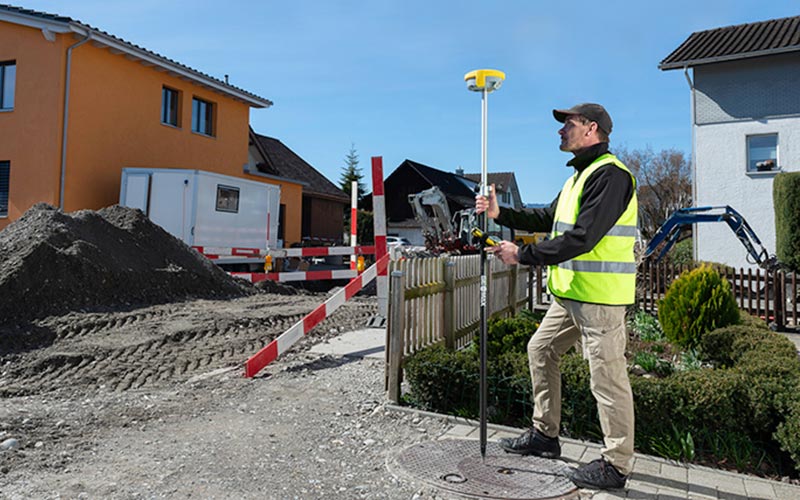

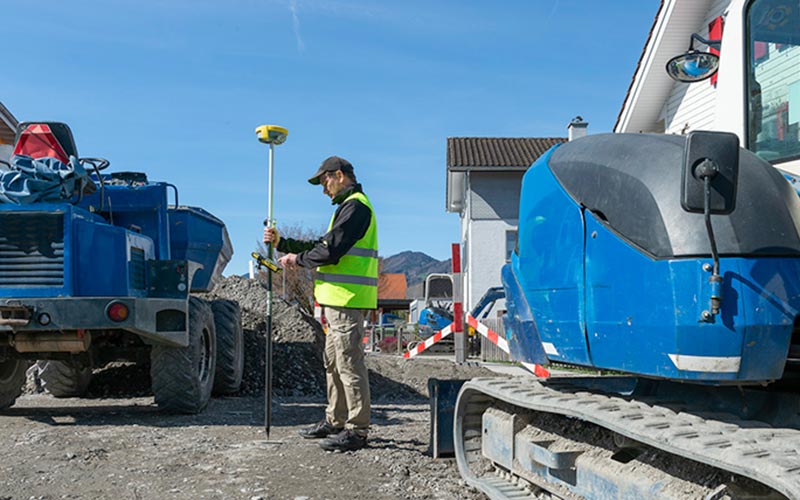

GeoMax Zenith16 GNSS RTK Receiver

The GeoMax Zenith16 GNSS RTK Receiver is a multi-frequency, multi-constellation surveying receiver designed for reliable positioning in land surveying, construction and engineering applications. With a 555-channel GNSS engine, RTK positioning and support for precise point positioning, the Zenith16 provides a practical solution for professional field data collection.

The receiver can be combined with GeoMax field controllers and X-PAD software to create an integrated workflow from field measurement to office data processing. RTKSurvey.com supplies the GeoMax Zenith16 for surveying professionals and equipment distributors looking for a dependable GNSS RTK solution.

Key Features

• 555-channel multi-frequency GNSS engine
• Multi-constellation satellite tracking
• RTK positioning with centimeter-level accuracy
• Support for PPP through TerraStar-C Pro service
• RTK reference station functionality
• Compatible with GeoMax X-PAD software and field controllers
• Zenith Manager configuration support
• Designed for surveying, construction and engineering field work

Core Specifications

GNSS Engine: NovAtel OEM719
Channels: 555
GNSS Tracking: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
RTK Accuracy: H 8 mm + 1 ppm, V 15 mm + 1 ppm
Network RTK Accuracy: H 8 mm + 0.5 ppm, V 15 mm + 0.5 ppm
Static Accuracy: H 3 mm + 0.5 ppm, V 5 mm + 0.5 ppm
PPP: TerraStar-C Pro supported
Maximum Update Rate: 5 Hz, 20 Hz optional
Initialization Time: Typically 4 seconds
Communication: Bluetooth, USB, RS232, WLAN
Internal Memory: 8 GB
Protection: IP68
Operating Temperature: -40°C to +65°C
Weight Without Battery: Approximately 1.14–1.18 kg
Operating Time: Up to 9 hours static / 6 hours rover

Applications

• Land and topographic surveying
• Construction surveying and layout
• Engineering surveying
• Cadastral and mapping projects
• GNSS control and reference station work
• Field data collection and positioning
