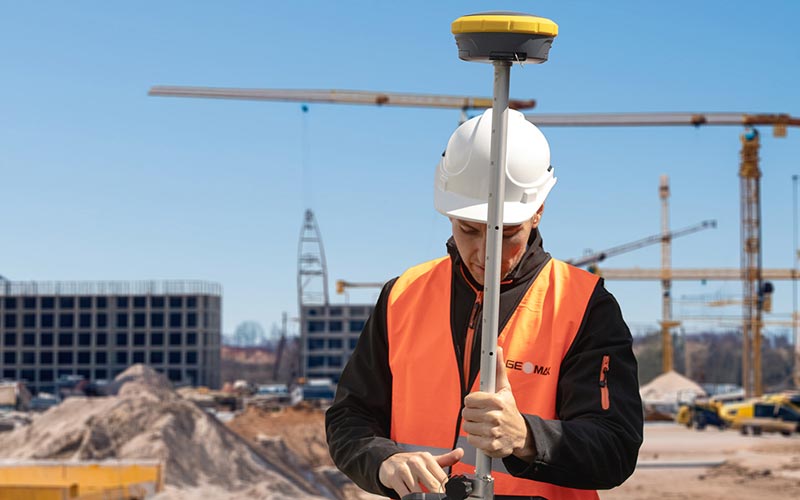

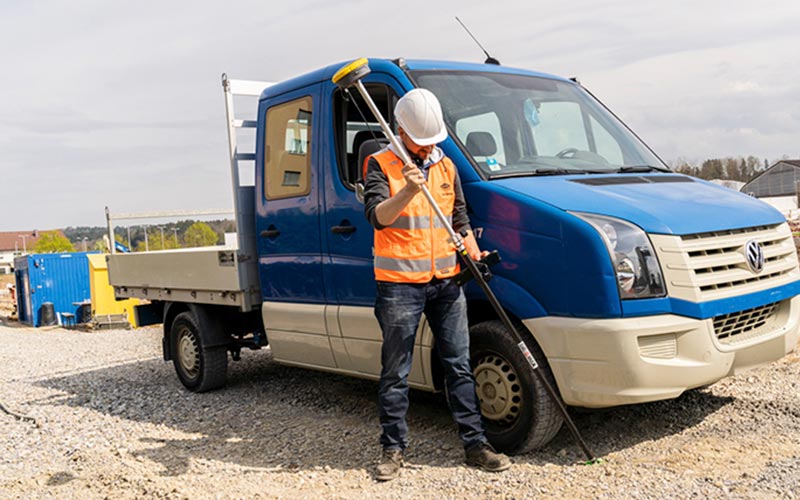

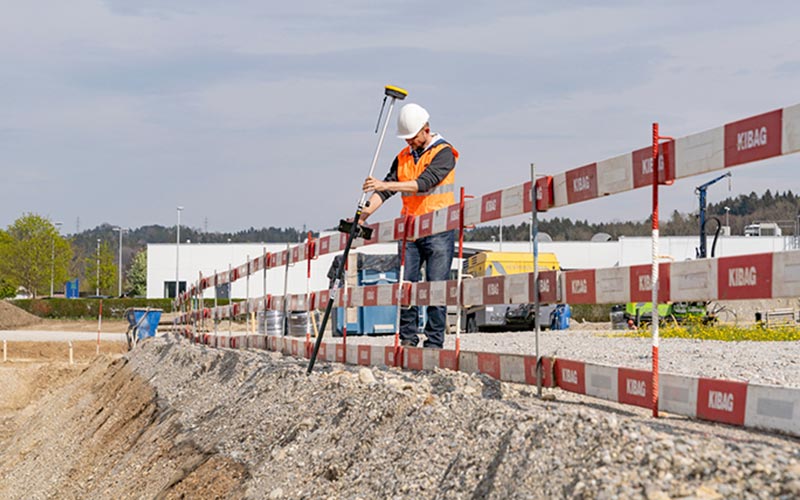

GeoMax Zenith60 GNSS RTK Receiver

The GeoMax Zenith60 GNSS RTK Receiver is a multi-frequency smart antenna designed for efficient surveying and construction work. Its calibration-free tilt compensation allows surveyors to measure points without keeping the pole perfectly vertical, helping improve productivity when working around obstacles or at difficult-to-access locations.

The Zenith60 supports current GNSS constellations and signals and combines GNSS positioning with 4G LTE communication and flexible UHF configurations. It can be integrated with GeoMax X-PAD field software and compatible controllers for field surveying and stakeout workflows. RTKSurvey.com supplies the GeoMax Zenith60 for professional surveying and construction applications.

Key Features

• More than 800 GNSS channels
• Multi-frequency and multi-constellation GNSS tracking
• Calibration-free tilt compensation
• IMU-based tilt measurement
• 4G LTE cellular communication
• SATEL TR4+ UHF radio available depending on configuration
• RTK reference station functionality
• Support for TerraStar-C Pro PPP on compatible configurations
• Compatible with GeoMax X-PAD software and field controllers
• IP68 protection for field operation

Core Specifications

GNSS Engine: Multi-frequency GNSS receiver
Channels: 800+
GNSS Tracking: GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC and SBAS
RTK Accuracy: H 8 mm + 1 ppm, V 15 mm + 1 ppm
Network RTK Accuracy: H 8 mm + 0.5 ppm, V 15 mm + 0.5 ppm
Static Accuracy: H 3 mm + 0.5 ppm, V 5 mm + 0.5 ppm
Tilt Compensation: Calibration-free IMU technology
Maximum Update Rate: Up to 20 Hz depending on configuration
Initialization Time: Typically 4 seconds
Communication: Bluetooth, USB, RS232, WLAN and 4G
UHF Radio: Configuration dependent
PPP: TerraStar-C Pro supported on compatible configuration
Internal Memory: 8 GB
Storage: Removable microSD card
Protection: IP68
Operating Temperature: -40°C to +65°C
Weight Without Battery: Approximately 1.14 kg
Operating Time: Up to 12 hours static / 11 hours rover

Applications

• Land and topographic surveying
• Construction surveying and stakeout
• Engineering and infrastructure projects
• Cadastral surveying
• Point collection in difficult-to-access locations
• GNSS control and reference station work
