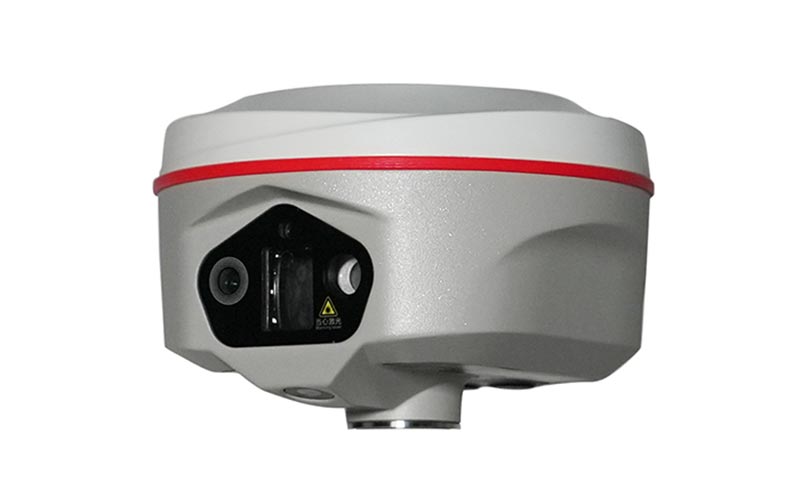

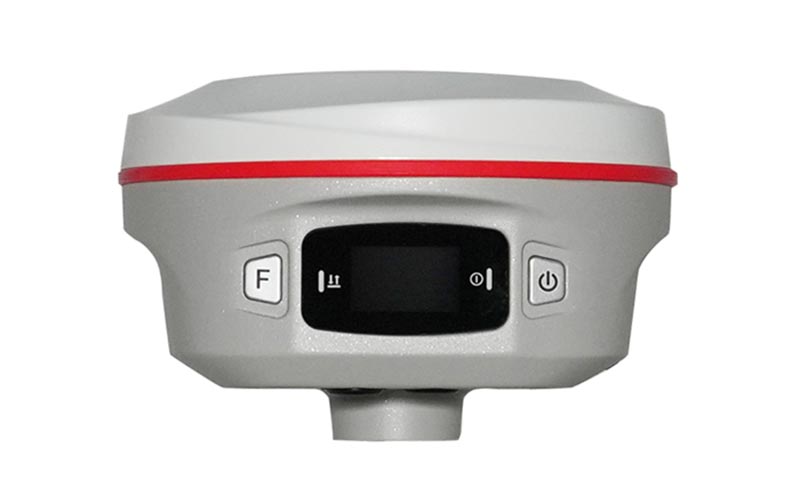

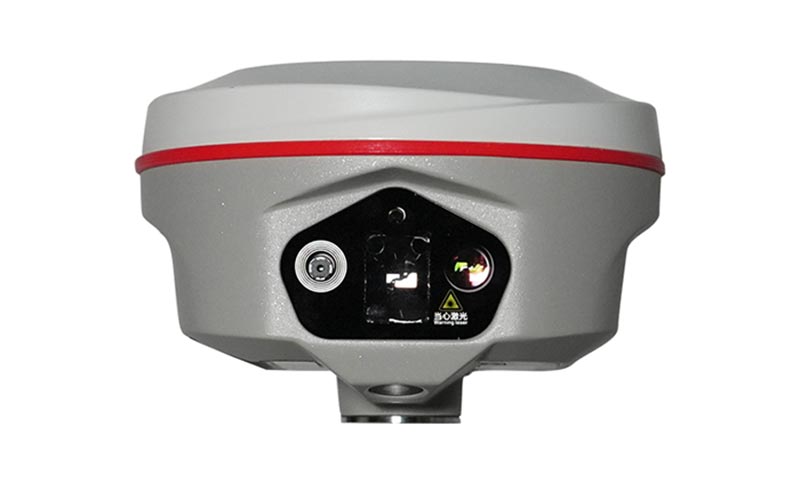

KOLIDA K60 Max Pro Laser GNSS RTK Receiver
The KOLIDA K60 Max Pro is a laser GNSS RTK receiver designed for high-precision field surveying with integrated laser measurement, IMU tilt compensation and camera-based measurement. Its laser system provides a range of 150 m under standard conditions and up to 200 m under optimal conditions.
RTKSurvey supplies the KOLIDA K60 Max Pro for surveying applications that require flexible target measurement, visual positioning and efficient field data collection.
Key Features
• 1698-channel GNSS positioning, with 1808 channels optional
• Green laser ranging up to 150 m standard and 200 m in optimal conditions
• 400 Hz sixth-generation IMU
• IMU tilt capability up to 120°
• 0.05° pitch and roll accuracy and 0.15° heading accuracy
• Triple-camera system for visual measurement and laser targeting
• 8 MP main camera, 8 MP laser-aiding telephoto camera and 2 MP AR camera
• Laser accuracy of ±3–5 mm + 100 ppm
• Photo and video-based coordinate measurement
• 3D modeling through post-processing
• 16 GB internal storage with external USB storage support
Core Specifications
GNSS Channels: 1698; 1808 optional
RTK Accuracy, UHF: H ±8 mm + 1 ppm; V ±15 mm + 1 ppm
RTK Accuracy, Network: H ±8 mm + 0.5 ppm; V ±15 mm + 0.5 ppm
Static Accuracy: H ±2.5 mm + 0.5 ppm; V ±5 mm + 0.5 ppm
Laser Range: 150 m standard; up to 200 m optimal
Laser Accuracy: ±3–5 mm + 100 ppm
IMU: 400 Hz
IMU Tilt: Up to 120°
Pitch & Roll Accuracy: 0.05°
Heading Accuracy: 0.15°
Cameras: 8 MP main + 8 MP telephoto + 2 MP AR
Display: 1.14-inch LED
Storage: 16 GB internal
Operating System: Linux
Web UI: Yes
Applications
• Topographic and engineering surveying
• Laser-based point measurement
• Construction surveying
• Utility and infrastructure measurement
• Long-range target measurement
• AR stakeout
• Visual positioning
• 3D modeling and mapping
• Surveying in complex or difficult-to-access areas
