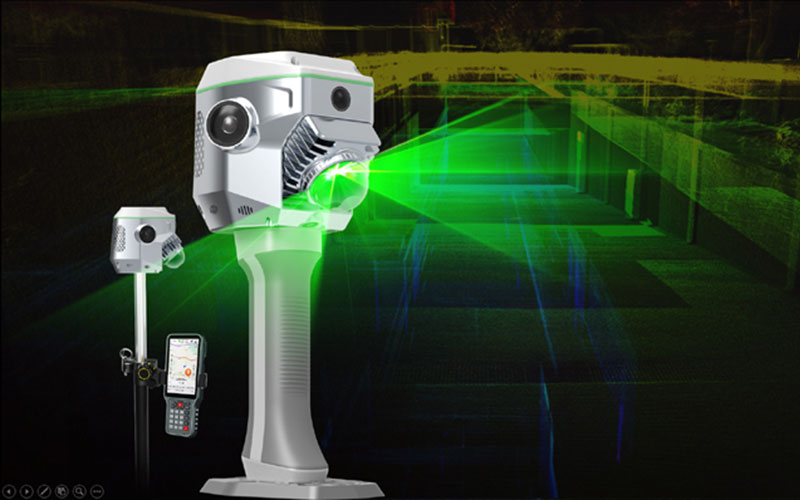

KOLIDA ME Plus GNSS RTK and SLAM System

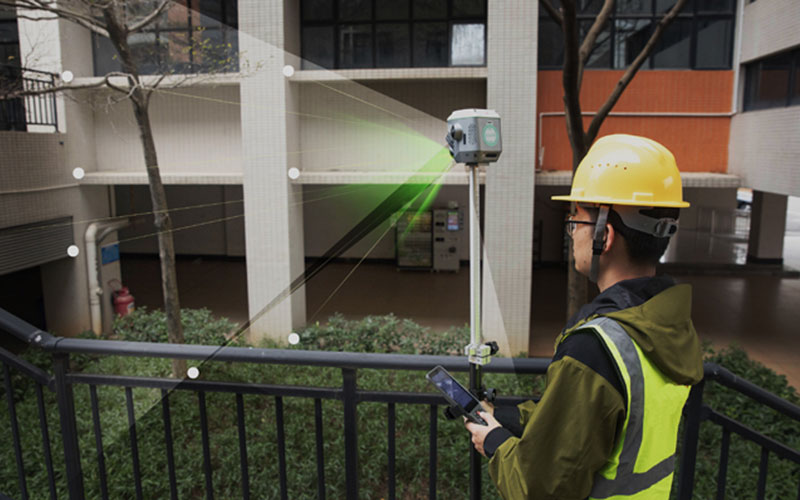

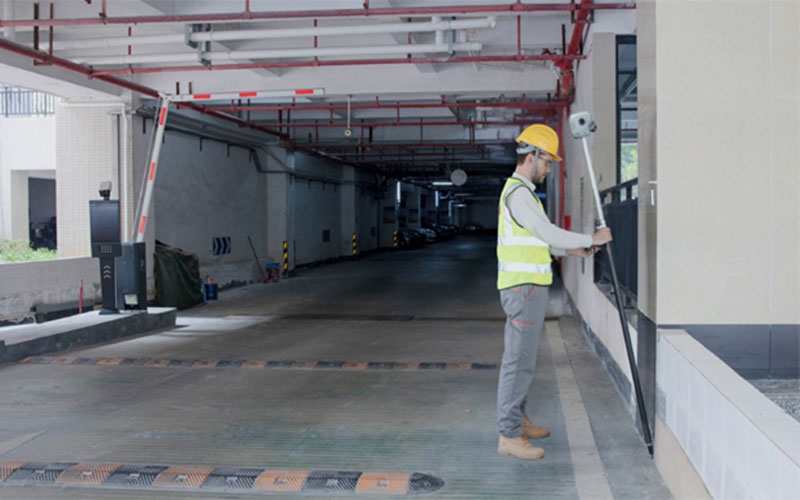

The KOLIDA ME Plus combines GNSS RTK positioning, LiDAR scanning and Visual SLAM in a single surveying system. It is designed for field data collection across open areas as well as environments where GNSS signals are limited, such as tunnels, underground garages, areas beneath bridges and complex construction sites.

RTKSurvey.com supplies the KOLIDA ME Plus for surveying applications that require GNSS positioning, 3D scanning, visual measurement and point cloud data collection in one workflow.

Key Features

• GNSS RTK and SLAM integration for outdoor and GNSS-limited surveying
• 1698-channel GNSS tracking with GPS, GLONASS, BeiDou, Galileo, QZSS and SBAS
• LiDAR scanning range up to 70 m
• LiDAR scanning speed up to 200,000 points per second
• Contactless measurement up to 15 m with 5 cm accuracy
• 3–5 cm positioning capability within a 20 m radius without GNSS signals
• Dual 12 MP panoramic cameras for point cloud colorization
• Front 8 MP and bottom 2 MP cameras for visual measurement and AR stakeout
• Visual positioning, 3D modeling and volume calculation functions
• Up to 24 hours of rover operation

Core Specifications

GNSS Channels: 1698
RTK Accuracy, UHF: H ±8 mm + 1 ppm; V ±15 mm + 1 ppm
RTK Accuracy, Network: H ±8 mm + 0.5 ppm; V ±15 mm + 0.5 ppm
Static Accuracy: H ±2.5 mm + 0.5 ppm; V ±5 mm + 0.5 ppm
LiDAR Range: Up to 70 m
LiDAR Scanning Speed: 200,000 points/s
Contactless Measurement: 5 cm at 15 m
GNSS-Denied Positioning: 3–5 cm within 20 m radius
Color Cameras: 12 MP × 2
Visual Survey Cameras: 8 MP front + 2 MP bottom
Storage: 64 GB
Battery: Built-in battery + handgrip battery
Endurance: Up to 25 hours static; up to 24 hours rover; up to 3 hours LiDAR scanning

Applications

• Topographic and engineering surveying
• BIM and 3D data collection
• Construction and infrastructure projects
• Tunnel and underground surveying
• Forestry and complex terrain mapping
• Stockpile and earthwork volume measurement
• Visual surveying and AR stakeout
• GNSS-limited field measurement
