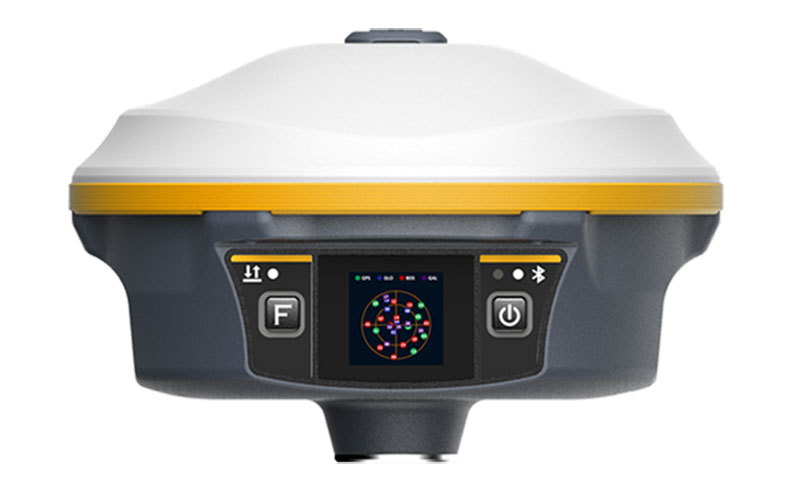

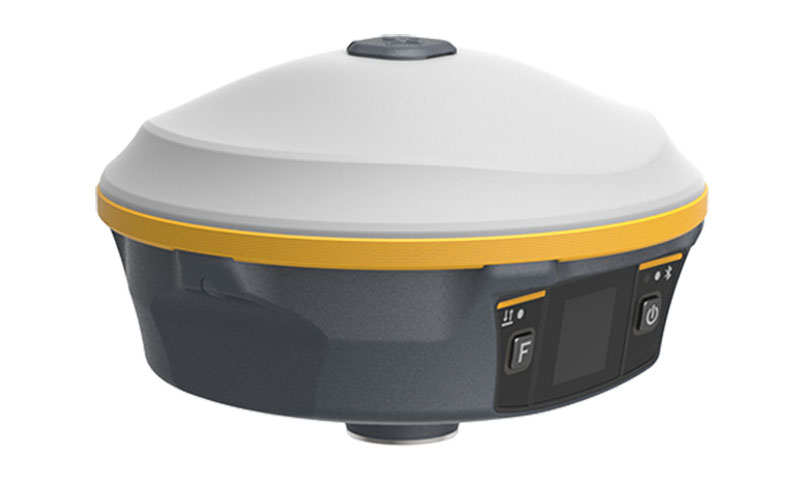

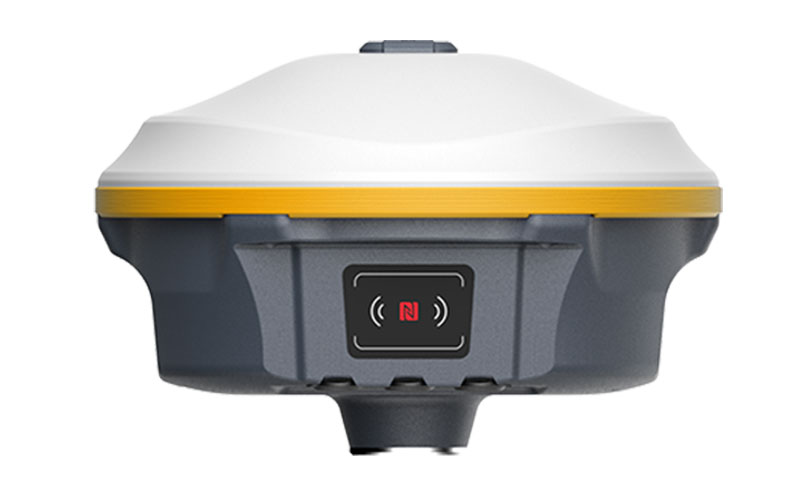

SOUTH Galaxy G5 GNSS RTK Receiver

The SOUTH Galaxy G5 is a multi-constellation GNSS RTK receiver designed for field surveying, positioning and stakeout work. It combines a 1760-channel GNSS engine, built-in IMU, internal UHF radio and color touchscreen in a rugged receiver. The G5 supports both UHF and network-based correction workflows and is designed for extended field operation. RTKSurvey.com supplies the SOUTH Galaxy G5 for professional surveying applications.

Key Features

• 1760-channel GNSS engine supporting multiple satellite constellations
• Built-in IMU with tilt compensation up to 60°
• Internal UHF radio with Farlink communication
• Typical Farlink communication range up to 15 km
• 1.3-inch color touchscreen
• Built-in 10,000 mAh rechargeable battery
• Up to 25 hours of static operation
• Supports NTRIP and multiple correction protocols
• IP68 protection and 2 m pole-drop resistance
• Web interface for receiver configuration and status monitoring

Core Specifications

GNSS Channels: 1760
RTK Accuracy: H 6 mm + 0.5 ppm RMS; V 10 mm + 1 ppm RMS
Static Accuracy: H 2.5 mm + 0.5 ppm RMS; V 5 mm + 0.5 ppm RMS
RTK Initialization: 2–8 seconds
IMU Tilt Angle: 0°–60°
UHF Frequency: 410–470 MHz
UHF Power: 1 W / 2 W / 3 W
UHF Range: Typically up to 15 km with Farlink
Battery: 10,000 mAh
Operating Time: Static 20–25 hours; Rover 16–20 hours
Weight: 1.35 kg with battery
Display: 1.3-inch color touchscreen
Internal Storage: 16 GB
Protection: IP68
Operating Temperature: -45°C to +65°C

Applications

The Galaxy G5 is suitable for topographic surveying, construction layout, boundary surveying, infrastructure projects, mapping and general RTK field operations.
