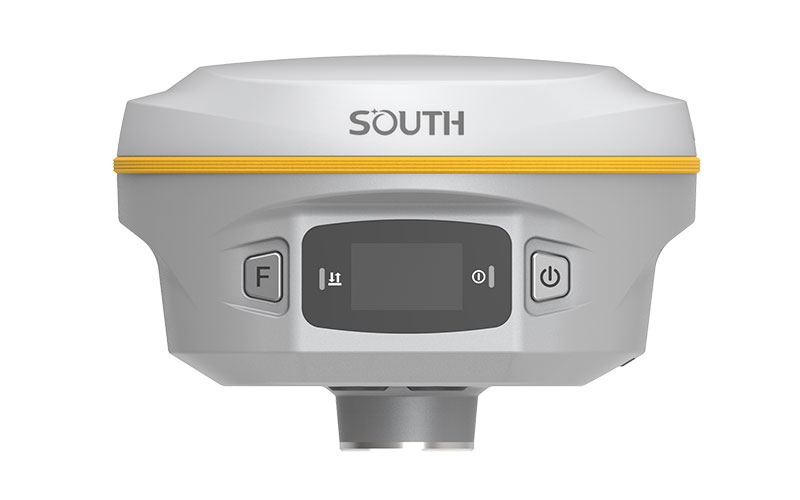

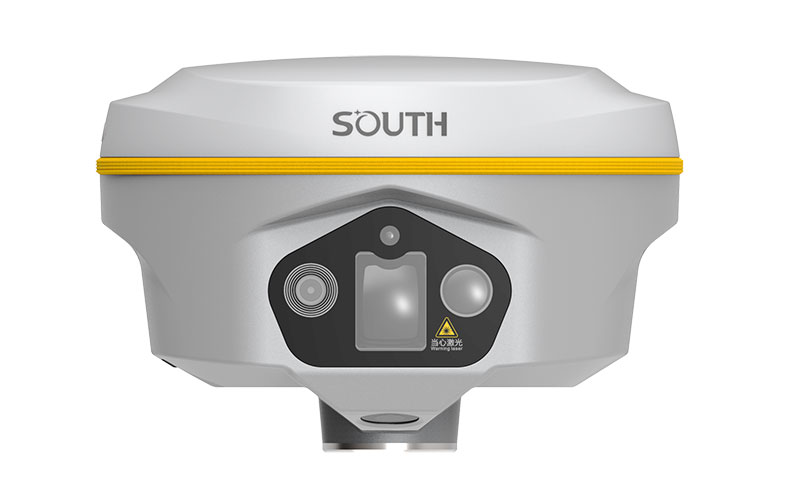

SOUTH INNO3 Laser GNSS RTK Receiver

The SOUTH INNO3 is a laser-assisted GNSS RTK receiver designed for non-contact measurement, visual surveying and advanced stakeout workflows. It combines 1698-channel GNSS positioning with a 400 Hz IMU, long-range green laser and three cameras. The laser can measure targets at a distance, while the visual system supports video-based measurement, AR stakeout and optional 3D modeling. RTKSurvey supplies the SOUTH INNO3 for surveying, construction and infrastructure applications.

Key Features

• 1698-channel GNSS receiver
• 400 Hz IMU with 120° tilt capability
• Green laser with up to 200 m range under optimal conditions
• 8 MP main camera with 72° FOV
• 8 MP laser-aiding telephoto camera
• Starlight-grade AR stakeout camera
• Laser measurement at up to 5 Hz
• Dual-engine positioning option for challenging RTK conditions
• Farlink 2.0 Pro radio
• Up to 20 hours rover operation
• IP68 protection

Core Specifications

GNSS Channels: 1698
RTK Accuracy: H 8 mm + 1 ppm RMS; V 15 mm + 1 ppm RMS
RTK NTRIP Accuracy: H 8 mm + 0.5 ppm RMS; V 15 mm + 0.5 ppm RMS
RTK Initialization: 2–8 seconds
IMU: 400 Hz
IMU Tilt Angle: Up to 120°
IMU Pitch/Roll Accuracy: 0.05°
IMU Heading Accuracy: 0.15°
Laser: Class 3R green laser
Laser Range: 150 m standard; up to 200 m under optimal conditions
Laser Measurement Rate: Up to 5 Hz
Laser Accuracy: 3–5 mm + 100 ppm for distances up to 100 m
Cameras: 8 MP main camera; 8 MP laser-aiding camera; starlight AR stakeout camera
UHF Frequency: 410–470 MHz
UHF Range: 8–15 km in ideal conditions
Battery: 6800 mAh
Operating Time: Up to 20 hours in rover mode
Weight: 977 g with battery
Internal Storage: 64 GB
Protection: IP68
Operating Temperature: -45°C to +75°C

Applications

The INNO3 is suitable for topographic surveying, construction and infrastructure measurement, non-contact point collection, AR stakeout, visual surveying, excavation documentation and 3D modeling workflows.
