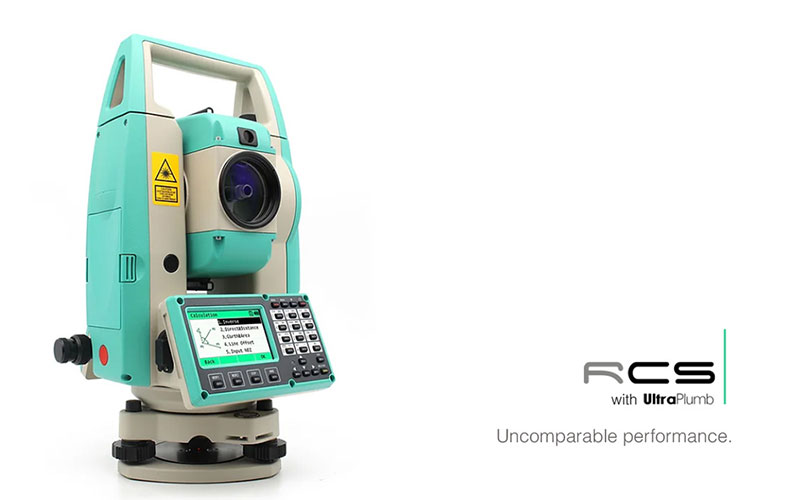

RUIDE RCS Comprehensive Total Station

The RUIDE RCS is a comprehensive total station designed for general surveying, construction layout and engineering measurement. With 2″ angle accuracy, up to 1500 m reflectorless measurement and a prism range of up to 5000 m, it provides a practical combination of precision and long-distance EDM performance.

The RCS features a color touchscreen, UltraPlumb, Guide Light and a dedicated quick-measure button. These functions are designed to simplify instrument setup and measurement while maintaining a familiar workflow for conventional total station surveying.

Key Features

• 2″ angle accuracy

• Up to 1500 m reflectorless measurement

• Up to 5000 m single-prism measurement

• UltraPlumb system

• Color touchscreen

• Guide Light

• Quick-measure button

• Dual-axis liquid-electric compensation

• Absolute encoding angle measurement

• Dual-sided operation

• USB 2.0 data interface

• Bluetooth communication

• Up to 12 hours of operation

Practical Measurement for Daily Surveying

The RCS focuses on the core functions surveyors need for everyday field work. Its long-range EDM supports both prism and reflectorless measurement, allowing users to select the appropriate measurement method according to the site conditions.

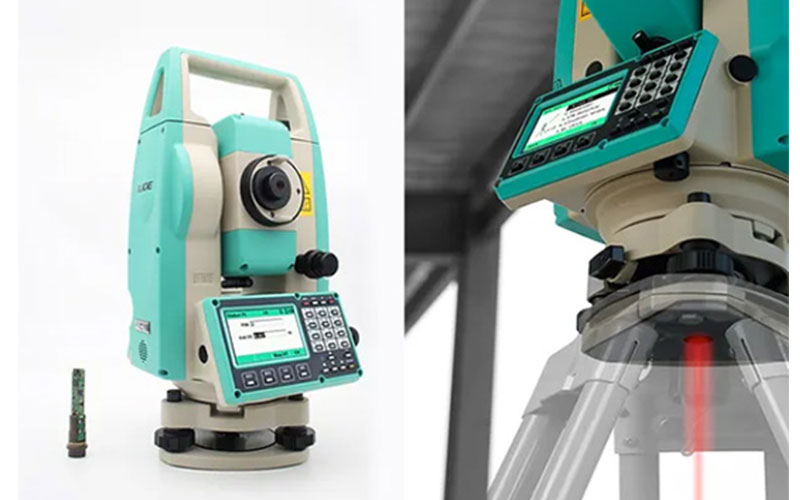

The integrated Guide Light provides visual assistance when positioning the instrument and target, while UltraPlumb helps with instrument setup and height measurement. A dedicated quick-measure button also provides fast access to distance measurement during repetitive field operations.

Why Choose the RUIDE RCS?

The RUIDE RCS is a practical choice for survey teams that need a capable conventional total station without the additional complexity of robotic tracking or camera-based surveying.

Its 2″ angular accuracy, 1500 m reflectorless range and 5000 m prism range cover a broad range of topographic, construction and engineering applications. The color touchscreen and Guide Light add convenience without changing the basic workflow familiar to conventional total station users.

For daily field measurement, construction layout and general engineering surveying, the RCS provides a balanced combination of measurement range, setup assistance and straightforward operation.

Core Specifications

• Angle Accuracy: 2″

• Angle Measurement: Absolute encoding

• Reflectorless Range: Up to 1500 m

• Single Prism Range: Up to 5000 m

• Prism Distance Accuracy: ±(2 mm + 2 ppm × D)

• Reflectorless Accuracy: ±(3 mm + 2 ppm × D)

• Measurement Time: Fine 0.3 s; Normal 0.2 s

• Telescope Magnification: 30×

• Compensation: Dual-axis liquid-electric, 6′ range

• Display: Graphic color touchscreen

• Plummet: UltraPlumb

• Target Assistance: Guide Light

• Data Interface: USB 2.0

• Wireless: Bluetooth

• Internal Memory: Up to 16,000 points

• Battery: 7.4 V, 3000 mAh lithium-ion

• Working Duration: Up to 12 hours

• Protection: IP65

• Operating Temperature: -20°C to +50°C

Applications

• Land surveying

• Topographic surveying

• Construction surveying

• Building layout

• Construction stakeout

• Road and infrastructure projects

• Engineering measurement

• Reflectorless surveying

• Coordinate measurement

• General field surveying
