ComNav N5 GNSS Receiver
The ComNav N5 is a full-constellation GNSS receiver that combines RTK positioning with an integrated IMU, built-in OLED display and long-duration battery system. Its field-oriented design provides direct access to essential receiver information while supporting UHF and network-based correction workflows. The N5 is suited to survey teams that need a rugged GNSS receiver for extended daily operation. RTKSurvey.com offers the ComNav N5 for a range of professional surveying tasks.
Key Features
• 1198-channel multi-constellation GNSS tracking

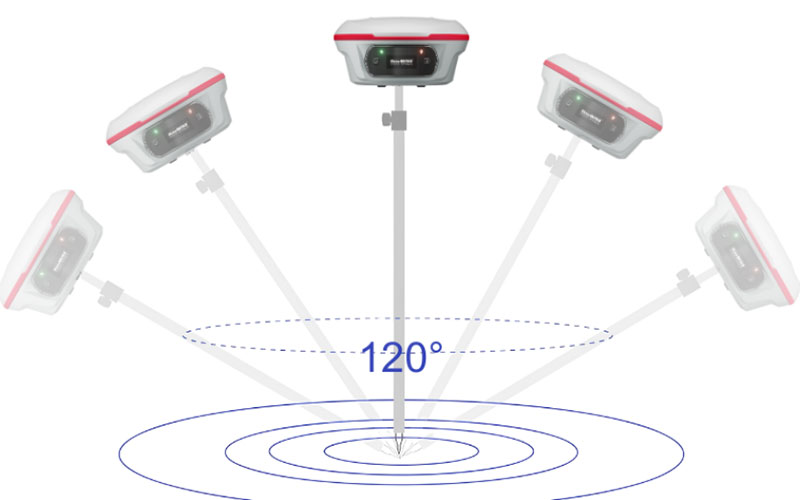

• Integrated calibration-free IMU for up to 120° tilt survey
• 2.5 cm tilt survey accuracy
• Sunlight-readable OLED display
• Enhanced UHF with up to 15 km working range
• Wi-Fi and 4G connectivity
• Up to 25 hours typical operating time
• IP67 protection and rugged field housing
• Web-based interface for receiver management
Core Specifications
GNSS Channels: 1198
RTK Accuracy: H 8 mm + 1 ppm RMS; V 15 mm + 1 ppm RMS
Static Accuracy: H 2.5 mm + 0.5 ppm RMS; V 5 mm + 0.5 ppm RMS
Tilt Survey: Up to 120°, 2.5 cm accuracy
UHF Frequency: 410–470 MHz
UHF Transmit Power: 0.5 W / 1 W / 2 W adjustable
UHF Working Range: 3–15 km
Battery: 2 × 3400 mAh
Typical Operating Time: Up to 25 hours
Weight: 1.2 kg with two batteries
Memory: 8 GB
Display: OLED
Protection: IP67
Operating Temperature: -40°C to +65°C
Applications
The ComNav N5 is suitable for topographic surveys, construction surveying, land measurement, road and utility projects, mapping and other RTK-based field operations.
