ComNav T300 Plus GNSS Receiver
The ComNav T300 Plus is a compact multi-frequency GNSS receiver built for flexible RTK surveying workflows. It supports full-constellation tracking, integrated tilt compensation and multiple correction-data connections, including UHF and 4G. Its relatively light 0.95 kg configuration and straightforward field workflow make it suitable for survey crews working across construction, mapping and infrastructure projects. RTKSurvey.com supplies the ComNav T300 Plus for professional GNSS surveying.
Key Features

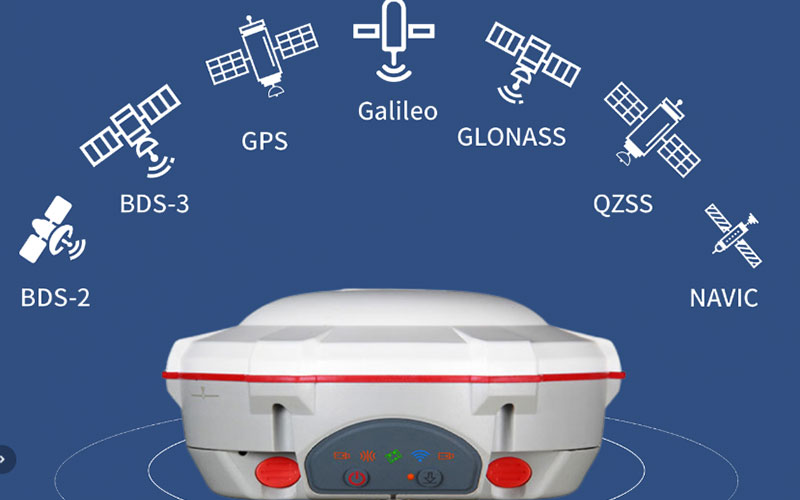

• 965-channel GNSS receiver with multi-constellation tracking

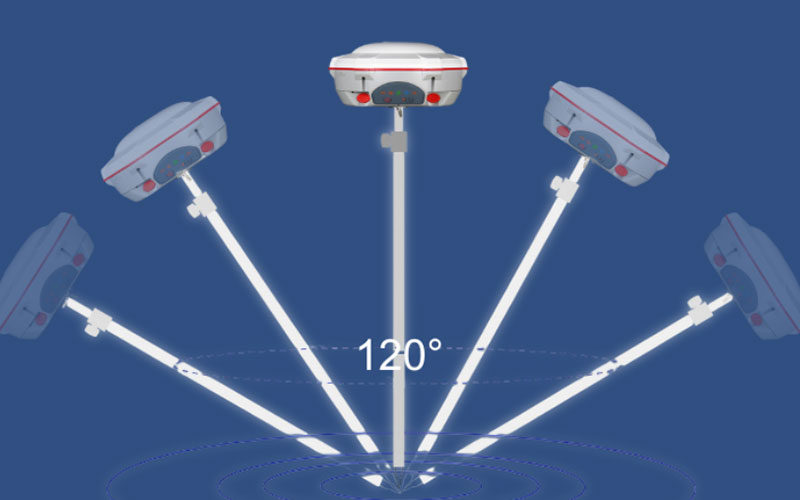

• Calibration-free IMU with up to 120° tilt compensation
• 2.5 cm tilt survey accuracy
• UHF, Wi-Fi and 4G connectivity
• Supports NTRIP and point-to-point correction workflows
• 0.95 kg weight with two batteries
• Up to 10 hours typical operating time
• IP67 protection
• Compatible with Windows and Android through Bluetooth
Core Specifications
GNSS Channels: 965
RTK Accuracy: H 8 mm + 1 ppm RMS; V 15 mm + 1 ppm RMS
Static Accuracy: H 2.5 mm + 0.5 ppm RMS; V 5 mm + 0.5 ppm RMS
Tilt Compensation: Up to 120°, 2.5 cm accuracy
UHF Frequency: 410–470 MHz
UHF Transmit Power: 0.5–2 W adjustable
UHF Working Range: 1–5 km
Battery: 2 × 2000 mAh
Typical Operating Time: Up to 10 hours
Weight: 0.95 kg with two batteries
Memory: 8 GB
Protection: IP67
Operating Temperature: -40°C to +65°C
Applications
The T300 Plus can be used for topographic surveying, construction layout, infrastructure measurement, mapping, GIS fieldwork and other RTK applications where tilt compensation and flexible correction connectivity are useful.
